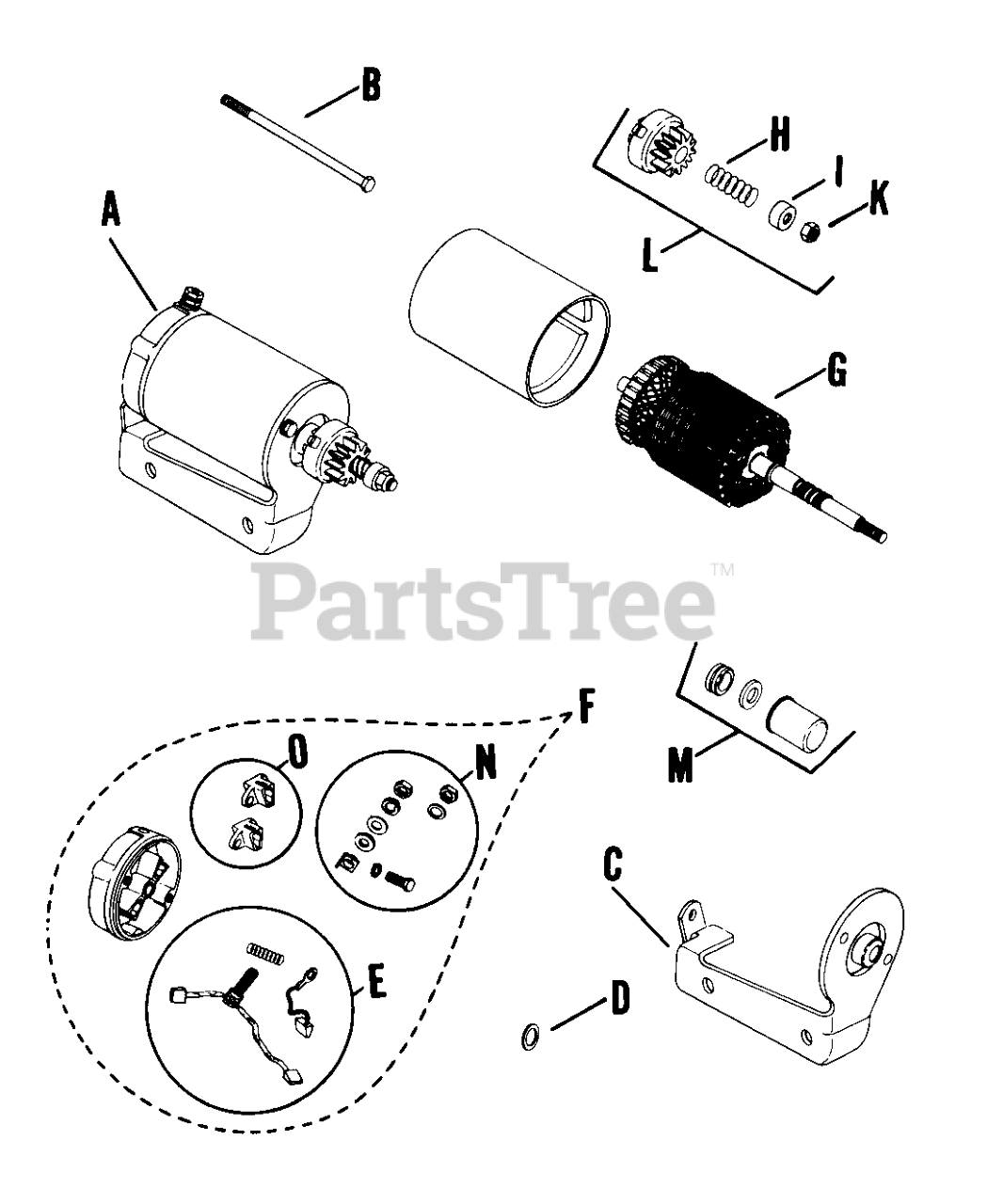

K241-46640 - Kohler K-Series Engine, Made for Gravely, 10hp, 7.5kW Electric Start, Bendix Drive (Cont.) 0209010381 Parts Diagram

K-Series Engine, Made for Gravely, 10hp, 7.5kW

Electric Start, Bendix Drive (Cont.) 0209010381 Parts Diagram

  • Title

A

Kohler A-237510

STARTER - USE A-237534
(Superseded to A-237534)

Note: Includes B thru O. Replaced by A-237534.

$363.99

$

Usually ships in 2-5 days

0

B

Kohler 237358

BOLT - USE 237758
(Superseded to 237758-S)

$

$

Not available

C

Kohler 237362-S

DISCONTINUED

$

$

Not available

D

Kohler 237363

WASHER - USE 47 468 02
(Superseded to 47 468 02-S)

$

$

Not available

E

Kohler 237367

KIT - USE 277613
(Superseded to 48 755 15)

$

$

Not available

F

Kohler 237368

CAP - USE 47 755 12
(Superseded to 48 227 04)

Note: Includes E, N & O

$

$

Not available

G

Kohler 237364

ARMATURE - USE 47 170 01
(Superseded to 47 170 01-S)

$487.99

$

Usually ships in 2-5 days

0

H

Kohler 237357

SPRING - USE 45 089 03
(Superseded to 45 089 03-S)

$

$

Not available

K

Kohler X-101-4

DISCONTINUED

$

$

Not available

L

Kohler 237370

KIT DRIVE - USE 47 755 07
(Superseded to 47 755 07)

Note: Includes H, J & K

$

$

Not available

M

Kohler 237555

KIT - USE 47 755 13
(Superseded to 47 755 13)

$

$

Not available

N

Kohler 237761

DISCONTINUED

$

$

Not available

O

Kohler 237762

DISCONTINUED

$

$

Not available
