K181-30317 - Kohler K-Series Engine, Made for Polaris, 8hp, 6kW Retractable Starter (Cont.) 23-2-213 TP-2045-B Parts Diagram

K-Series Engine, Made for Polaris, 8hp, 6kW

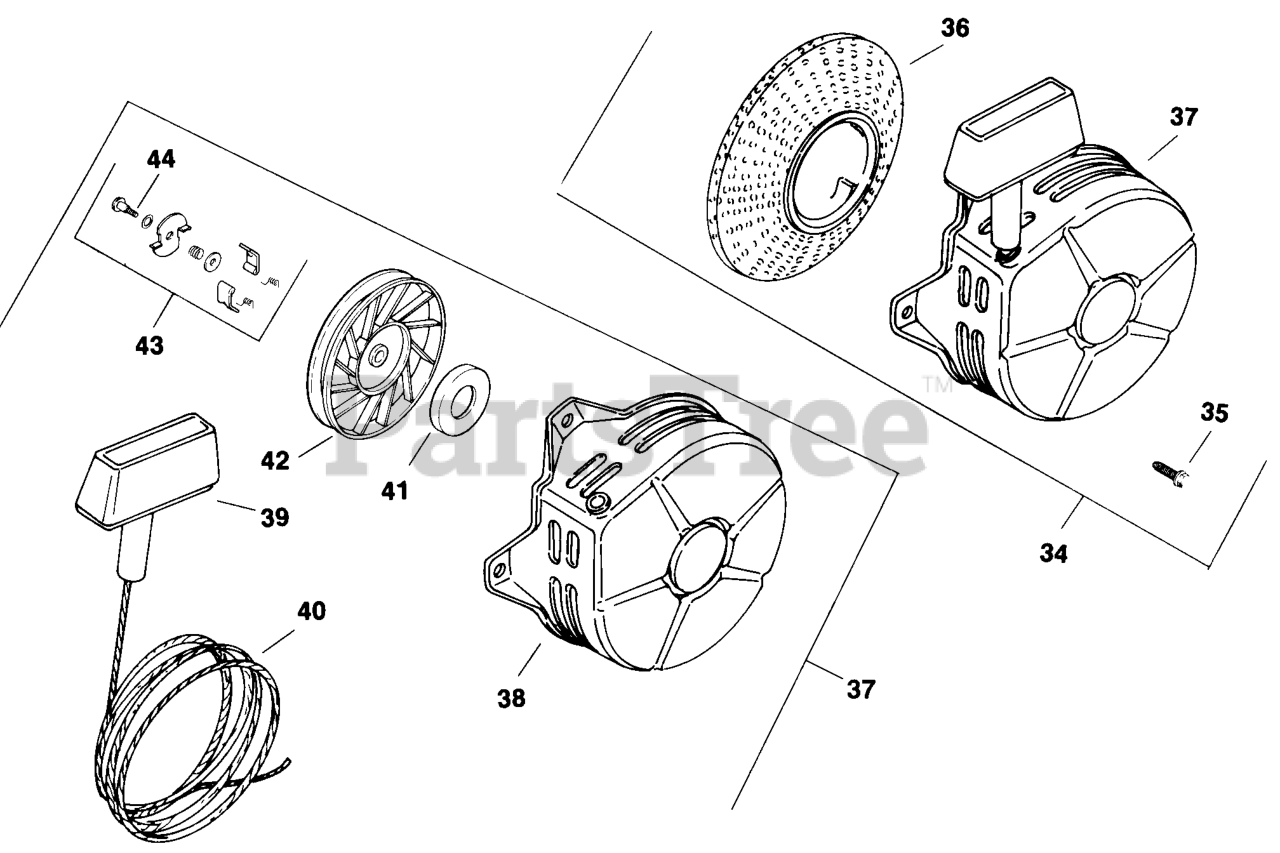

Retractable Starter (Cont.) 23-2-213 TP-2045-B Parts Diagram

  • Title
34

Kohler 41 755 26-S

KIT, STARTER W/CUP - DISCONTINUED

Note: Includes 35-37.

$

$

Not available

35

Kohler 41 086 06-S

SCREW, FLG HD 10-24X1/4"

$3.49

$

Usually ships in 2-5 days

0

36

Kohler 41 071 07-S

CUP W/SCREEN

$54.99

$

Usually ships in 2-5 days

0

37

Kohler 41 165 06-S

STARTER, RECOIL - DISCONTINUED

Note: Includes 38-44

$

$

Not available

38

$103.99

$

Usually ships in 2-5 days

0

39

Kohler 41 166 01

HANDLE - USE 234452
(Superseded to 234452)

$15.99

$

In Stock, Qty 10

0

40

Kohler 15 160 01-S

ROPE - DISCONTINUED

$

$

Not available

41

Kohler 12 089 06-S

SPRING & KEEPER - (#DSC)

$

$

Not available

42

Kohler 41 093 10-S

PULLEY - (#DSC)

$

$

Not available

43

Kohler 41 757 07-S

KIT, DOG REPAIR - (#DSC)

$

$

Not available

44

Kohler 41 086 09-S

SCREW - DISCONTINUED

$

$

Not available
