K181-301058 - Kohler K-Series Engine, Made for Gravely, 8hp, 6kW Carburetor TP-2201-C Parts Diagram

K-Series Engine, Made for Gravely, 8hp, 6kW

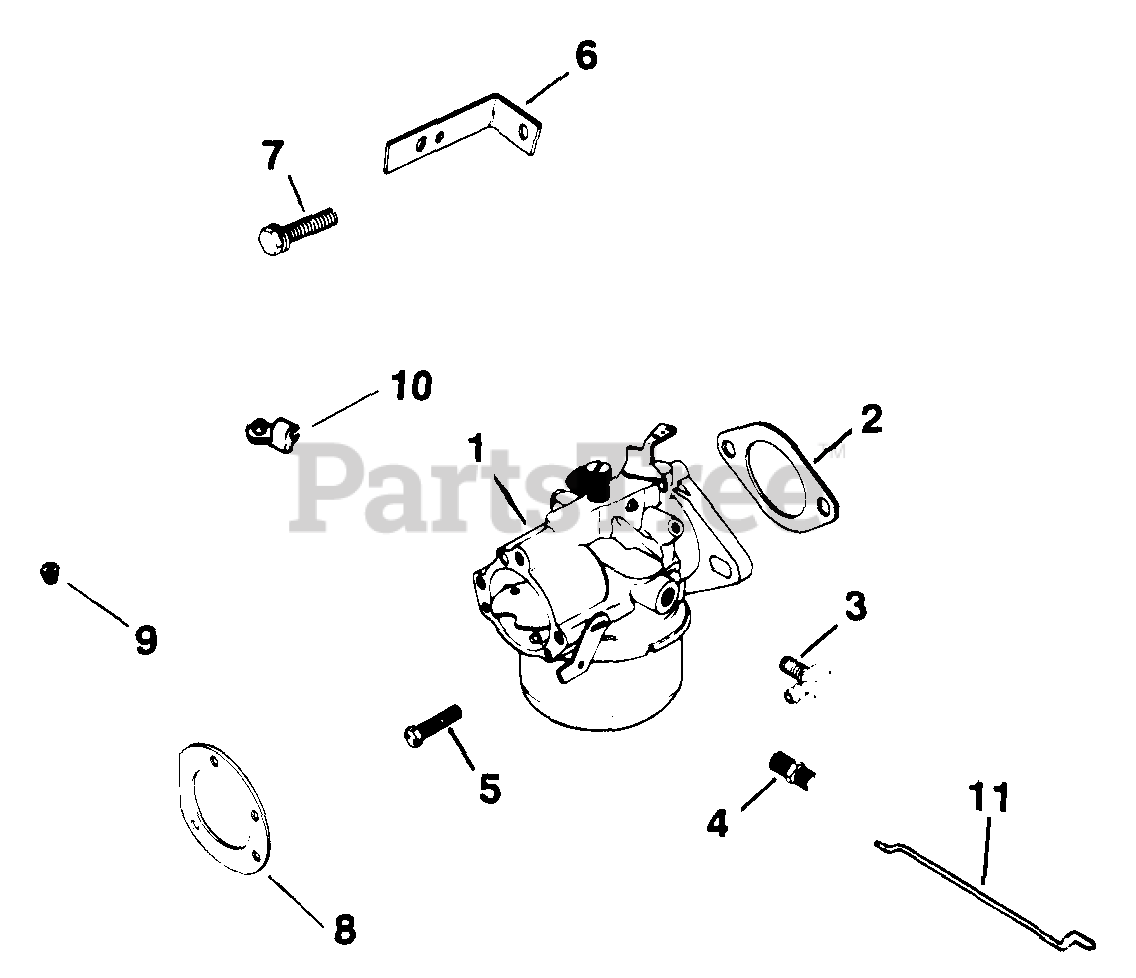

Carburetor TP-2201-C Parts Diagram

  • Title

1

Kohler 41 053 18

CARBURETOR - USE 41 853 07
(Superseded to 41 853 07)

Note: Before Serial No. 1824400012

$

$

Not available

1

Kohler 41 853 04

CARBURETOR - USE 41 853 07
(Superseded to 41 853 07)

Note: After Serial No. 1824400002; Includes 2,8,10,11, Carburetor assembly 41 053 24 or 41 053 26

$

$

Not available

1

Kohler 41 853 07-S

KIT,CARBURETOR - DISCONTINUED

Note: Includes 2,8,9, Carburetor assembly 41 053 27

$

$

Not available

2

Kohler 210223-S

GASKET

$8.99

$

Usually ships in 2-5 days

0

3

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

Note: For 1/4" I.D. rubber hose

$14.99

$

In Stock, only 1 left!

0

5

Kohler X-140-1-S

SCREW-DISCONTINUED

$

$

Not available

6

Kohler 41 126 37-S

BRACKET, CHOKE - (#DSC)

$

$

Not available

7

Kohler X-132-5-S

SCREW, SEMS 1/4-20X5/8" USE 25 086 539-S
(Superseded to 25 086 539-S)

$3.49

$

In Stock, only 1 left!

0

8

Kohler 41 041 11-S

GASKET

$3.49

$

In Stock, Qty 10

0

9

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 18

0

10

Kohler 25 158 09

BUSHING - USE 25 158 11
(Superseded to 25 158 11)

$5.99

$

In Stock, only 2 left!

0
