K181-301016 - Kohler K-Series Engine, Made for Magna American Corp., 8hp, 6kW Governor 02070039181 Parts Diagram

K-Series Engine, Made for Magna American Corp., 8hp, 6kW

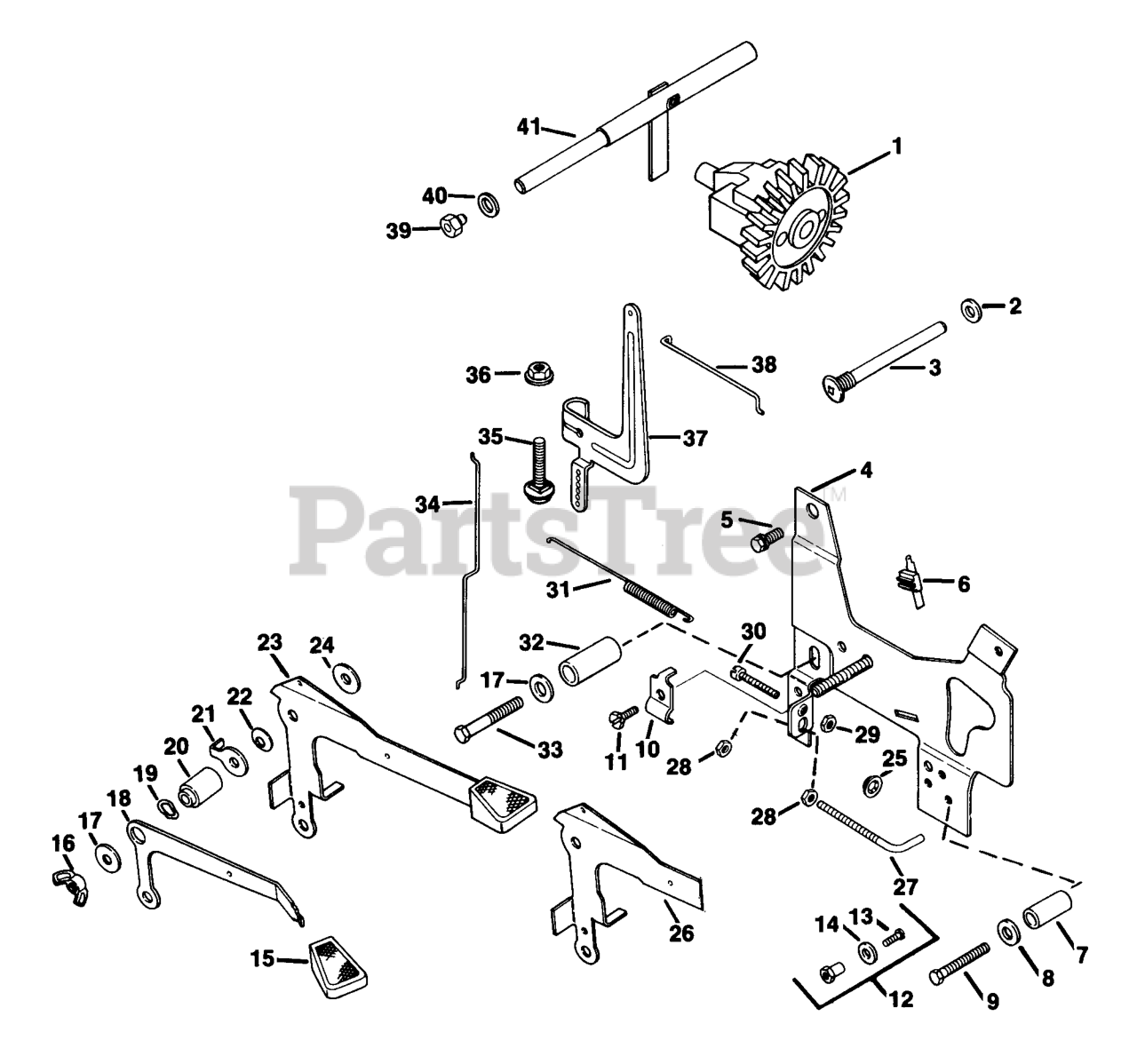

Governor 02070039181 Parts Diagram

  • Title

1

Kohler A-235743-S

KIT, GOVERNOR GEAR

$79.99

$

Usually ships in 2-5 days

0

2

Kohler X-25-12-S

WASHER

$3.49

$

In Stock, only 2 left!

0

3

Kohler 231355-S

PIN

$10.99

$

Usually ships in 2-5 days

0

4

Kohler 41 126 20

BRACKET - USE 41 126 34
(Superseded to 41 755 31-S)

$

$

Not available

5

Kohler X-132-6-S

SCREW, SEMS 1/4-20-1/2"

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 41 099 05

SWITCH - USE 25 099 12
(Superseded to 25 452 13-S)

$14.99

$

Usually ships in 2-5 days

0

7

Kohler 41 112 06

SPACER - USE 41 112 09
(Superseded to 41 112 09-S)

$3.99

$

Usually ships in 2-5 days

0

8

Kohler X-25-36

WASHER - USE X-25-92
(Superseded to X-25-92-S)

$2.49

$

In Stock, only 2 left!

0

9

Kohler 41 086 16-S

SCREW, IND HD 10-24X1 3/8"

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 235778-S

CLAMP

$10.99

$

Usually ships in 2-5 days

0

11

Kohler X-97-3-S

SCREW, IND SLT HD 10-24X3/8" USE 25 086 79-S
(Superseded to 25 086 79-S)

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 48 755 10-S

KIT, CLAMP

Note: Includes 13,14

$22.99

$

Usually ships in 2-5 days

0

13

Kohler X-51-8

SCREW - USE 41 086 20
(Superseded to 41 086 20-S)

$3.49

$

Usually ships in 2-5 days

0

14

Kohler X-25-102-S

WASHER, FLAT 1/4"

$2.49

$

In Stock, Qty 5

0

15

Kohler 41 341 03-S

KNOB - DISCONTINUED

$

$

Not available

16

Kohler 41 100 03

NUT - USE X-101-8
(Superseded to X-101-8)

$2.49

$

In Stock, only 1 left!

0

17

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

18

Kohler 41 090 06-S

LEVER

$9.99

$

Usually ships in 2-5 days

0

19

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

20

Kohler 41 112 04-S

SPACER

$5.49

$

In Stock, only 2 left!

0

21

Kohler 52 448 01

TAB - USE 52 448 02
(Superseded to 52 448 02)

$2.49

$

In Stock, only 2 left!

0

22

Kohler 41 468 04-S

WASHER, SPRING 7/16" - DISCONTINUED

$

$

Not available

24

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

26

Kohler 41 090 09

LEVER - USE 41 090 18
(Superseded to 41 090 18-S)

$

$

Not available

29

Kohler X-72-4-S

NUT, MACH SCREW #8-32 GRD 2 USE 25 100 16-S
(Superseded to 25 100 16-S)

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 41 086 12-S

SCREW, SLT FLS 8-32X1"

$3.99

$

Usually ships in 2-5 days

0

31

Kohler 41 089 10

KIT - USE 41 755 23
(Superseded to 41 755 23-S)

$

$

Not available

32

Kohler 41 112 05

SPACER - USE 41 112 08
(Superseded to 41 112 08-S)

$

$

Not available

33

Kohler 41 086 17-S

SCREW

$4.49

$

Usually ships in 2-5 days

0

34

Kohler 41 411 02-S

ROD

$3.99

$

Usually ships in 2-5 days

0

35

Kohler 52 211 04-S

BOLT, RD HD SQ NCK 1/4-20X1"

$4.99

$

Usually ships in 2-5 days

0

36

Kohler X-799-1-S

PALNUT, 1/4-20

$3.99

$

Usually ships in 2-5 days

0

37

Kohler 41 077 01

KIT - USE 41 755 23
(Superseded to 41 755 23-S)

$

$

Not available

38

Kohler 230078-S

LINKAGE

$22.99

$

In Stock, only 2 left!

0

39

Kohler 41 158 02-S

BUSHING

$11.99

$

Usually ships in 2-5 days

0

40

Kohler X-25-58-S

WASHER

$3.99

$

Usually ships in 2-5 days

0

41

Kohler 230540-S

KIT,SHAFT

$116.99

$

Usually ships in 2-5 days

0
