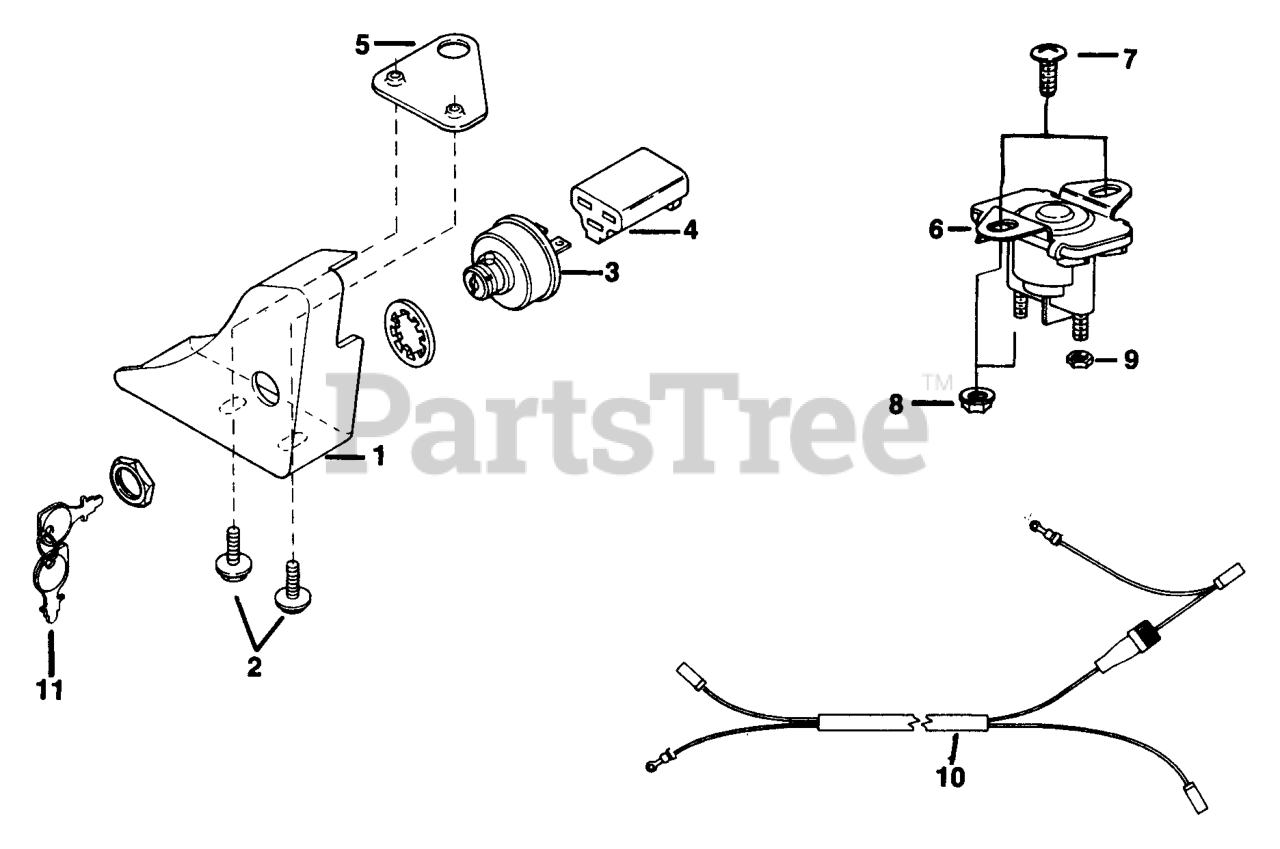

K181-301001 - Kohler K-Series Engine, Basic Version, 8hp, 6kW Instrument Panel 0207004754 Parts Diagram

K-Series Engine, Basic Version, 8hp, 6kW

Instrument Panel 0207004754 Parts Diagram

  • Title

1

Kohler 41 178 04-S

PANEL

$59.99

$

Usually ships in 2-5 days

0

2

Kohler X-806-1-S

SCREW

$3.49

$

In Stock, only 3 left!

0

3

Kohler 52 099 02-S

SWITCH, ASSEMBLY, KEY

$100.99

$

Usually ships in 2-5 days

0

4

Kohler 236743

DISCONTINUED

$

$

Not available

5

Kohler 41 126 27-S

BRACKET

$22.99

$

Usually ships in 2-5 days

0

6

Kohler 52 435 01

SOLENOD - USE 25 435 01
(Superseded to 25 435 01)

$76.99

$

In Stock, only 2 left!

0

7

Kohler 52 086 10-S

SCREW

$

$

Not available

8

Kohler X-799-1-S

PALNUT, 1/4-20

$3.99

$

Usually ships in 2-5 days

0

9

Kohler X-81-1-S

NUT, 1/4-20 GRADE 2 USE 25 100 20-S
(Superseded to 25 100 20-S)

$3.49

$

In Stock, only 1 left!

0

10

Kohler 41 176 01

HARNESS - DISCONTINUED

$

$

Not available

11

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.99

$

In Stock, only 1 left!

0

4151819-S

Kohler 41 518 19-S

LEAD

Note: 4" - 6 gauge - insulated barrel eyelet. NOT ILLUSTRATED.

$54.99

$

Usually ships in 2-5 days

0

4151820-S

Kohler 41 518 20-S

LEAD

Note: 6" - 16 gauge - uninsulated push on tab - insulated push on tab. NOT ILLUSTRATED.

$23.99

$

Usually ships in 2-5 days

0
