K181-301001 - Kohler K-Series Engine, Basic Version, 8hp, 6kW Crankcase 02070019250 Parts Diagram

K-Series Engine, Basic Version, 8hp, 6kW

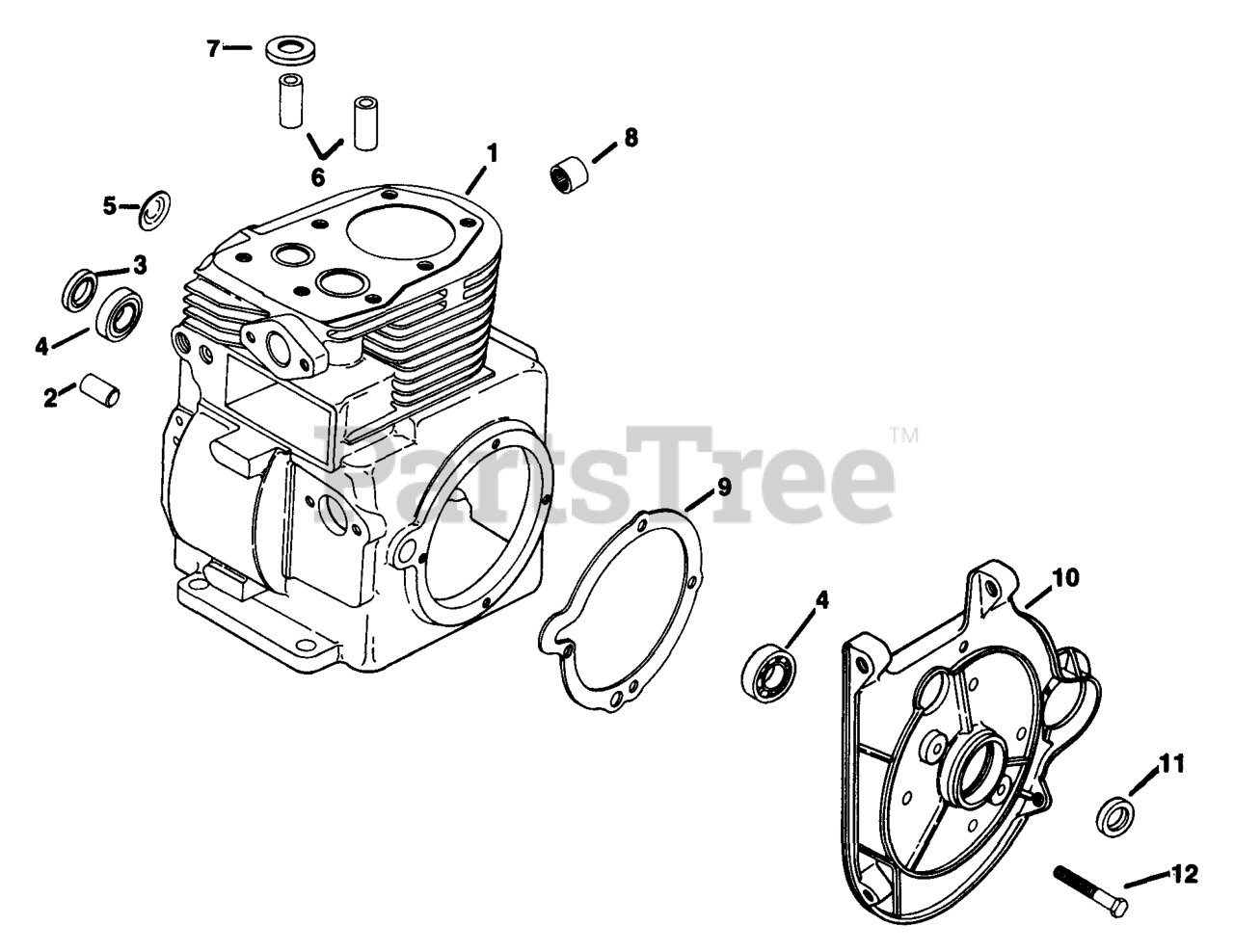

Crankcase 02070019250 Parts Diagram

  • Title

1

Cylinder Block

Note: Service with a SHORT BLOCK or MINIBLOCK. Refer to K181 Selection Guide TP-2178.

$

$

Not available

2

Kohler 230125-S

SHAFT

$41.99

$

Usually ships in 2-5 days

0

3

Kohler X-583-2-S

SEAL

$11.99

$

In Stock, only 1 left!

0

4

Kohler 231625-S

BEARING - DISCONTINUED

$70.99

$

In Stock, only 1 left!

0

5

Kohler X-230-11-S

PLUG, WELCH EXPANSION

$2.99

$

In Stock, only 2 left!

0

6

Kohler 230007-S

GUIDE

$25.99

$

Usually ships in 2-5 days

0

7

Kohler 230170-S

INSERT - DISCONTINUED

$

$

Not available

8

Kohler 234866-S

BEARING

$9.99

$

Usually ships in 2-5 days

0

9

Kohler 230071-S

GASKET

$11.99

$

Usually ships in 2-5 days

0

10

Kohler 41 156 05-S

PLATE - DISCONTINUED

$

$

Not available

11

Kohler X-583-1-S

SEAL

$11.99

$

In Stock, only 2 left!

0

12

Kohler X-176-1-S

SCREW

$3.99

$

Usually ships in 2-5 days

0
