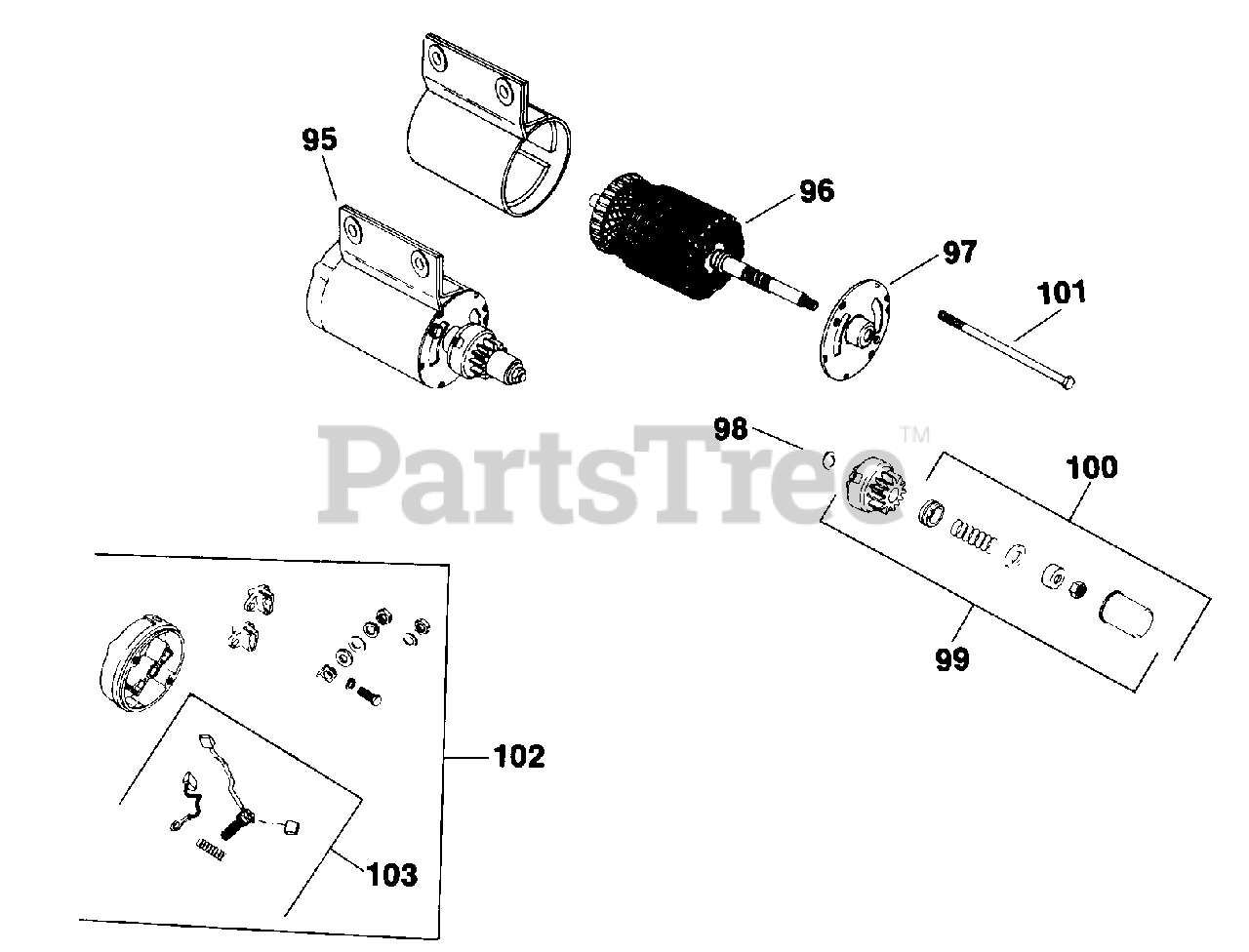

K181-13814 - Kohler K-Series Engine, Basic Version, 8hp, 6kW Electric Start (Cont.) 11-2-138 TP-2045-B Parts Diagram

K-Series Engine, Basic Version, 8hp, 6kW

Electric Start (Cont.) 11-2-138 TP-2045-B Parts Diagram

  • Title

95

Kohler 41 098 01

STARTER - USE 41 098 03
(Superseded to 41 098 08)

Note: United Technologies number AMBAC 05996-29-M030SM. Includes 96-103. After Serial No. 3371012, but before Serial No. 14125295, replace individual components with starter assembly breakdown 41 098 01, for complete starter replacement, use 41 098 03.

$

$

Not available

96

Kohler 47 170 01-S

ARMATURE

$487.99

$

Usually ships in 2-5 days

0

97

Kohler 237650

CAP - USE 45 081 05
(Superseded to 45 081 05-S)

$124.99

$

Usually ships in 2-5 days

0

98

Kohler 47 468 02-S

WASHER - DISCONTINUED

$

$

Not available

99

Kohler 41 755 15

DRIVE KIT - USE 41 755 34
(Superseded to 41 755 34)

Note: Includes 100

$296.99

$

Usually ships in 2-5 days

0

100

Kohler 47 755 13

NO DESCRIPTION AVAILABLE - DISCONTINUED

$

$

Not available

101

Kohler 237649-S

BOLT

$29.99

$

Usually ships in 2-5 days

0

102

Kohler 48 227 04

CAP - DISCONTINUED

Note: Includes 103

$

$

Not available

103

Kohler 48 755 15

KIT - USE 52 755 15
(Superseded to 52 755 15)

Note: Replaced by 52 755 15

$

$

Not available
