K 970 Ring - Husqvarna Cut-Off Saw (2011-12) FUEL TANK & HANDLE Parts Diagram

Cut-Off Saw

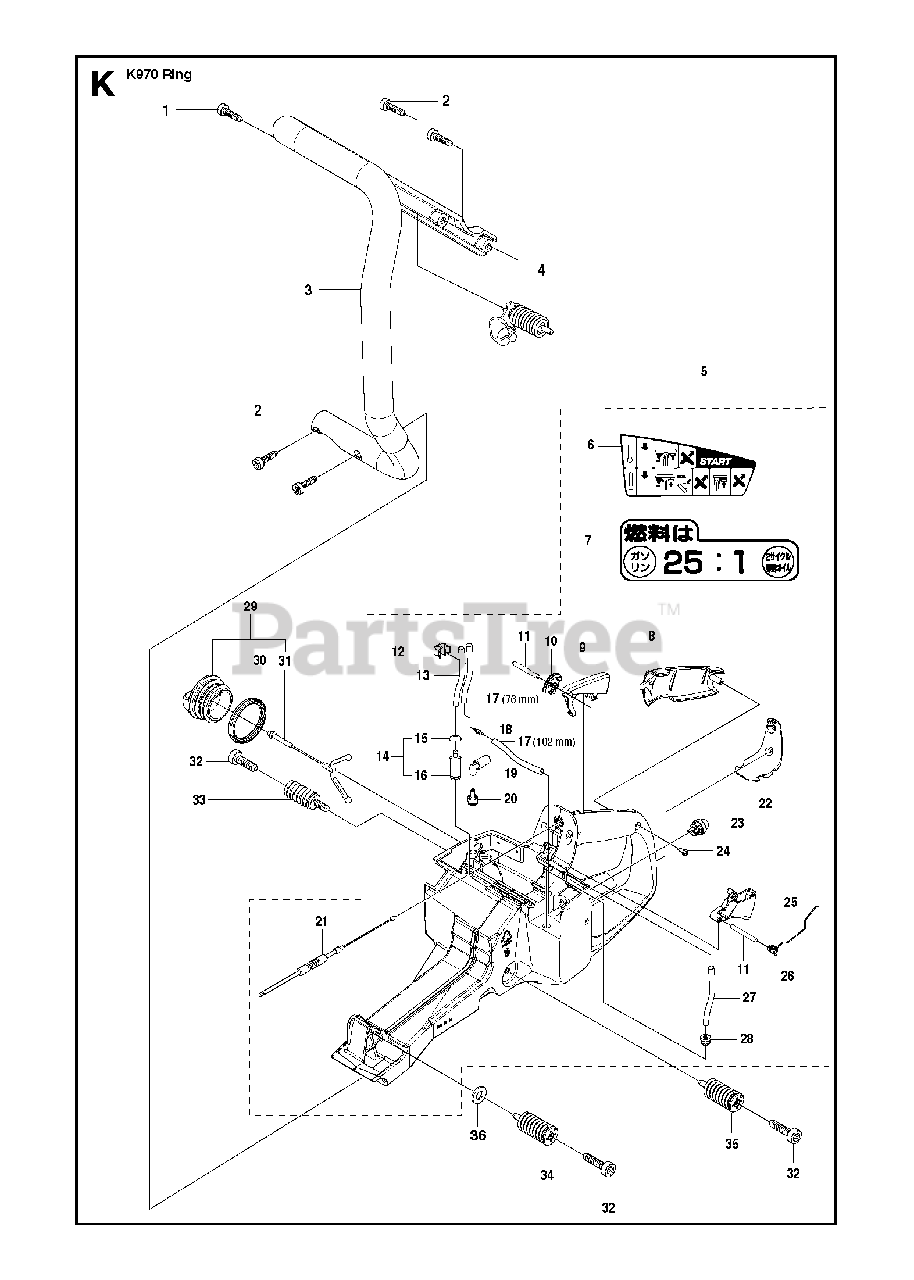

FUEL TANK & HANDLE Parts Diagram

  • Title

1

Husqvarna 544 06 12-01

SCREW ITXSCM

$4.99

$

In Stock, Qty 6

0

2

Husqvarna 503 21 54-20

SCREW ITXSCT

$4.99

$

In Stock, only 3 left!

0

3

Husqvarna Construction 523 02 75-01

HANDLE

$51.63

$

Usually ships in 3-10 days

0

4

Husqvarna 505 42 45-02

ANTIVIBRATION ELEMENT

$39.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574 50 58-04

FUEL TANK ASSYIncl. 6 - 28
(Superseded to 581922113)

$

$

Not available

6

Husqvarna 525 57 20-01

DECAL

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 506 31 30-01

LABEL

$19.99

$

Usually ships in 3-10 days

0

8

Husqvarna 537 20 56-01

COVER

$12.99

$

Usually ships in 3-10 days

0

9

Husqvarna 510 25 52-01

THROTTLE LOCKOUT

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 537 20 85-01

CABLE LEVER

$6.99

$

In Stock, only 3 left!

0

11

Husqvarna 720 12 40-20

PARALLEL PIN
(Superseded to 720182520)

$2.99

$

In Stock, Qty 18

0

12

Husqvarna 574 44 42-01

CLIP

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 544 32 50-02

FUEL HOSE300 mm
(Superseded to 591375201)

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506 26 41-11

FUEL FILTERIncl. 15 - 16

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506 27 11-01

HOSE CLAMP

$6.49

$

In Stock, only 3 left!

0

16

Husqvarna 506 26 41-01

FUEL FILTER

$13.99

$

In Stock, Qty 10

0

17

Husqvarna 537 04 24-04

FUEL HOSE190 mm
(Superseded to 581756114)

$7.99

$

In Stock, only 2 left!

0

18

Husqvarna 575 52 65-01

CHECK VALVE

$22.99

$

Usually ships in 3-10 days

0

19

Husqvarna 522 79 96-01

HOLDER ASSY
(Superseded to 576900401)

$45.99

$

In Stock, only 2 left!

0

20

Husqvarna 537 35 95-01

TANK VENT ASSY
(Superseded to 501152901)

$17.99

$

In Stock, Qty 6

0

21

Husqvarna 576 49 04-01

THROTTLE CABLE ASSY

$59.99

$

In Stock, only 1 left!

0

22

Husqvarna 502 47 16-01

GROUND SUPPORT

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 540 05 49-02

AIR PURGE

$21.99

$

Usually ships in 3-10 days

0

24

Husqvarna 525 88 74-02

SCREW CITXPANT

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 502 47 18-01

THROTTLE CONTROL

$9.49

$

In Stock, only 4 left!

0

26

Husqvarna 537 20 98-01

SPRING

$7.49

$

In Stock, Qty 9

0

27

Husqvarna 544 32 49-30

FUEL HOSE70 mm
(Superseded to 581756130)

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 503 73 58-01

BUSHING
(Superseded to 580457501)

$7.99

$

In Stock, Qty 20+

0

29

Husqvarna 506 25 59-03

TANK CAP ASSYIncl. 30 - 31
(Superseded to 506255906)

$17.99

$

In Stock, only 3 left!

0

30

Husqvarna 506 29 21-01

GASKET

$9.49

$

In Stock, only 2 left!

0

31

Husqvarna 503 57 89-01

HOLDER

$9.99

$

In Stock, Qty 15

0

32

Husqvarna 544 06 12-01

SCREW ITXSCM

$4.99

$

In Stock, Qty 6

0

33

Husqvarna 537 21 03-09

ANTIVIBRATION ELEMENT

$21.99

$

In Stock, only 1 left!

0

34

Husqvarna 537 21 03-10

ANTIVIBRATION ELEMENT

$37.99

$

In Stock, only 3 left!

0

35

Husqvarna 537 21 03-05

ANTIVIBRATION ELEMENT

$36.99

$

In Stock, only 2 left!

0

36

Husqvarna 503 23 00-80

WASHER

$4.99

$

Usually ships in 3-10 days

0
