K 970 III Ring - Husqvarna Cut-Off Saw (2017-03) CRANKCASE Parts Diagram

Cut-Off Saw

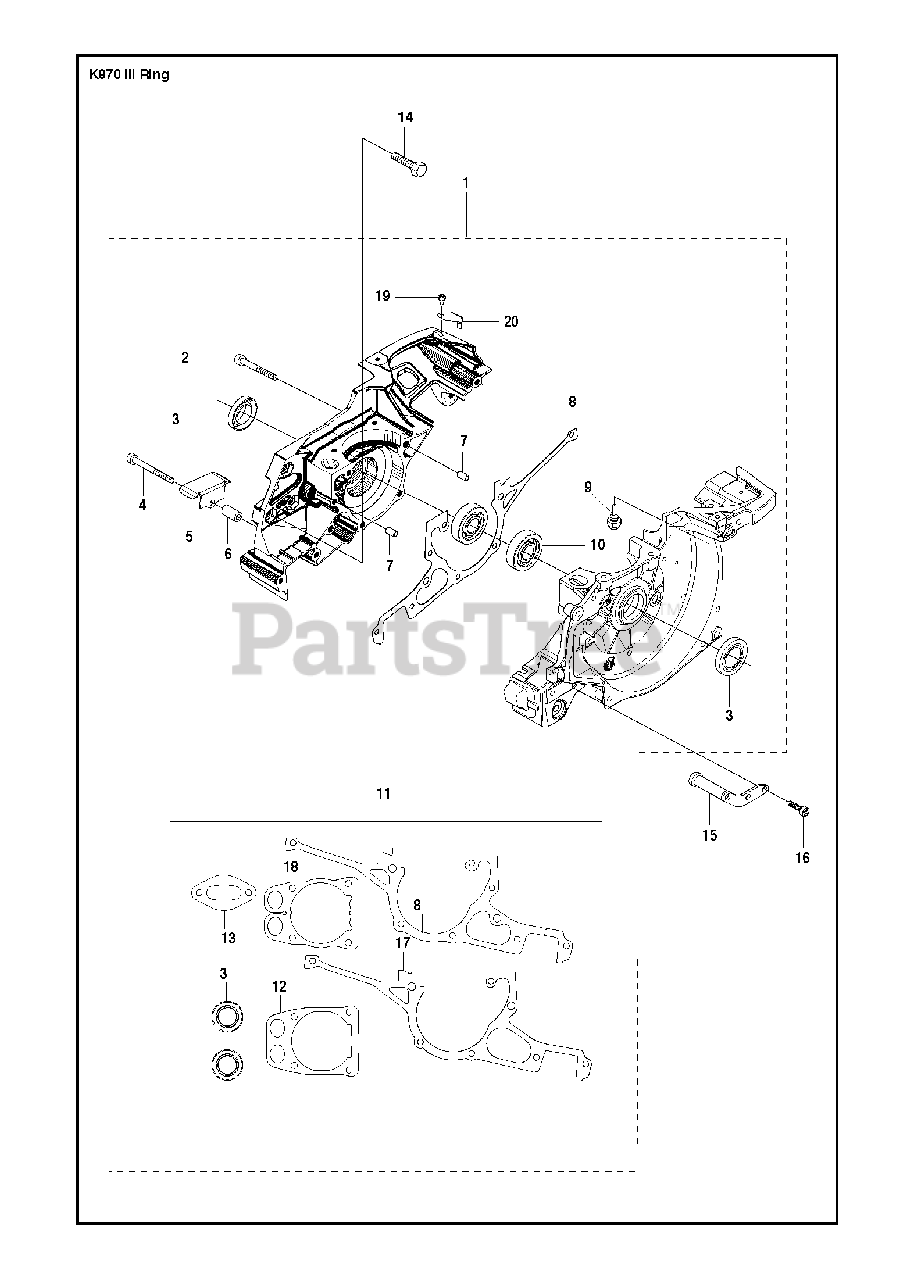

CRANKCASE Parts Diagram

  • Title

1

Husqvarna Construction 588 05 86-03

CRANKCASE ASSYIncl. 2 - 11, 14

$

$

Currently unavailable

2

Husqvarna 503 21 53-49

SCREW ITXSCM

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 503 26 02-04

SEALING RING

$14.99

$

In Stock, Qty 6

0

4

Husqvarna 503 21 53-56

SCREW ITXSCM

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 544 09 64-01

BELT GUIDE

$59.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544 09 77-01

BUSHING

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 501 27 08-01

GUIDE BUSHING

$8.49

$

Usually ships in 3-10 days

0

8

Husqvarna 577 98 89-01

GASKET

$21.99

$

In Stock, only 1 left!

0

9

Husqvarna 522 85 61-01

RUBBER BUSHING

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503 25 00-02

BALL BEARING
(Superseded to 738220325)

$26.99

$

In Stock, Qty 7

0

11

Husqvarna 544 22 98-06

GASKET KITIncl. 3, 8, 12 - 13, 17-18

$

$

Not available

12

Husqvarna 576 49 94-01

GASKET

$25.99

$

In Stock, only 1 left!

0

13

Husqvarna 506 37 81-01

GASKET
(Superseded to 585280901)

$7.99

$

In Stock, Qty 14

0

14

Husqvarna 506 03 32-02

SCREW

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 506 34 91-01

BRACKET

$24.50

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 505 57 41-01

SCREW ITXSCM

$4.99

$

In Stock, only 3 left!

0

17

Husqvarna 506 41 39-04

GASKET

$51.99

$

Usually ships in 3-10 days

0

18

Husqvarna 579 34 00-01

GASKET

$

$

Not available

19

Husqvarna Construction 525 88 74-03

SCREW CITXPANT

$3.49

$

In Stock, only 4 left!

0

20

Husqvarna Construction 582 12 33-01

WEAR PROTECTION

$3.99

$

Usually ships in 3-10 days

0
