K 970 III - Husqvarna Cut-Off Saw (2016-07) CYLINDER, PISTON & MUFFLER Parts Diagram

Cut-Off Saw

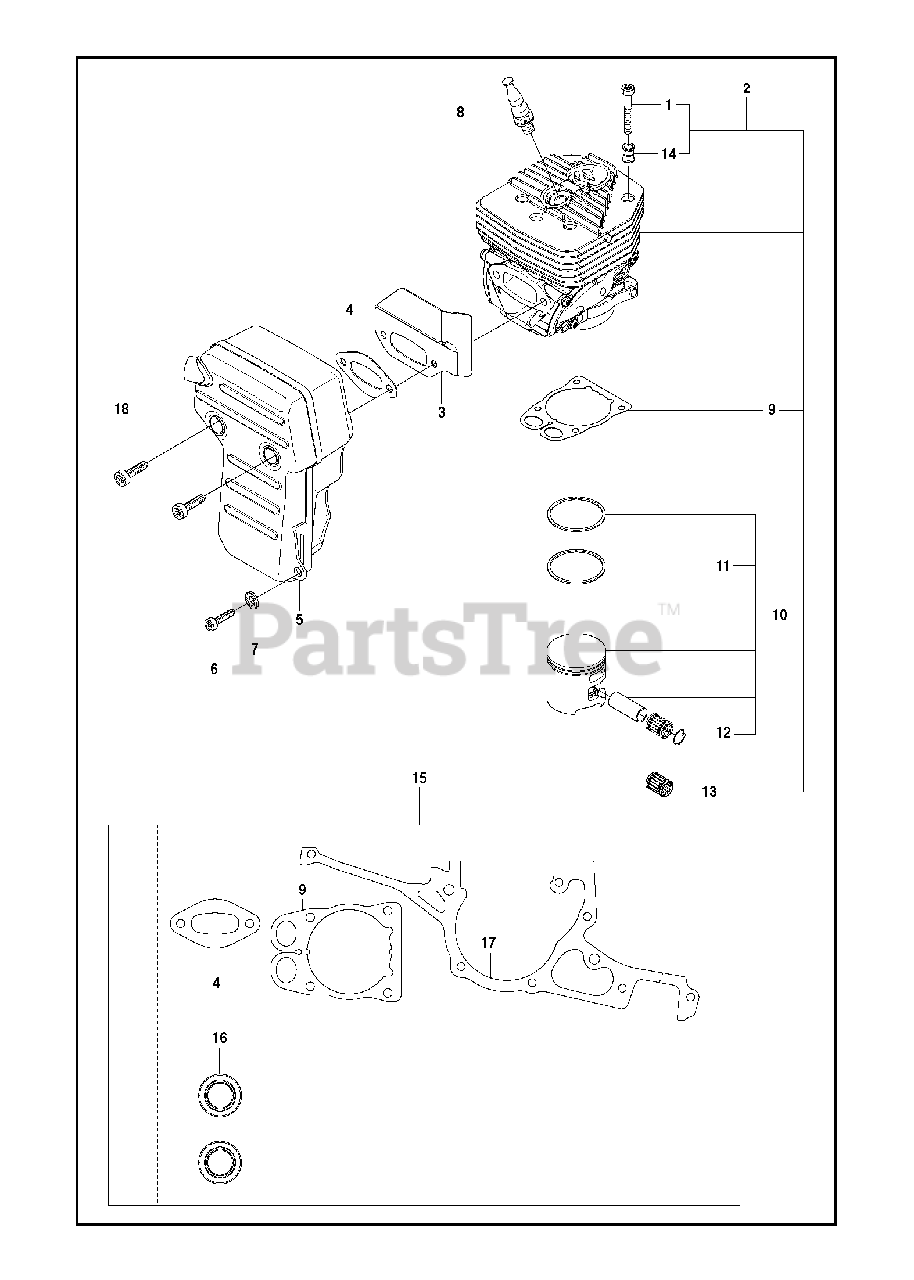

CYLINDER, PISTON & MUFFLER Parts Diagram

  • Title

1

Husqvarna 544 21 84-40

SCREW ITXSCM

$6.99

$

In Stock, only 4 left!

0

2

Husqvarna 586 35 10-01

CYLINDER ASSYIncl. 9 - 10, 13
(Superseded to 586351004)

$615.99

$

In Stock, only 1 left!

0

3

Husqvarna 577 99 76-02

HEAT DEFLECTOR

$31.99

$

In Stock, Qty 12

0

4

Husqvarna 585 28 09-01

GASKET

$8.49

$

In Stock, Qty 20+

0

5

Husqvarna 587 63 11-01

MUFFLER ASSY

$124.99

$

In Stock, only 1 left!

0

6

Husqvarna 503 21 53-25

SCREW ITXSCM

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 503 23 04-02

WASHER

$8.49

$

In Stock, Qty 20+

0

8

Husqvarna 584 91 22-01

DECOMPRESSION VALVE

$74.99

$

In Stock, Qty 5

0

9

Husqvarna 579 34 00-01

GASKETPaper gasket

$

$

Not available

10

Husqvarna 506 41 32-02

PISTONIncl. 11 - 12

$220.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503 28 90-35

PISTON RING

$20.99

$

Usually ships in 3-10 days

0

12

Husqvarna 737 44 13-00

CIRCLIP

$2.99

$

In Stock, only 2 left!

0

13

Husqvarna 503 25 61-01

NEEDLE BEARING

$31.99

$

In Stock, only 1 left!

0

14

Husqvarna 578 11 91-01

SLEEVE

$11.99

$

In Stock, only 3 left!

0

15

Husqvarna Construction 544 22 98-07

GASKET KITIncl. 4, 9, 15 - 17

$

$

Not available

16

Husqvarna 503 26 02-04

SEALING RING

$15.99

$

In Stock, Qty 20+

0

17

Husqvarna 577 98 89-01

GASKET

$23.99

$

In Stock, only 1 left!

0

18

Husqvarna 544 21 84-01

SCREW ITXSCM

$4.99

$

In Stock, Qty 20+

0
