K 970 II Chain - Husqvarna Cut-Off Saw (2015-03) CYLINDER, PISTON & MUFFLER Parts Diagram

Cut-Off Saw

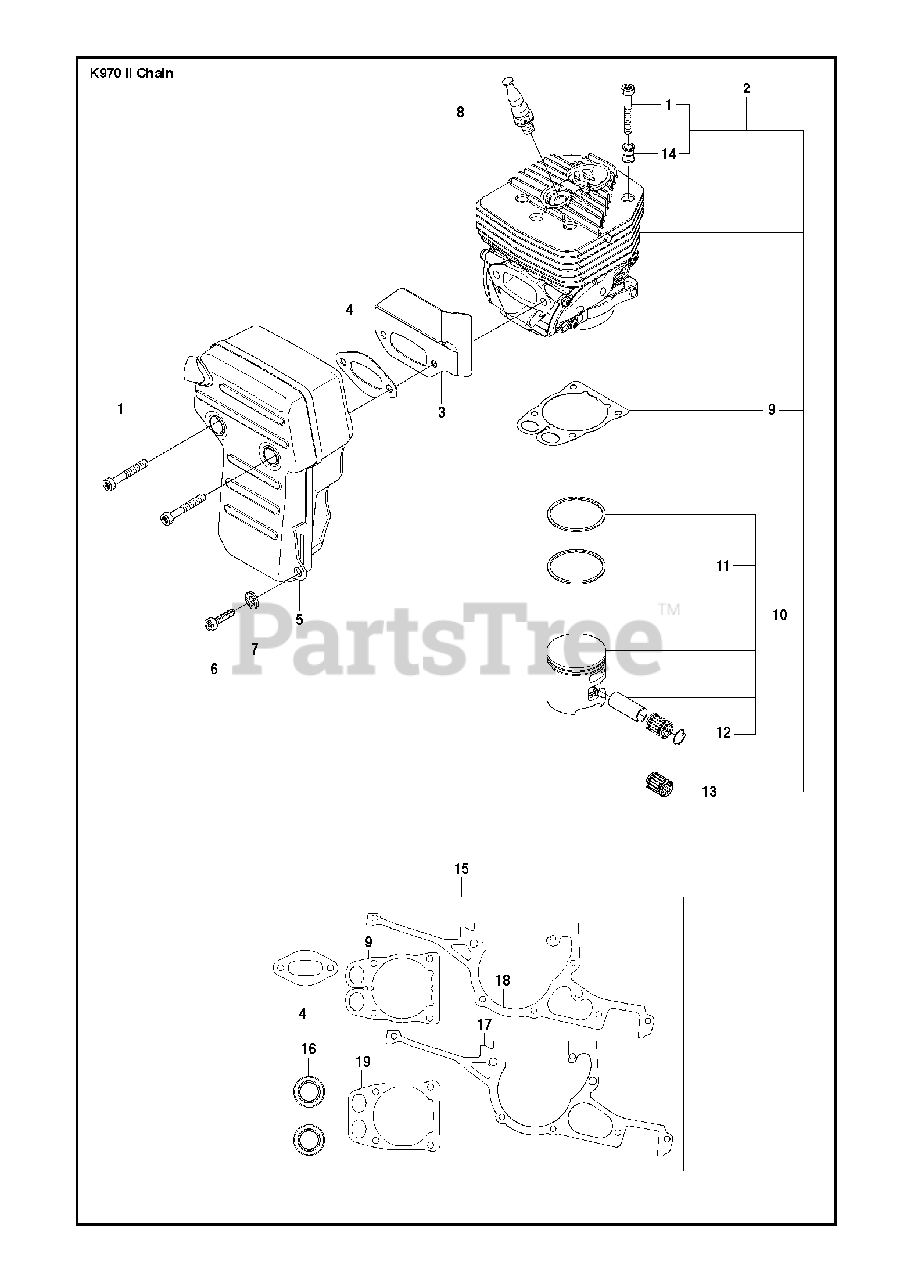

CYLINDER, PISTON & MUFFLER Parts Diagram

  • Title

1

Husqvarna 544 21 84-40

SCREW ITXSCM

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 586 35 10-02

CYLINDER ASSYIncl. 1, 9, 10, 13, 14

$

$

Not available

3

Husqvarna 577 99 76-02

HEAT DEFLECTOR

$31.99

$

In Stock, only 4 left!

0

4

Husqvarna 506 37 81-01

GASKET
(Superseded to 585280901)

$7.99

$

In Stock, Qty 13

0

5

Husqvarna 583 88 06-01

MUFFLER ASSY
(Superseded to 587631101)

$121.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503 21 53-25

SCREW ITXSCM

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 503 23 04-02

WASHER

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 584 91 22-01

DECOMPRESSION VALVE

$74.99

$

Usually ships in 3-10 days

0

9

Husqvarna 579 34 00-01

GASKETPaper gasket

$

$

Not available

10

Husqvarna 506 41 32-02

PISTONIncl. 11, 12

$202.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503 28 90-35

PISTON RING

$20.99

$

Usually ships in 3-10 days

0

12

Husqvarna 737 44 13-00

CIRCLIP

$2.99

$

In Stock, only 2 left!

0

13

Husqvarna 503 25 61-01

NEEDLE BEARING

$28.99

$

In Stock, only 1 left!

0

14

Husqvarna 578 11 91-01

SLEEVE

$10.99

$

In Stock, only 3 left!

0

15

Husqvarna 544 22 98-06

GASKET KITIncl. 4, 9, 16-19

$

$

Not available

16

Husqvarna 503 26 02-04

SEALING RING

$14.99

$

In Stock, only 2 left!

0

17

Husqvarna 506 41 39-04

GASKET

$51.99

$

Usually ships in 3-10 days

0

18

Husqvarna 577 98 89-01

GASKET

$21.99

$

In Stock, only 1 left!

0

19

Husqvarna 576 49 94-01

GASKETMetal gasket

$25.99

$

In Stock, only 1 left!

0
