K 960 - Husqvarna Cut-Off Saw (2008-12) Fuel Tank Parts Diagram

Cut-Off Saw

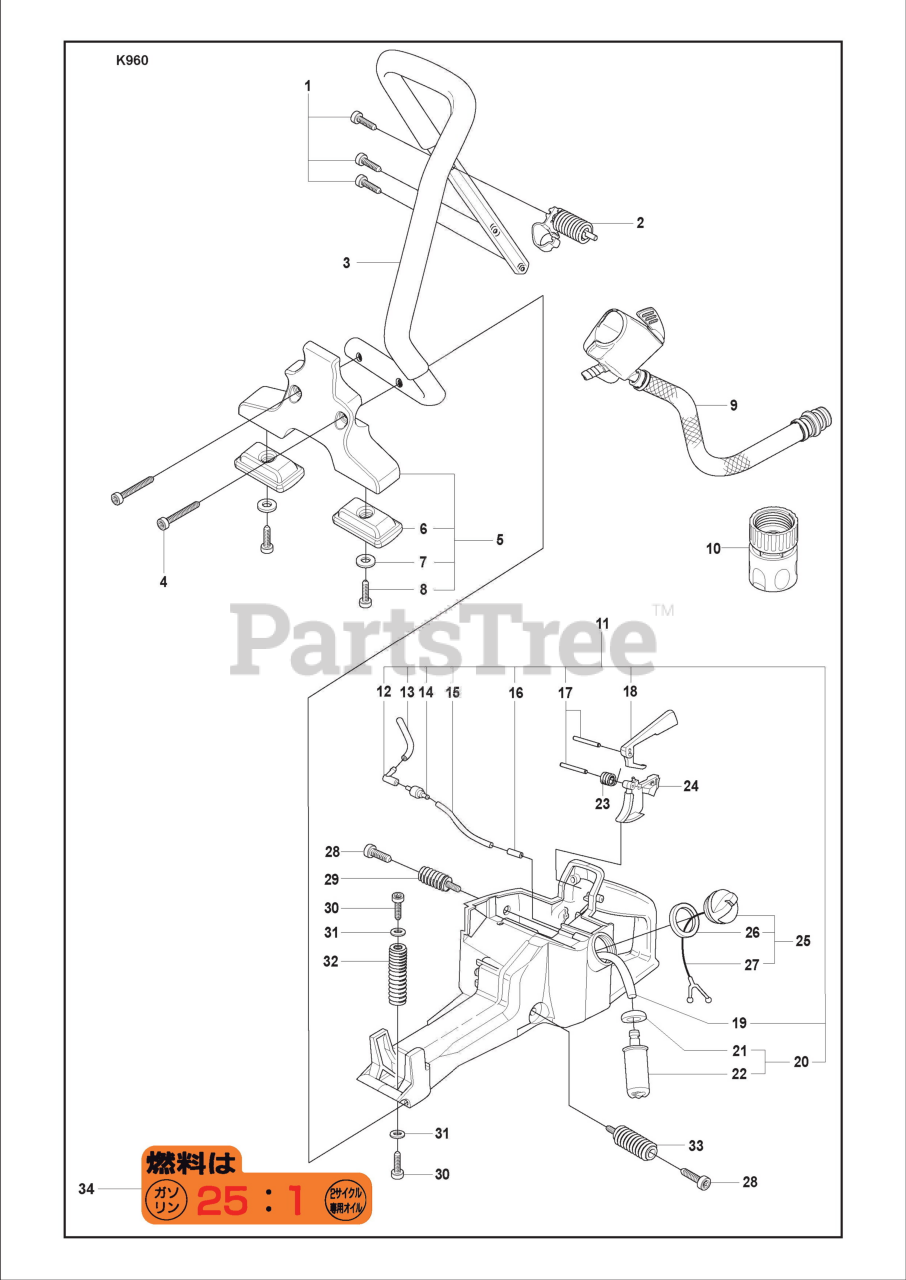

Fuel Tank Parts Diagram

  • Title

1

Husqvarna 503215420

Screw

$4.99

$

In Stock, Qty 11

0

1

Husqvarna 506389103

Antivibration Element
(Superseded to 505424502)

$37.99

$

In Stock, only 2 left!

0

3

Husqvarna 544456801

Handle

$162.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503215445

Screw

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 544891501

Ground Support Assy
(Superseded to 544891503)

Note: Incl. 6 - 8

$56.99

$

In Stock, only 2 left!

0

6

Husqvarna 544811601

Base Ground Support

$16.99

$

In Stock, Qty 9

0

7

Husqvarna 734114741

Washer

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503215312

Screw

$4.99

$

In Stock, Qty 11

0

9

Husqvarna 506385904

Hose
(Superseded to 505095501)

$51.99

$

In Stock, only 4 left!

0

10

Husqvarna 503266003

Coupler

Note: USA

$10.99

$

In Stock, Qty 20+

0

10

Husqvarna 503266004

Coupler

$13.99

$

In Stock, Qty 8

0

11

Husqvarna 544892006

Fuel Tank
(Superseded to 544892010)

Note: Incl. 12 - 20

$226.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503454601

Connection Bend

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 544324906

Fuel Hose
(Superseded to 581756106)

$8.99

$

In Stock, only 2 left!

0

14

Husqvarna 506236101

Tank Vent

$27.99

$

Usually ships in 3-10 days

0

15

Husqvarna 544324932

Fuel Hose
(Superseded to 581756132)

$8.49

$

Usually ships in 3-10 days

0

16

Husqvarna 506289501

Nipple

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 720124020

Parallel Pin
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

18

Husqvarna 506222802

Throttle Lockout
(Superseded to 588086001)

$26.99

$

In Stock, Qty 6

0

19

Husqvarna 544325002

Fuel Hose
(Superseded to 591375201)

$5.99

$

In Stock, Qty 20+

0

20

Husqvarna 506264111

Fuel Filter

Note: Incl. 21, 22

$16.99

$

Usually ships in 3-10 days

0

21

Husqvarna 506271101

Hose Clamp

$6.99

$

In Stock, Qty 11

0

22

Husqvarna 506264101

Fuel Filter

$14.99

$

In Stock, Qty 20+

0

23

Husqvarna 506222901

Spring Throttle Trig

$8.49

$

Usually ships in 3-10 days

0

24

Husqvarna 506222703

Throttle Trigger

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506255903

Tank Cap Assy
(Superseded to 506255906)

Note: Incl. 26, 27

$16.99

$

In Stock, only 4 left!

0

26

Husqvarna 506292101

Gasket

$9.99

$

In Stock, only 2 left!

0

27

Husqvarna 503578901

Tank Cap Holder

$9.99

$

In Stock, Qty 12

0

28

Husqvarna 544061201

Screw

$4.99

$

In Stock, Qty 9

0

29

Husqvarna 537210309

Antivib Element

$23.99

$

In Stock, only 4 left!

0

30

Husqvarna 503215316

Screw

$4.99

$

In Stock, Qty 18

0

31

Husqvarna 503230011

Washer Steel

$6.49

$

In Stock, only 2 left!

0

32

Husqvarna 503468501

Antivib Element

$32.99

$

In Stock, only 1 left!

0

33

Husqvarna 544383102

Spring

$41.99

$

Usually ships in 3-10 days

0
