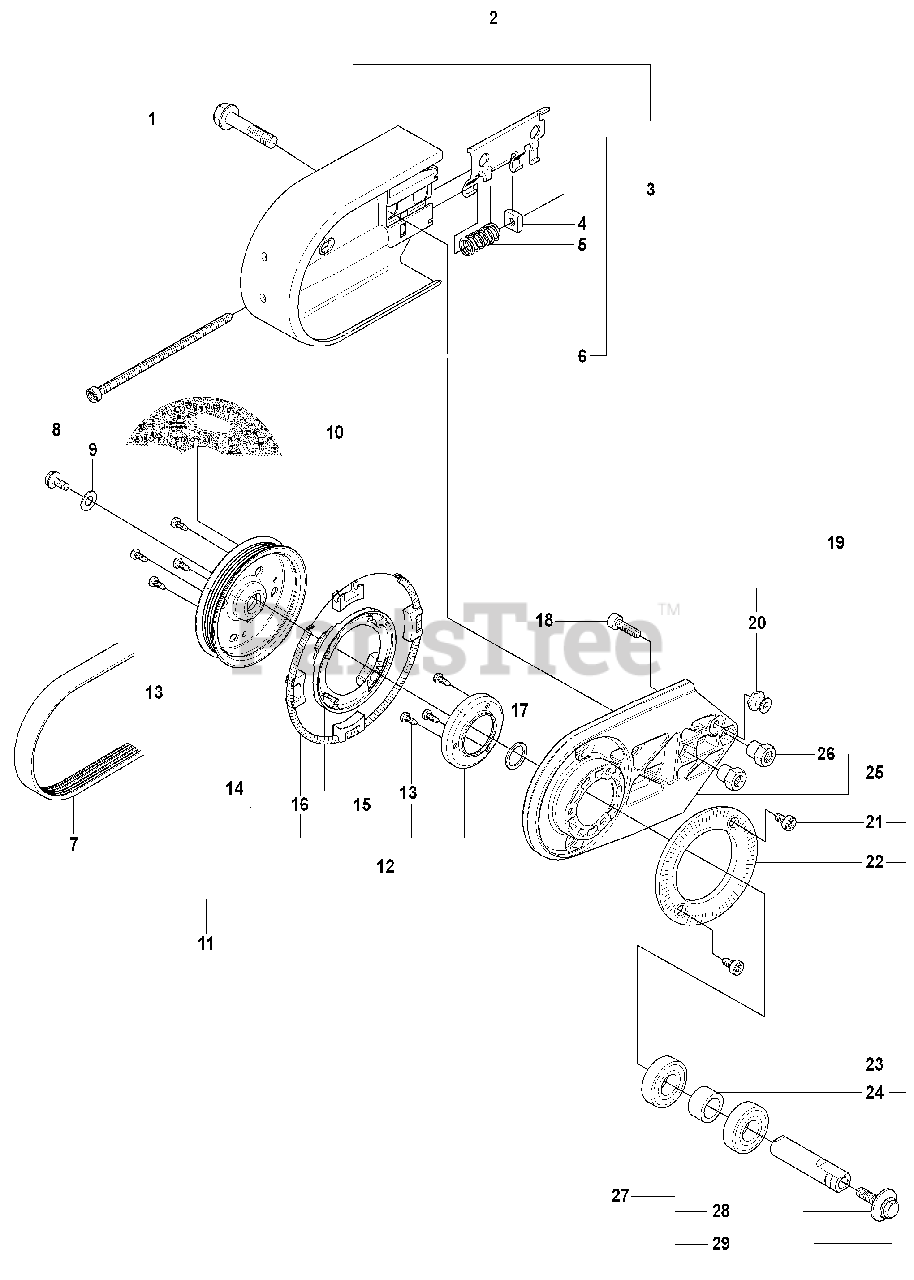

K 960 - Husqvarna Cut-Off Saw (2007-07) Belt Guard and Pulley and Friction Retarder and Bearing Housing Parts Diagram

Cut-Off Saw

Belt Guard and Pulley and Friction Retarder and Bearing Housing Parts Diagram

  • Title

1

Husqvarna 506284401

COLLAR SCREW

$9.99

$

Usually ships in 3-10 days

0

2

Husqvarna 506393602

BELT GUARD

Note: Incl. 3

$54.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506266604

BELT TENSIONER ASSY

Note: Incl. 4, 5, 6

$32.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506409301

NUT

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 506266801

COMPRESSION SPRING

$8.49

$

Usually ships in 3-10 days

0

6

Husqvarna 503207205

SCREW

$9.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544908403

BELT

Note: 12", 14"

$49.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544908404

BELT

Note: 16"

$49.99

$

In Stock, only 1 left!

0

8

Husqvarna 503200045

SCREW

$6.99

$

In Stock, Qty 12

0

9

Husqvarna 503230116

WASHER STEEL

$3.49

$

In Stock, Qty 12

0

10

Husqvarna 502470401

LABEL

$

$

Not available

11

Husqvarna 504037001

PULLEY
(Superseded to 588470403)

Note: Incl. 12 - 16

$88.99

$

In Stock, only 3 left!

0

12

Husqvarna 504037003

PULLEY
(Superseded to 505445405)

Note: Incl. 13, 15, 16

$59.99

$

In Stock, Qty 20+

0

13

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 544440601

PULLEY
(Superseded to 544440602)

$

$

Not available

15

Husqvarna 544440401

BRAKE SHOE

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544441001

DRAW SPRING

$9.99

$

In Stock, only 3 left!

0

17

Husqvarna 503230104

WASHER STEEL

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 725532955

SCREW

$7.99

$

In Stock, Qty 19

0

19

Husqvarna 506394203

BEARING HOUSING
(Superseded to 581351710)

Note: Incl. 20 - 24

$161.99

$

In Stock, only 2 left!

0

20

Husqvarna 506143201

TORSION STOP

$11.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503215310

SCREW

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 506288401

SCREEN PATTERN FLANG

$9.99

$

In Stock, Qty 8

0

23

Husqvarna 503252101

BALL BEARING

$36.99

$

In Stock, only 1 left!

0

24

Husqvarna 506070801

SPACING SLEEVE

$16.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506394211

BEARING HOUSING
(Superseded to 581351707)

Note: Incl. 26

$

$

Not available

26

Husqvarna 506287301

NUT

$12.99

$

In Stock, only 2 left!

0

27

Husqvarna 506298363

SHAFT

Note: Incl. 28, 29

$80.99

$

Usually ships in 3-10 days

0

28

Husqvarna 506139511

WASHER
(Superseded to 581855201)

$31.99

$

In Stock, Qty 13

0

29

Husqvarna 506139601

COLLAR SCREW

$31.99

$

In Stock, Qty 13

0
