K 960 Chain - Husqvarna Cut-Off Saw (2008-03) CRANKCASE Parts Diagram

Cut-Off Saw

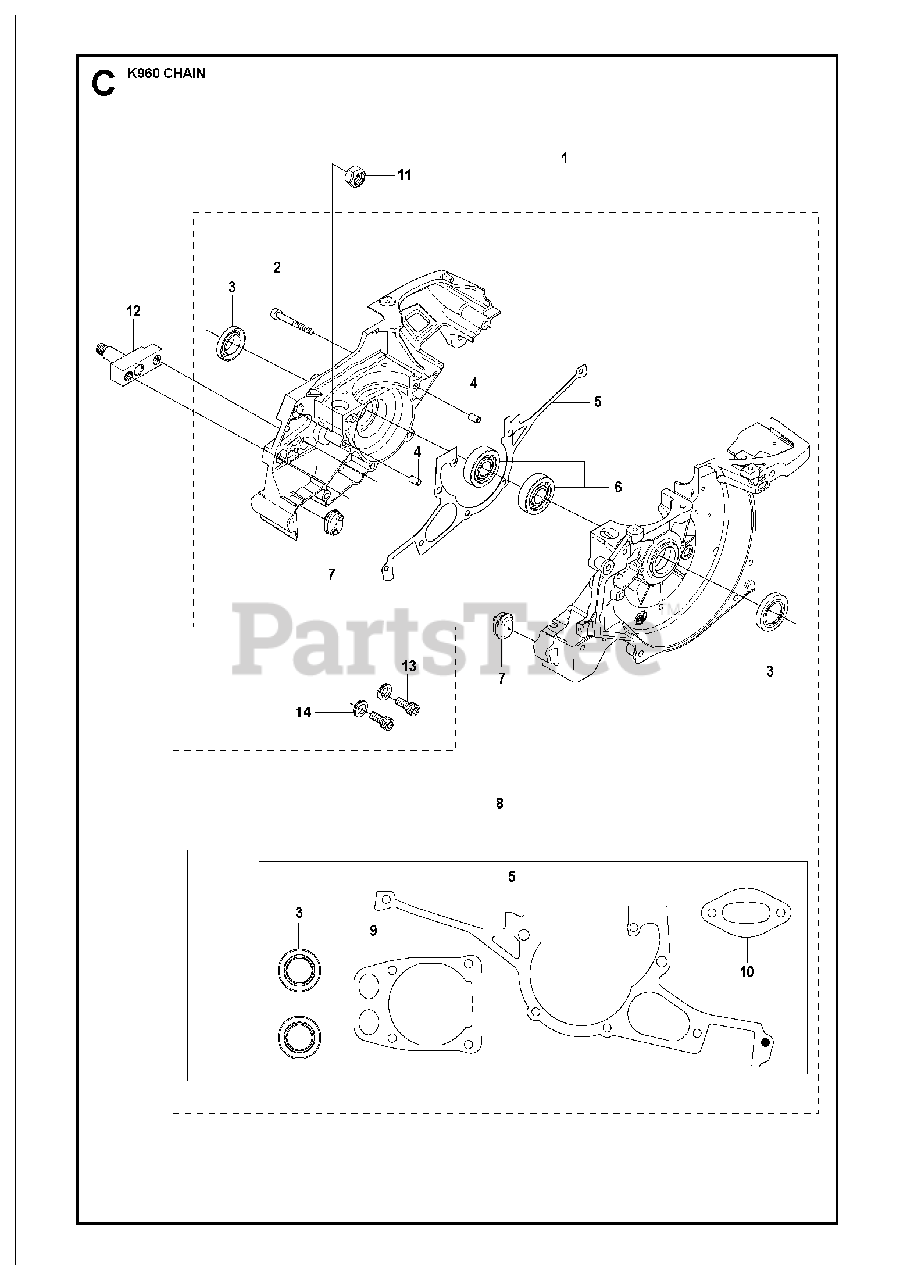

CRANKCASE Parts Diagram

  • Title

1

Husqvarna Construction 504 88 73-01

CRANKCASE ASSYIncl. 2 - 8

$516.55

$

Usually ships in 3-10 days

0

2

Husqvarna 503 21 53-49

SCREW ITXSCM

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 503 26 02-04

SEALING RINGGasket kit 8

$14.99

$

In Stock, only 2 left!

0

4

Husqvarna 501 27 08-01

GUIDE BUSHING

$8.49

$

Usually ships in 3-10 days

0

5

Husqvarna 506 41 39-02

GASKETGasket kit 8
(Superseded to 506413904)

$51.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503 25 00-02

BALL BEARING
(Superseded to 738220325)

$26.99

$

In Stock, Qty 7

0

7

Husqvarna 544 89 54-01

RUBBER BUSHING

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544 22 98-05

GASKET KITIncl. 3, 5, 9, 10
(Superseded to 544229806)

$

$

Not available

9

Husqvarna 506 41 40-01

GASKET
(Superseded to 576499401)

$25.99

$

In Stock, only 1 left!

0

10

Husqvarna 506 37 81-01

GASKET
(Superseded to 585280901)

$7.99

$

In Stock, Qty 13

0

11

Husqvarna Construction 503 22 21-02

LOCK NUT

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 506 32 76-02

BAR BOLT

$148.47

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 725 54 53-01

SCREW IHSCM

$3.50

$

Usually ships in 3-10 days

0

14

Husqvarna 503 23 04-03

WASHER

$6.49

$

In Stock, Qty 7

0
