K 950 Chain - Husqvarna Cut-Off Saw (2007-01) FUEL TANK Parts Diagram

Cut-Off Saw

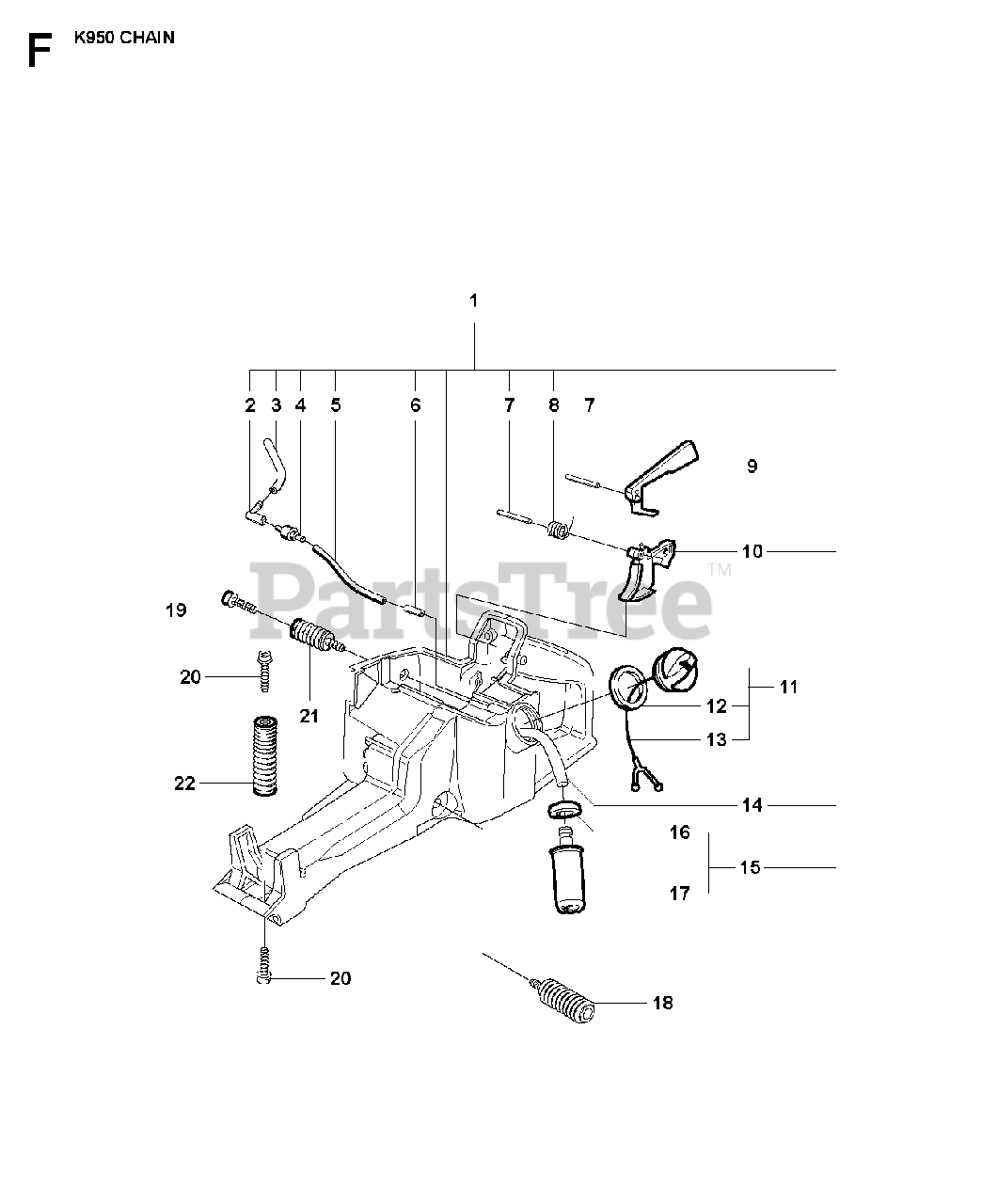

FUEL TANK Parts Diagram

  • Title

1

Husqvarna Construction 544 89 20-07

FUEL TANKIncl. 2 - 11, 14, 15

$105.77

$

Usually ships in 3-10 days

0

2

Husqvarna 503 45 46-01

CONNECTION BEND

$6.49

$

In Stock, Qty 5

0

3

Husqvarna 501 76 83-05

FUEL HOSE
(Superseded to 581756106)

$8.99

$

In Stock, Qty 5

0

4

Husqvarna 506 23 61-01

TANK VENT

$

$

Not available

5

Husqvarna Construction 501 76 83-31

FUEL HOSE

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506 28 95-01

NIPPLE

$

$

Not available

7

Husqvarna 720 12 40-20

PARALLEL PIN
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

8

Husqvarna 506 22 29-01

SPRING THROTTLE TRIG

$7.99

$

In Stock, only 1 left!

0

9

Husqvarna 506 22 28-02

THROTTLE LOCKOUT
(Superseded to 588086001)

$24.99

$

In Stock, only 4 left!

0

10

Husqvarna Construction 506 22 27-02

THROTTLE TRIGGER

$

$

Not available

11

Husqvarna 506 25 59-03

TANK CAP ASSYIncl. 12, 13
(Superseded to 506255906)

$17.99

$

In Stock, only 3 left!

0

12

Husqvarna 506 29 21-01

GASKET

$9.49

$

In Stock, only 2 left!

0

13

Husqvarna 503 57 89-01

HOLDER

$9.99

$

In Stock, Qty 15

0

14

Husqvarna 503 57 76-02

FUEL HOSE
(Superseded to 591375201)

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 506 26 41-11

FUEL FILTERIncl. 16, 17

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506 27 11-01

HOSE CLAMP

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 506 26 41-01

FUEL FILTER

$13.99

$

In Stock, Qty 16

0

18

Husqvarna Construction 544 38 31-01

SPRING

$29.17

$

Usually ships in 3-10 days

0

19

Husqvarna 503 21 05-22

SCREW IHSCT

$5.99

$

In Stock, Qty 11

0

20

Husqvarna 503 20 02-16

SCREW IHSCFM

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna Construction 506 23 75-01

ANTIVIBRATION ELEMENT

$23.33

$

Usually ships in 3-10 days

0

22

Husqvarna 503 46 85-01

ANTIVIBRATION ELEMENT

$30.99

$

Usually ships in 3-10 days

0
