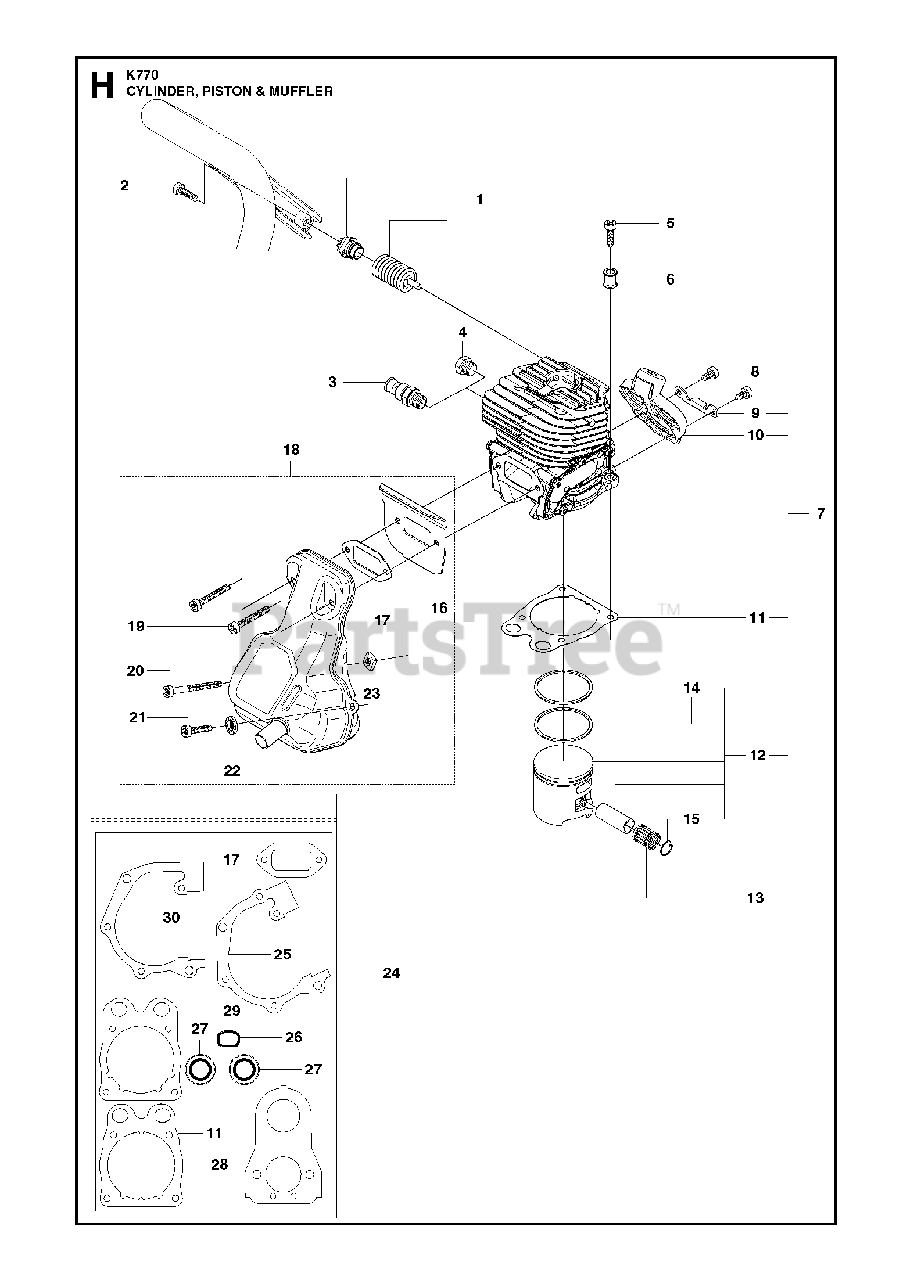

K 770 - Husqvarna Cut-Off Saw (2017-11) CYLINDER, PISTON & MUFFLER Parts Diagram

Cut-Off Saw

CYLINDER, PISTON & MUFFLER Parts Diagram

  • Title

1

Husqvarna 579 74 42-02

ANTIVIBRATION ELEMENT

$25.99

$

In Stock, only 2 left!

0

2

Husqvarna 544 06 12-01

SCREW ITXSCM

$4.99

$

In Stock, Qty 6

0

3

Husqvarna 503 71 53-01

DECOMPRESSION VALVE

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503 55 22-01

PLUG

$13.99

$

In Stock, only 1 left!

0

5

Husqvarna 503 21 53-40

SCREW ITXSCM

$6.49

$

In Stock, only 3 left!

0

6

Husqvarna 576 71 76-02

SLEEVE

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna Construction 581 47 61-03

CYLINDER ASSYIncl. 8 - 13

$662.99

$

In Stock, only 2 left!

0

8

Husqvarna 503 21 53-16

SCREW ITXSCM

$4.99

$

In Stock, only 4 left!

0

9

Husqvarna 506 36 88-01

BRACKET

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 574 23 18-01

PLATE
(Superseded to 574231802)

$22.99

$

Usually ships in 3-10 days

0

11

Husqvarna 581 28 53-01

GASKET

$9.49

$

In Stock, Qty 6

0

12

Husqvarna 506 37 24-03

PISTON ASSYIncl. 14 - 15

$172.99

$

In Stock, only 2 left!

0

13

Husqvarna 503 25 56-01

NEEDLE BEARING

$21.99

$

In Stock, only 1 left!

0

14

Husqvarna 522 99 01-01

PISTON RING

$30.99

$

In Stock, only 3 left!

0

15

Husqvarna 737 43 12-00

SNAP RING

$7.49

$

In Stock, only 2 left!

0

16

Husqvarna Construction 588 91 51-01

HEAT DEFLECTOR

$11.99

$

In Stock, only 1 left!

0

17

Husqvarna Construction 588 93 25-01

GASKET

$10.99

$

In Stock, only 2 left!

0

18

Husqvarna Construction 592 77 83-01

MUFFLERIncl. 16 -17, 19 - 23

$100.99

$

In Stock, only 1 left!

0

19

Husqvarna 503 21 53-40

SCREW ITXSCM

$6.49

$

In Stock, only 3 left!

0

20

Husqvarna 503 21 53-56

SCREW ITXSCM

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 503 21 53-25

SCREW ITXSCM

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 503 23 04-02

WASHER

$7.99

$

In Stock, only 2 left!

0

23

Husqvarna 503 22 65-04

SQUARE NUT

$6.49

$

In Stock, Qty 5

0

24

Husqvarna Construction 581 35 74-02

GASKET KITIncl. 11, 17, 25 - 30

$34.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506 37 70-03

GASKET

$7.99

$

In Stock, only 2 left!

0

26

Husqvarna 544 21 93-02

INSERT

$4.99

$

In Stock, Qty 10

0

27

Husqvarna 503 26 02-04

SEALING RINGBlue

$14.99

$

In Stock, only 3 left!

0

28

Husqvarna 506 37 68-04

GASKET

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 506 37 67-01

CYLINDER

$9.49

$

In Stock, only 1 left!

0

30

Husqvarna 506 37 70-02

GASKET

$7.99

$

Usually ships in 3-10 days

0
