K 770 - Husqvarna Cut-Off Saw (2017-11) CRANKCASE Parts Diagram

Cut-Off Saw

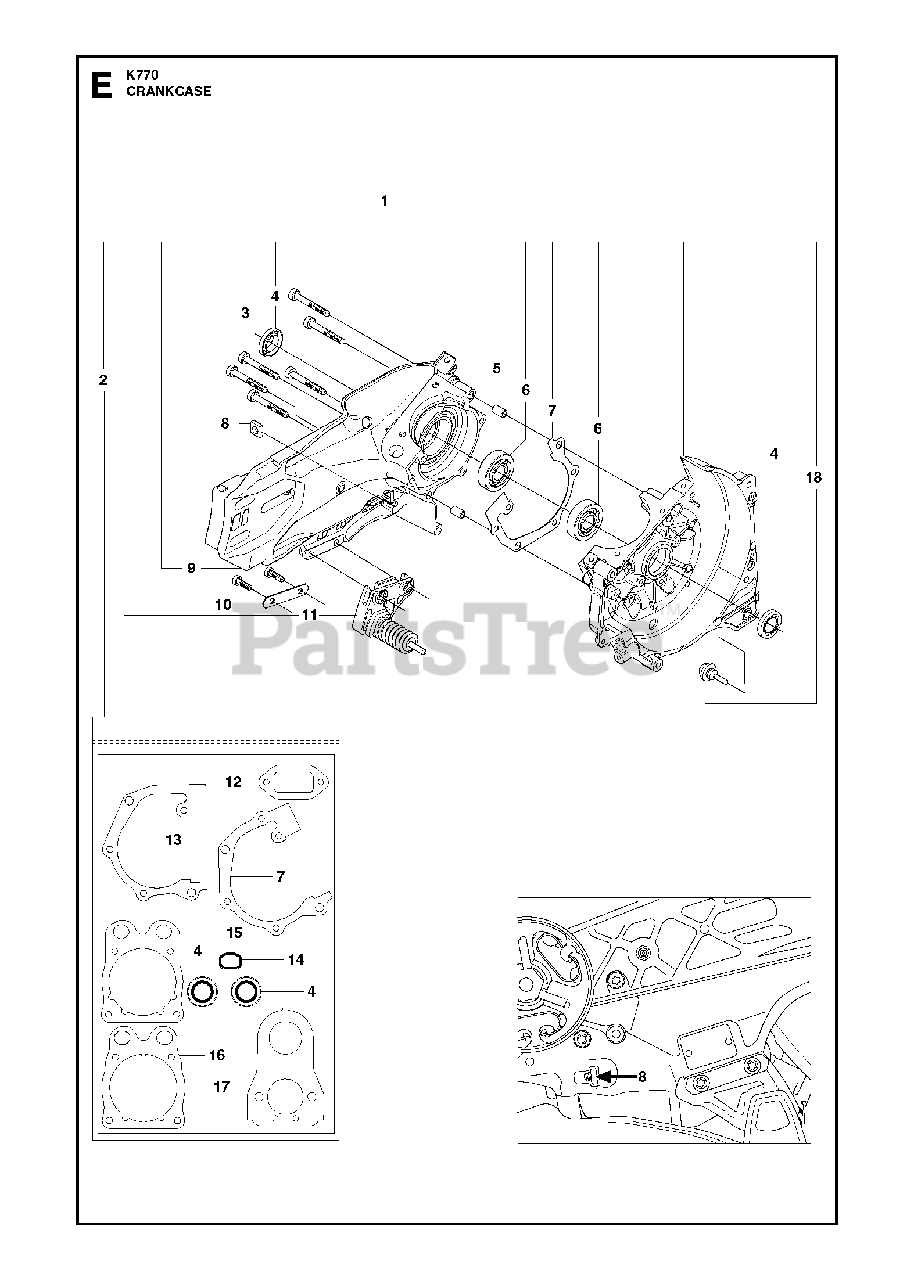

CRANKCASE Parts Diagram

  • Title

1

Husqvarna Construction 593 28 25-01

CRANKCASE KITIncl. 2-7, 9-11, 18

$

$

Not available

2

Husqvarna Construction 581 35 74-02

GASKET KIT4, 7, 12-17

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503 21 53-41

SCREW ITXSCM

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 503 26 02-04

SEALING RING

$14.99

$

In Stock, only 3 left!

0

5

Husqvarna 501 27 08-01

GUIDE BUSHING

$8.49

$

Usually ships in 3-10 days

0

6

Husqvarna 738 22 02-25

BALL BEARING

$31.99

$

In Stock, only 1 left!

0

7

Husqvarna 506 37 70-03

GASKETSix hole

$7.99

$

In Stock, only 2 left!

0

8

Husqvarna 503 22 65-04

SQUARE NUT

$6.49

$

In Stock, Qty 5

0

9

Husqvarna 503 21 53-16

SCREW ITXSCM

$4.99

$

In Stock, only 4 left!

0

10

Husqvarna 522 47 48-01

PLATE

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna Construction 522 47 57-02

SPRING RETAINER

$

$

Currently unavailable

12

Husqvarna Construction 588 91 51-01

HEAT DEFLECTOR

$11.99

$

In Stock, only 1 left!

0

13

Husqvarna 506 37 70-02

GASKETFive hole

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506 37 67-01

CYLINDER

$9.49

$

In Stock, only 1 left!

0

15

Husqvarna 544 21 93-02

INSERT

$4.99

$

In Stock, Qty 10

0

16

Husqvarna 581 28 53-01

GASKET

$9.49

$

In Stock, Qty 6

0

17

Husqvarna 506 37 68-04

GASKET

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 503 84 61-01

BUFFER

$7.99

$

In Stock, Qty 10

0
