K 760 - Husqvarna Cut-Off Saw (2013-02) BELT GUARD & PULLEY Parts Diagram

Cut-Off Saw

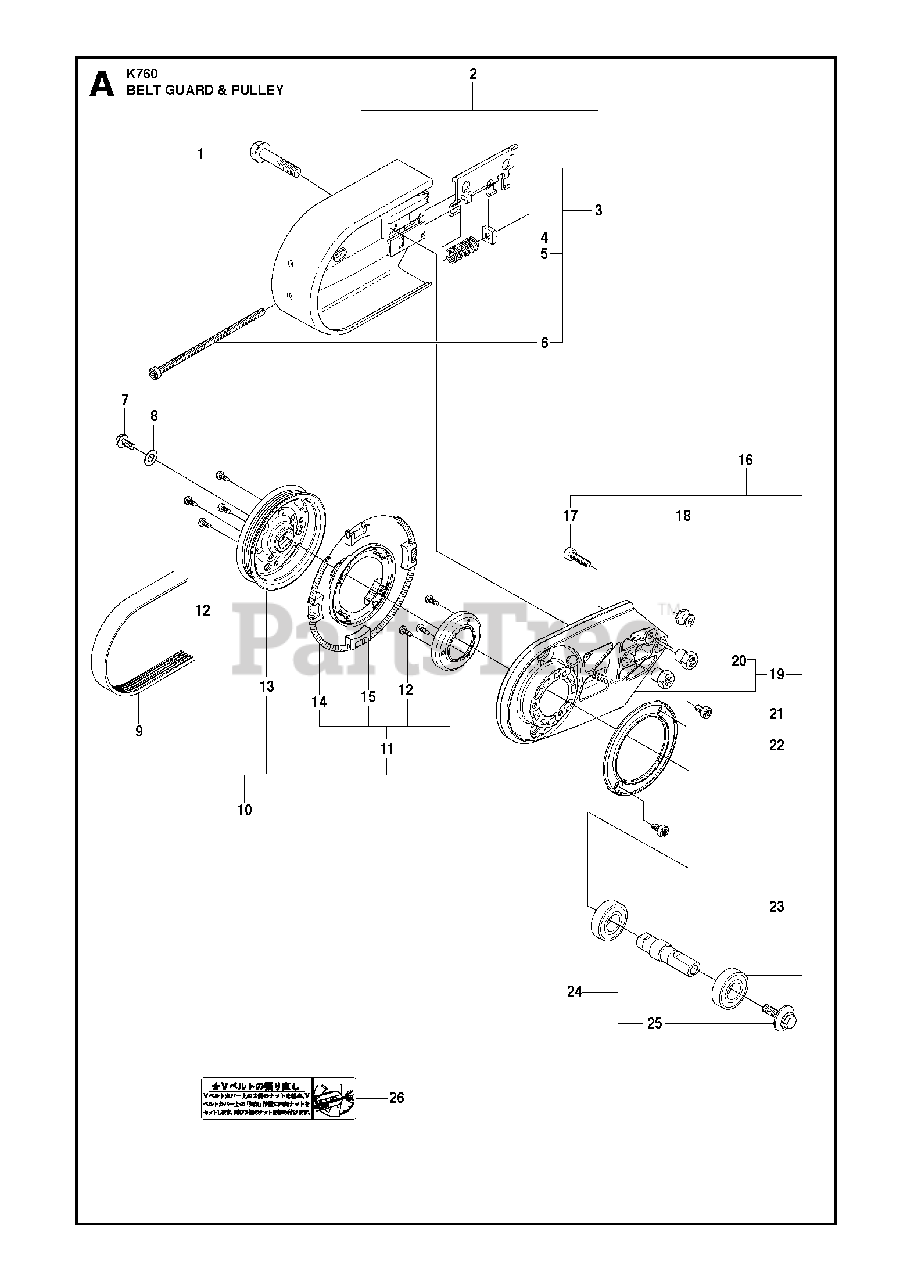

BELT GUARD & PULLEY Parts Diagram

  • Title

1

Husqvarna 506 28 44-01

SCREW EHHFM

$10.99

$

In Stock, only 3 left!

0

2

Husqvarna 506 39 36-02

BELT GUARDIncl. 3
(Superseded to 503895438)

$

$

Not available

3

Husqvarna 506 26 66-04

BELT TENSIONER ASSYIncl. 4 - 6

$35.99

$

In Stock, only 2 left!

0

4

Husqvarna 506 40 93-01

NUT

$3.99

$

In Stock, only 1 left!

0

5

Husqvarna 506 26 68-01

COMPRESSION SPRING

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503 20 72-05

SCREW CITXSCM

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503 20 00-45

SCREW EHHFM

$6.99

$

In Stock, Qty 6

0

8

Husqvarna 503 23 01-16

WASHER

$3.99

$

In Stock, Qty 6

0

9

Husqvarna 544 90 84-02

BELT

$48.99

$

In Stock, Qty 15

0

10

Husqvarna Construction 588 47 04-02

PULLEY ASSYIncl. 11 - 13

$

$

Not available

11

Husqvarna Construction 505 44 54-05

CASSETTEIncl. 12, 14 - 15

$63.99

$

In Stock, Qty 7

0

12

Husqvarna 503 21 28-10

SCREW CCRPANT

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 504 06 22-01

PULLEY
(Superseded to 590895801)

$37.99

$

In Stock, Qty 19

0

14

Husqvarna 544 44 10-01

DRAW SPRING

$10.99

$

In Stock, only 3 left!

0

15

Husqvarna 544 44 04-02

BRAKE SHOE

$10.99

$

In Stock, only 4 left!

0

16

Husqvarna Construction 581 35 17-09

BEARING HOUSINGM10, Incl. 17 - 19, 21 - 23

$249.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 581 35 17-10

BEARING HOUSINGM8, Incl. 17-19, 21-23. UK & JP only

$176.99

$

In Stock, only 2 left!

0

16

Husqvarna 506 39 42-08

BEARING HOUSINGRescue only
(Superseded to 581351709)

$249.99

$

Usually ships in 3-10 days

0

17

Husqvarna 505 57 41-16

SCREW ITXSCM

$3.99

$

In Stock, only 3 left!

0

18

Husqvarna 506 14 32-01

TORSION STOP

$12.99

$

Usually ships in 3-10 days

0

19

Husqvarna 581 35 17-01

BEARING HOUSINGIncl. 20
(Superseded to 581351709)

$249.99

$

Usually ships in 3-10 days

0

20

Husqvarna 506 28 73-01

NUT

$12.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503 21 53-10

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 579 73 37-01

SEALING WASHER

$12.99

$

In Stock, only 2 left!

0

23

Husqvarna 583 95 33-01

BALL BEARING

$31.99

$

In Stock, only 2 left!

0

24

Husqvarna 506 29 83-65

SHAFTM8, Incl. 25

$126.99

$

In Stock, only 2 left!

0

24

Husqvarna Construction 588 99 24-03

SHAFTM10

$

$

Currently unavailable

25

Husqvarna 581 85 52-01

SCREWM8

$33.99

$

In Stock, Qty 10

0

25

Husqvarna Construction 590 50 38-01

SCREWM10

$

$

Not available

26

Husqvarna 506 30 97-05

LABELJapan only

$17.99

$

Usually ships in 3-10 days

0
