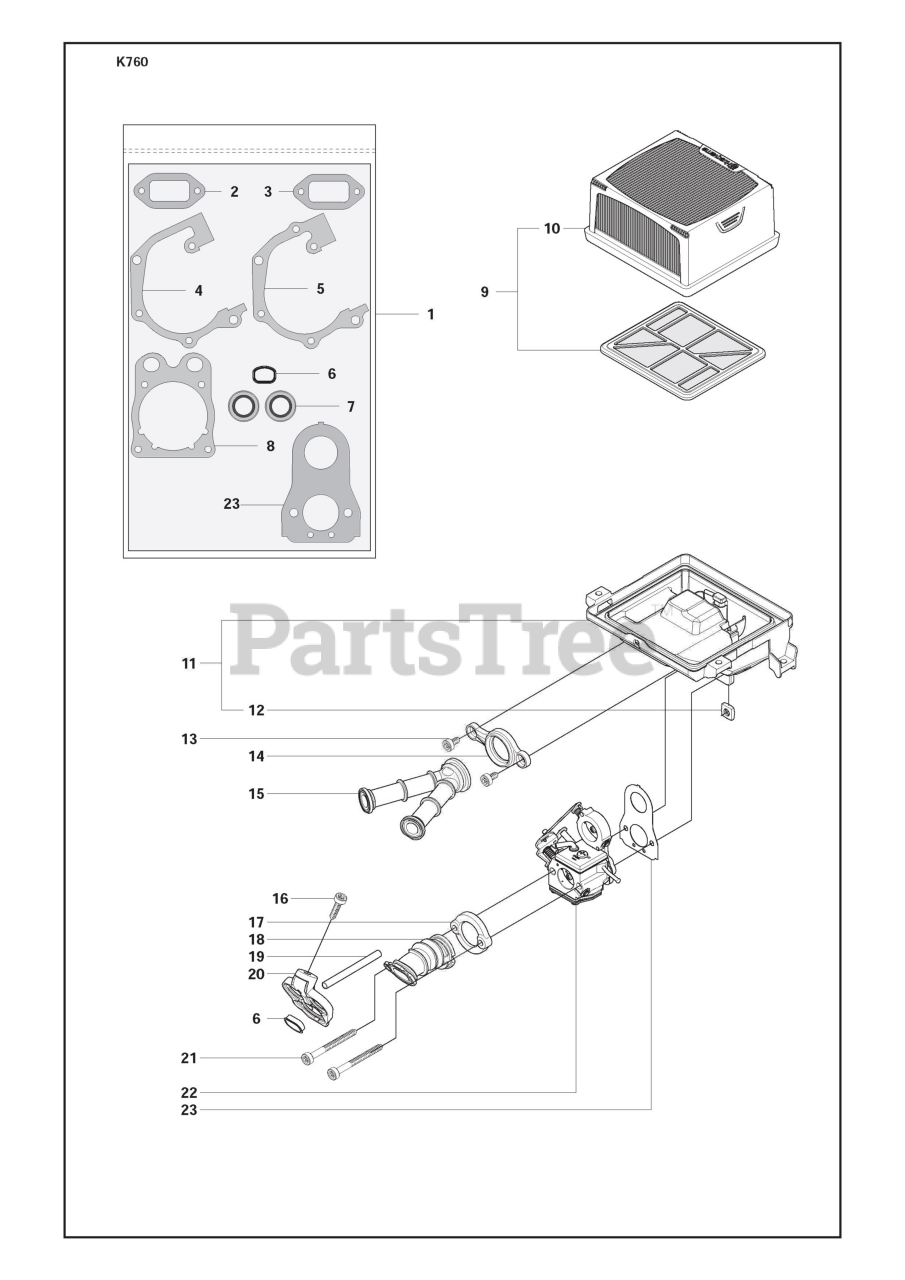

K 760 - Husqvarna Cut-Off Saw (2009-12) Filter And Gasket Kit Parts Diagram

Cut-Off Saw

Filter And Gasket Kit Parts Diagram

  • Title

1

Husqvarna 506385305

Gasket Kit
(Superseded to 581357401)

Note: Incl. 2 - 8, 23

$34.99

$

In Stock, only 1 left!

0

2

Husqvarna 506412301

Gasket

$9.49

$

In Stock, only 2 left!

0

3

Husqvarna 506376902

Gasket Muffler
(Superseded to 588932501)

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 506377002

Gasket Crankcase

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 506377003

Gasket Crankcase

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544219302

Insert

$4.99

$

In Stock, Qty 5

0

7

Husqvarna 503260204

Sealing Ring

$14.99

$

In Stock, only 2 left!

0

8

Husqvarna 506376701

Cylinder Base Gasket

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 574362301

Filter
(Superseded to 574362302)

Note: Incl. 10

$51.99

$

In Stock, Qty 8

0

10

Husqvarna 525470601

Air Filter Paper
(Superseded to 525470602)

$45.99

$

In Stock, Qty 12

0

11

Husqvarna 575354001

Carburettor Bracket

Note: Incl. 12

$35.99

$

In Stock, only 1 left!

0

12

Husqvarna 503226504

Nut

$6.49

$

In Stock, Qty 8

0

13

Husqvarna 503215310

Screw

$4.99

$

In Stock, Qty 13

0

14

Husqvarna 506370601

Flange Inlet Pipe

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 506369801

Inlet Pipe
(Superseded to 525733201)

$59.99

$

In Stock, only 1 left!

0

16

Husqvarna 503215320

Screw

$4.99

$

In Stock, only 3 left!

0

17

Husqvarna 506370501

Flange Inlet Pipe
(Superseded to 576890101)

$

$

Not available

18

Husqvarna 506369701

Inlet Pipe
(Superseded to 525733101)

$31.99

$

In Stock, only 3 left!

0

19

Husqvarna 503400609

Impulse Hose
(Superseded to 586227701)

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544352601

Plate

$30.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503215356

Screw

$6.49

$

In Stock, Qty 5

0

22

Husqvarna 510181202

Carburettor
(Superseded to 578243401)

Note: Zama C3-EL43A

$219.99

$

Usually ships in 3-10 days

0

23

Husqvarna 506376803

Gasket Carburettor
(Superseded to 506376804)

$6.49

$

Usually ships in 3-10 days

0
