K 760 Cut-n-Break - Husqvarna Cut-Off Saw (2009-11) Clutch and Belt Guard and Crankcase Assy and Gasket Kit Parts Diagram

Cut-Off Saw

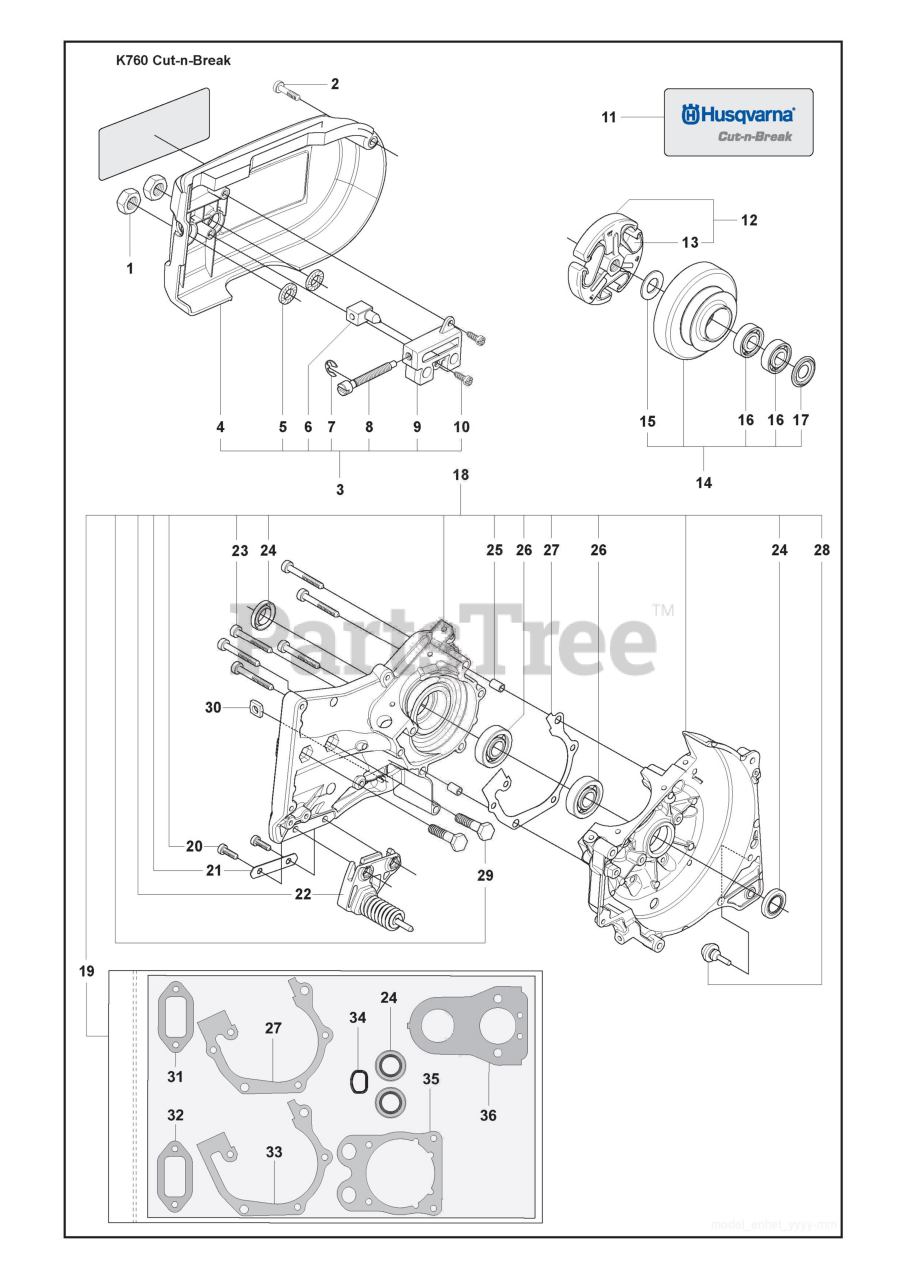

Clutch and Belt Guard and Crankcase Assy and Gasket Kit Parts Diagram

  • Title

1

Husqvarna 731231801

Nut
(Superseded to 695008078)

$

$

Not available

2

Husqvarna 503203419

Screw

$21.99

$

In Stock, Qty 18

0

3

Husqvarna 575338101

Belt Tensioner Assy
(Superseded to 575338103)

Note: Incl. 4 - 10

$68.99

$

In Stock, only 3 left!

0

4

Husqvarna 525623901

Clutch Cover

$37.99

$

In Stock, only 1 left!

0

5

Husqvarna 503230401

Washer

$6.49

$

In Stock, only 4 left!

0

6

Husqvarna 574240901

Pawl

$25.99

$

Usually ships in 3-10 days

0

7

Husqvarna 735310820

Circlip

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 506402601

Screw
(Superseded to 575 73 21-01)

$25.99

$

In Stock, only 1 left!

0

9

Husqvarna 506403301

Belt Tensioner

$22.99

$

In Stock, only 1 left!

0

10

Husqvarna 504909410

Screw

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 574489601

Label

$11.99

$

In Stock, only 1 left!

0

12

Husqvarna 503744406

Clutch Assy

Note: Incl. 13

$123.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503744301

Clutch Spring

$7.99

$

In Stock, only 2 left!

0

14

Husqvarna 502289203

Driving Pulley Assy

Note: Incl. 15 - 17

$101.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503230070

Washer
(Superseded to 503230073)

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 525831801

Ball Bearing

$22.99

$

In Stock, Qty 6

0

17

Husqvarna 506316901

Dust Cover

$7.99

$

In Stock, Qty 5

0

18

Husqvarna 574474802

Crank Case Assy
(Superseded to 585061408)

Note: Incl. 19 - 29

$516.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506385305

Gasket Kit
(Superseded to 581357401)

Note: Incl. 24, 27, 30 - 35

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503215316

Screw

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 522474801

Washer

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 522475701

Spring Retainer

$37.99

$

Usually ships in 3-10 days

0

23

Husqvarna 503215341

Screw

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 503260204

Sealing Ring

$14.99

$

In Stock, only 3 left!

0

25

Husqvarna 501270801

Guide Bushing

$8.49

$

Usually ships in 3-10 days

0

26

Husqvarna 738220225

Ball Bearing

$31.99

$

In Stock, only 1 left!

0

27

Husqvarna 506377002

Gasket Crankcase

$7.99

$

Usually ships in 3-10 days

0

28

Husqvarna 503846101

Buffer

$7.99

$

In Stock, Qty 10

0

29

Husqvarna 505220937

Bar Bolt

$

$

Not available

30

Husqvarna 503226504

Nut

$6.49

$

In Stock, Qty 5

0

31

Husqvarna 506412301

Gasket

$9.49

$

In Stock, only 2 left!

0

32

Husqvarna 506376902

Gasket Muffler
(Superseded to 588932501)

$10.99

$

In Stock, only 2 left!

0

33

Husqvarna 506377003

Gasket Crankcase

$7.99

$

In Stock, only 2 left!

0

34

Husqvarna 544219302

Insert

$4.99

$

In Stock, Qty 10

0

35

Husqvarna 506376701

Cylinder Base Gasket

$9.49

$

In Stock, only 1 left!

0

36

Husqvarna 506376803

Gasket Carburettor
(Superseded to 506376804)

$6.49

$

In Stock, only 2 left!

0
