K 750 Rescue - Husqvarna Rescue Saw (2009-07) STARTER Parts Diagram

Rescue Saw

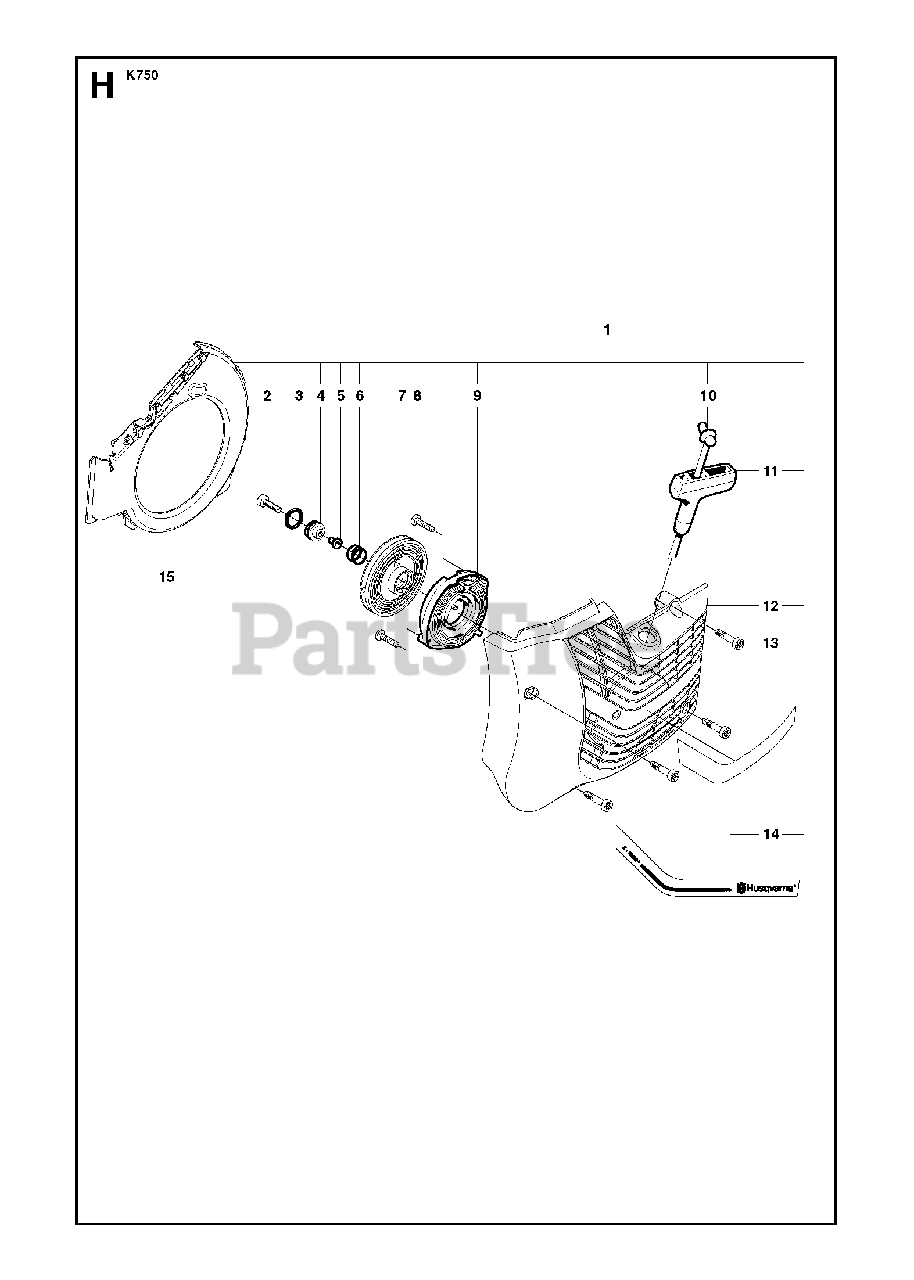

STARTER Parts Diagram

  • Title

1

Husqvarna 506 38 56-13

STARTERIncl. 2 - 15
(Superseded to 584886805)

$109.99

$

In Stock, only 1 left!

0

2

Husqvarna 510 26 92-22

SCREW ITXSCT

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 740 43 13-00

O-RING

$7.49

$

In Stock, Qty 10

0

4

Husqvarna 506 25 14-01

GROMMET
(Superseded to 510000801)

$7.99

$

In Stock, Qty 11

0

5

Husqvarna 506 26 31-01

SPACING SLEEVE

$10.99

$

In Stock, Qty 9

0

6

Husqvarna 506 25 30-01

COMPRESSION SPRING

$7.49

$

In Stock, Qty 10

0

7

Husqvarna 506 25 81-02

STARTER PULLEY

$

$

Not available

8

Husqvarna 503 21 28-10

SCREW CCRPANT

$3.99

$

In Stock, Qty 12

0

9

Husqvarna 506 25 89-01

RECOIL SPRING

$

$

Not available

10

Husqvarna 506 33 56-15

CORD

$19.99

$

In Stock, Qty 6

0

10

Husqvarna 506 33 56-50

STARTER CORD50 m

$538.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503 12 79-01

STARTER HANDLE
(Superseded to 584257903)

$7.49

$

In Stock, only 2 left!

0

12

Husqvarna 506 36 92-03

STARTER COVER

$65.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503 21 53-21

SCREW ITXSCM

$4.99

$

In Stock, Qty 8

0

14

Husqvarna 544 89 08-02

LABEL

$

$

Not available

15

Husqvarna 544 38 39-01

AIR CONDUCTOR

$7.99

$

Usually ships in 3-10 days

0
