K 750 Rescue - Husqvarna Rescue Saw (2009-07) CYLINDER, PISTON & MUFFLER Parts Diagram

Rescue Saw

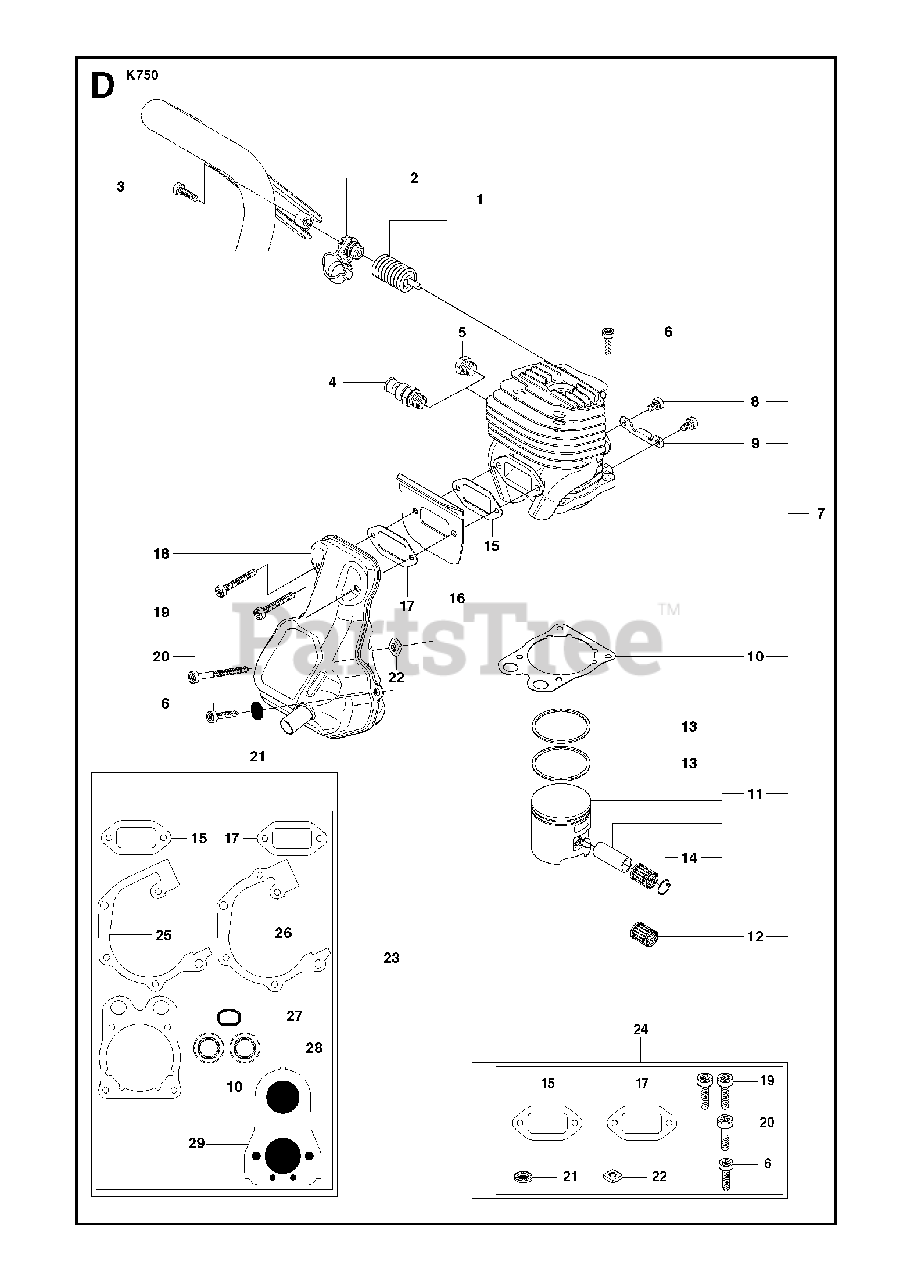

CYLINDER, PISTON & MUFFLER Parts Diagram

  • Title

1

Husqvarna 505 42 45-01

ANTIVIBRATION ELEMENTIncl. 2

$37.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505 42 44-01

SPRING HOLDER
(Superseded to 505424501)

$37.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544 06 12-01

SCREW ITXSCM

$4.99

$

In Stock, Qty 6

0

4

Husqvarna 503 71 53-01

DECOMPRESSION VALVE

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503 55 22-01

PLUG

$13.99

$

In Stock, only 1 left!

0

6

Husqvarna 503 21 53-25

SCREW ITXSCM

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 520 75 73-04

CYLINDER ASSYIncl. 8 - 12
(Superseded to 581476103)

$662.99

$

In Stock, only 2 left!

0

8

Husqvarna 503 21 53-16

SCREW ITXSCM

$4.99

$

In Stock, only 4 left!

0

9

Husqvarna 506 36 88-01

BRACKET

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 506 37 67-01

CYLINDER

$9.49

$

In Stock, only 1 left!

0

11

Husqvarna 506 37 24-01

PISTON ASSYIncl. 13 - 14
(Superseded to 506372403)

$172.99

$

In Stock, only 2 left!

0

12

Husqvarna 503 25 56-01

NEEDLE BEARING

$21.99

$

In Stock, only 1 left!

0

13

Husqvarna 503 28 90-47

PISTON RING
(Superseded to 522990101)

$30.99

$

In Stock, only 3 left!

0

14

Husqvarna 737 43 12-00

SNAP RING

$7.49

$

In Stock, only 2 left!

0

15

Husqvarna 506 41 23-01

GASKET

$9.49

$

In Stock, only 2 left!

0

16

Husqvarna 506 37 58-02

COOLING AIR CONDUCTOR

$

$

Not available

17

Husqvarna 506 37 69-02

GASKET
(Superseded to 588932501)

$10.99

$

In Stock, only 2 left!

0

18

Husqvarna 506 36 42-04

MUFFLER ASSY
(Superseded to 587668702)

$80.99

$

In Stock, only 4 left!

0

19

Husqvarna 503 21 53-40

SCREW ITXSCM

$6.49

$

In Stock, only 3 left!

0

20

Husqvarna 503 21 53-56

SCREW ITXSCM

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 503 23 04-02

WASHER

$7.99

$

In Stock, only 2 left!

0

22

Husqvarna 503 22 65-04

SQUARE NUT

$6.49

$

In Stock, Qty 5

0

23

Husqvarna 506 38 53-05

GASKET KITIncl. 10, 15, 17, 25 - 29
(Superseded to 581357401)

$34.99

$

Usually ships in 3-10 days

0

24

Husqvarna 505 25 96-01

MUFFLER KITIncl. 6, 15, 17, 19 - 22
(Superseded to 592778301)

$100.99

$

In Stock, only 1 left!

0

25

Husqvarna 506 37 70-02

GASKET

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 506 37 70-03

GASKET

$7.99

$

In Stock, only 2 left!

0

27

Husqvarna 544 21 93-02

INSERT

$4.99

$

In Stock, Qty 10

0

28

Husqvarna 503 26 02-04

SEALING RING

$14.99

$

In Stock, only 3 left!

0

29

Husqvarna 506 37 68-03

GASKET
(Superseded to 506376804)

$6.49

$

In Stock, only 2 left!

0
