K 750 Rescue - Husqvarna Rescue Saw (2007-07) FUEL TANK Parts Diagram

Rescue Saw

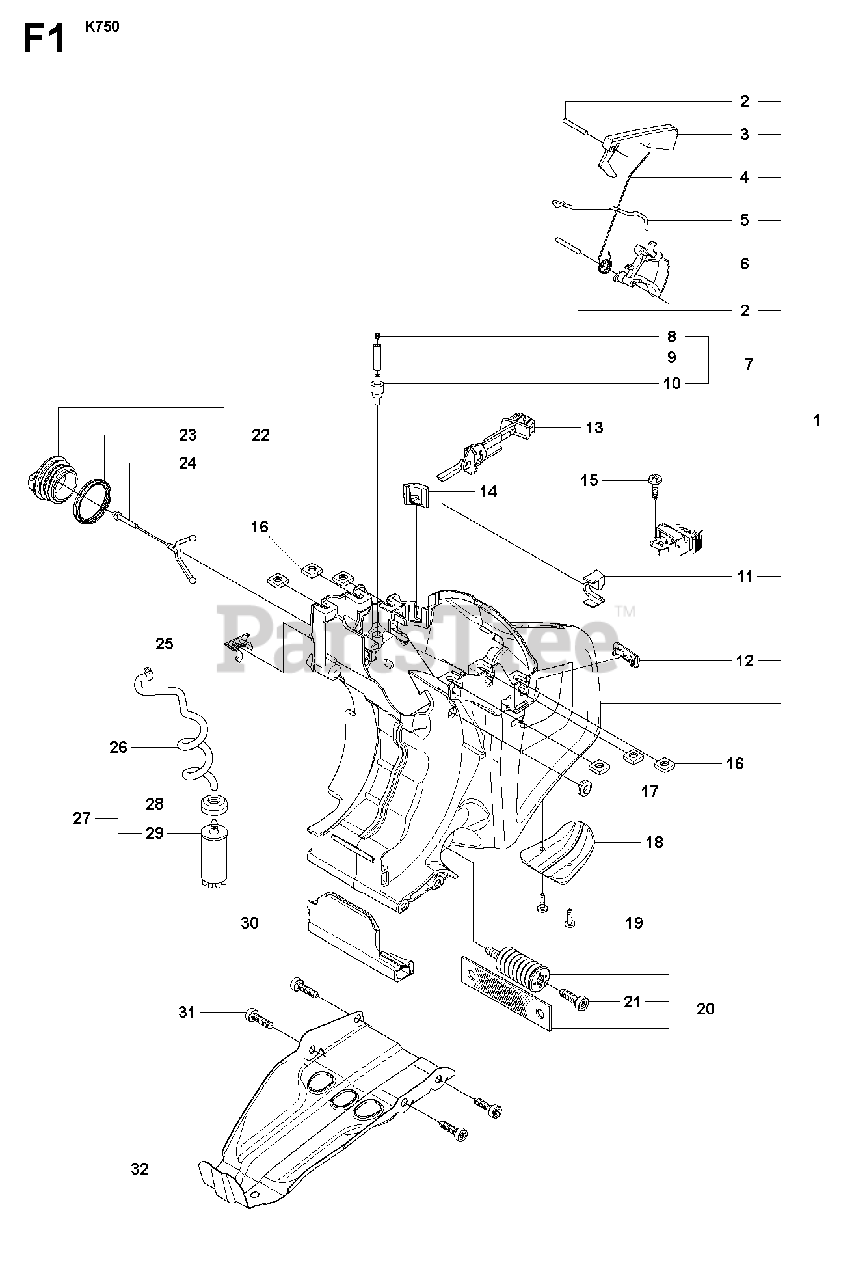

FUEL TANK Parts Diagram

  • Title

1

Husqvarna 506 38 65-12

FUEL TANKIncl. 2 - 7, 11, 12
(Superseded to 593281802)

$

$

Not available

2

Husqvarna 720 12 40-20

PARALLEL PIN
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

3

Husqvarna 506 22 28-02

THROTTLE LOCKOUT
(Superseded to 588086001)

$24.99

$

In Stock, only 4 left!

0

4

Husqvarna 506 37 95-01

SPRING
(Superseded to 595835701)

$14.99

$

In Stock, only 3 left!

0

5

Husqvarna 506 37 13-01

THROTTLE ROD
(Superseded to 506371302)

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506 37 20-03

THROTTLE TRIGGER
(Superseded to 588086201)

$19.99

$

In Stock, Qty 10

0

7

Husqvarna 506 38 66-01

TANK VENT ASSYIncl. 8 - 10

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 504 35 72-01

PLUG

$9.99

$

In Stock, Qty 7

0

9

Husqvarna Construction 501 76 83-28

FUEL HOSE

$

$

Not available

10

Husqvarna 503 16 40-01

TANK VENT

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544 39 32-01

HOSE CLIP

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 501 37 13-01

LID

$7.99

$

In Stock, only 1 left!

0

13

Husqvarna 544 22 90-01

CHOKE CONTROL
(Superseded to 544229002)

$19.99

$

In Stock, only 3 left!

0

14

Husqvarna 506 37 80-01

GROMMET

$12.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503 21 28-06

SCREW CCRPANT

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 503 22 65-04

SQUARE NUT

$6.49

$

In Stock, Qty 13

0

17

Husqvarna 501 27 13-02

CABLE GROMMET

$7.49

$

In Stock, only 1 left!

0

18

Husqvarna 506 38 67-02

GROUND SUPPORT

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 503 21 45-16

SCREW CRCSFT

$4.99

$

In Stock, Qty 12

0

20

Husqvarna 537 21 03-07

ANTIVIBRATION ELEMENTIncl. 21

$24.99

$

Usually ships in 3-10 days

0

21

Husqvarna 544 06 12-01

SCREW ITXSCM

$4.99

$

In Stock, Qty 6

0

22

Husqvarna 506 25 59-03

TANK CAP ASSYIncl. 23, 24
(Superseded to 506255906)

$17.99

$

In Stock, only 3 left!

0

23

Husqvarna 506 29 21-01

GASKET

$9.49

$

In Stock, only 2 left!

0

24

Husqvarna 503 57 89-01

HOLDER

$9.99

$

In Stock, Qty 15

0

25

Husqvarna 506 39 46-01

HUB CAP
(Superseded to 506394602)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 503 57 76-03

FUEL HOSE
(Superseded to 581756203)

$12.99

$

In Stock, only 1 left!

0

27

Husqvarna 506 26 41-11

FUEL FILTERIncl. 28, 29

$14.99

$

Usually ships in 3-10 days

0

28

Husqvarna 506 27 11-01

HOSE CLAMP

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 506 26 41-01

FUEL FILTER

$13.99

$

In Stock, Qty 16

0

30

Husqvarna 506 38 15-01

HEAT SHIELD

$7.99

$

Usually ships in 3-10 days

0

31

Husqvarna 503 21 54-20

SCREW ITXSCT

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 506 37 19-02

BASEPLATE

$18.99

$

Usually ships in 3-10 days

0
