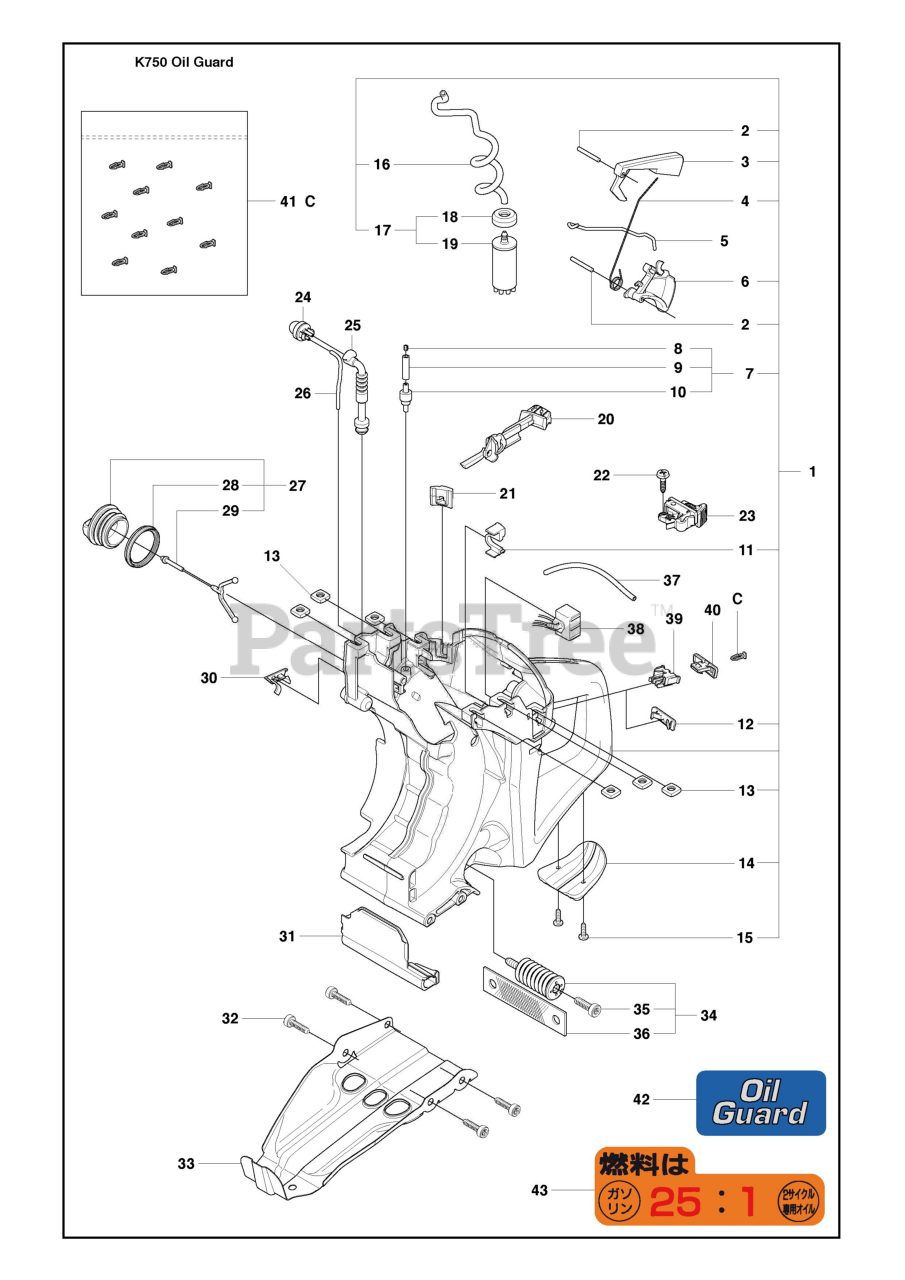

K 750 - Husqvarna Cut-Off Saw (2009-07) Fuel Tank Oil Guard And Vibration Absorber And Tank Cap Assy And Purge Parts Diagram

Cut-Off Saw

Fuel Tank Oil Guard And Vibration Absorber And Tank Cap Assy And Purge Parts Diagram

  • Title

1

Husqvarna 506386508

Fuel Tank
(Superseded to 506386513)

Note: Incl. 2 - 4, 3 - 7, 11 - 17, Purge

$

$

Not available

1

Husqvarna 506386512

Fuel Tank
(Superseded to 593281802)

Note: Incl. 2 - 4, 3 - 7, 11 - 17

$

$

Not available

2

Husqvarna 720124020

Parallel Pin
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

3

Husqvarna 506222802

Throttle Lockout
(Superseded to 588086001)

$24.99

$

In Stock, only 4 left!

0

3

Husqvarna 506222803

Throttle Lockout

Note: Blue Oilguard

$

$

Not available

4

Husqvarna 506379501

Spring
(Superseded to 595835701)

$14.99

$

In Stock, only 3 left!

0

5

Husqvarna 506371301

Throttle Rod
(Superseded to 506371302)

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506372003

Throttle Trigger
(Superseded to 588086201)

$19.99

$

In Stock, Qty 10

0

6

Husqvarna 506372004

Throttle Trigger

Note: Blue Oilguard

$

$

Not available

7

Husqvarna 506386601

Tank Vent Assy

Note: Incl. 8 - 10

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 504357201

Sinter Plug

$9.99

$

In Stock, Qty 7

0

9

Husqvarna 544324929

Fuel Hose

$

$

Not available

10

Husqvarna 503164001

Tank Vent

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544393201

Hose Clip

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 501371301

Lid

$7.99

$

In Stock, only 1 left!

0

13

Husqvarna 503226504

Nut

$6.49

$

In Stock, Qty 13

0

14

Husqvarna 506386702

Ground Support

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503214516

Screw

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 544325003

Fuel Hose
(Superseded to 581756203)

$12.99

$

In Stock, only 1 left!

0

17

Husqvarna 506264111

Fuel Filter

Note: Incl. 18 - 19

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 506271101

Hose Clamp

$6.49

$

In Stock, only 1 left!

0

19

Husqvarna 506264101

Fuel Filter

$13.99

$

In Stock, Qty 15

0

20

Husqvarna 544229002

Choke Control

$19.99

$

In Stock, only 3 left!

0

21

Husqvarna 506378001

Grommet

$12.99

$

Usually ships in 3-10 days

0

22

Husqvarna 503212810

Screw

$3.99

$

In Stock, Qty 11

0

23

Husqvarna 506318602

Stop Switch
(Superseded to 506318604)

$31.99

$

In Stock, only 2 left!

0

24

Husqvarna 503936601

Primer Housing

Note: Purge

$21.99

$

Usually ships in 3-10 days

0

25

Husqvarna 505195201

Fuel Hose

Note: Purge

$37.99

$

In Stock, only 1 left!

0

26

Husqvarna 537042414

Fuel Hose

Note: Purge

$7.99

$

In Stock, only 2 left!

0

27

Husqvarna 506255903

Tank Cap Assy
(Superseded to 506255906)

Note: Incl. 28 - 29

$17.99

$

In Stock, only 3 left!

0

28

Husqvarna 506292101

Gasket

$9.49

$

In Stock, only 2 left!

0

29

Husqvarna 503578901

Tank Cap Holder

$9.99

$

In Stock, Qty 15

0

30

Husqvarna 506394602

Cap

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 506381501

Heat Shield

$7.99

$

Usually ships in 3-10 days

0

32

Husqvarna 503215420

Screw

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 506371902

Base Plate

$18.99

$

Usually ships in 3-10 days

0

34

Husqvarna 537210307

Vibration Absorber

Note: Incl. 35 - 36

$24.99

$

Usually ships in 3-10 days

0

35

Husqvarna 544061201

Screw

$4.99

$

In Stock, Qty 5

0

36

Husqvarna 544238201

Band

$9.49

$

Usually ships in 3-10 days

0

37

Husqvarna 544324937

Fuel Hose
(Superseded to 581756137)

Note: Oil Guard

$9.49

$

Usually ships in 3-10 days

0

38

Husqvarna 544384101

Electronic Box

Note: Oil Guard

$

$

Not available

39

Husqvarna 501018801

Housing

Note: Oil Guard

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 501019401

Switch

Note: Oil Guard

$10.99

$

Usually ships in 3-10 days

0

41

Husqvarna 502233301

Kit Break Pin

Note: Oil Guard, Incl. 10 pins

$25.99

$

Usually ships in 3-10 days

0

42

Husqvarna 501318901

Label

Note: Oil Guard

$

$

Not available

43

Husqvarna 506313001

Label

Note: Japan only

$19.99

$

Usually ships in 3-10 days

0
