K 750 - Husqvarna Cut-Off Saw (2009-07) Belt Guard Parts Diagram

Cut-Off Saw

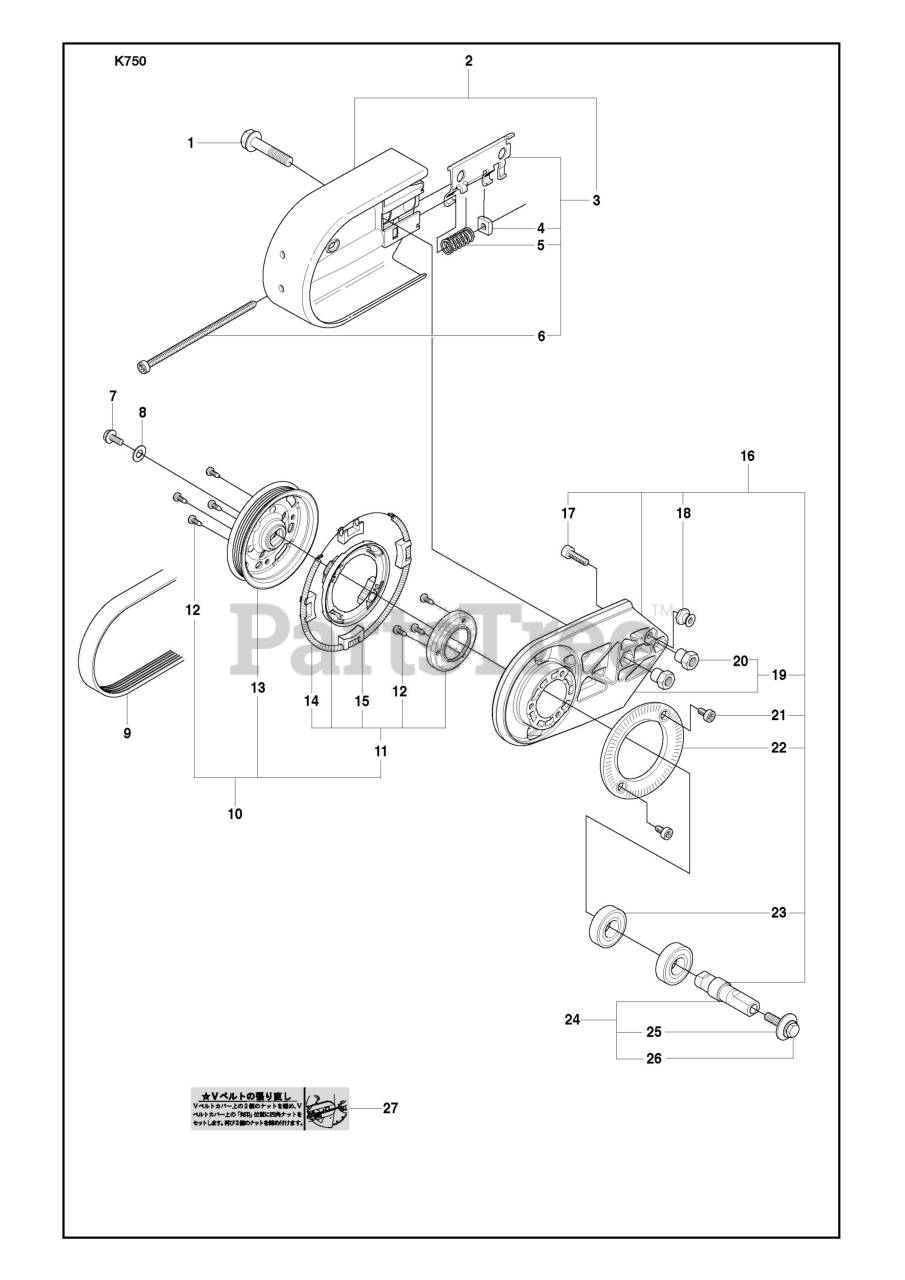

Belt Guard Parts Diagram

  • Title
1

Husqvarna 506284401

Collar Screw

$9.49

$

In Stock, only 3 left!

0

2

Husqvarna 506393602

Belt Guard

Note: Incl. 3

$45.99

$

In Stock, only 4 left!

0

3

Husqvarna 506266604

Belt Tensioner Assy

Note: Incl. 4 - 6

$31.99

$

In Stock, only 2 left!

0

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 506266801

Compression Spring

$7.99

$

Usually ships in 3-10 days

0

$9.49

$

Usually ships in 3-10 days

0

$7.99

$

In Stock, only 3 left!

0

8

Husqvarna 503230116

Washer Steel

$3.49

$

In Stock, only 2 left!

0

$51.99

$

In Stock, only 3 left!

0

10

Husqvarna 504037007

Pulley With Retarder
(Superseded to 588470403)

Note: Incl. 11 - 13

$81.99

$

In Stock, only 1 left!

0

11

Husqvarna 505445403

Retarder Cpl

Note: Incl. 12, 14 - 15

$

$

Not available

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 504062201

Pulley
(Superseded to 590895801)

$31.99

$

In Stock, Qty 6

0

$9.49

$

In Stock, only 1 left!

0

15

Husqvarna 544440402

Brake Shoe

$9.49

$

In Stock, only 1 left!

0

16

Husqvarna 506394208

Bearing Housing
(Superseded to 581351710)

Note: Incl. 17 - 19, 21 - 23

$148.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 3 left!

0

18

Husqvarna 506143201

Torsion Stop

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506394206

Bearing Housing
(Superseded to 581351707)

Note: Incl. 20

$

$

Not available

$12.99

$

In Stock, only 2 left!

0

$4.99

$

In Stock, Qty 13

0

22

Husqvarna 506288401

Ratchet Flange

$9.49

$

In Stock, only 1 left!

0

23

Husqvarna 503252101

Ball Bearing

$33.99

$

In Stock, only 2 left!

0

24

Husqvarna 506298365

Shaft

Note: Incl. 25 - 26

$107.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506139511

Washer
(Superseded to 581855201)

$28.99

$

Usually ships in 3-10 days

0

26

Husqvarna 506139601

Collar Screen

$28.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506309705

Label

Note: Japan only

$15.99

$

Usually ships in 3-10 days

0
