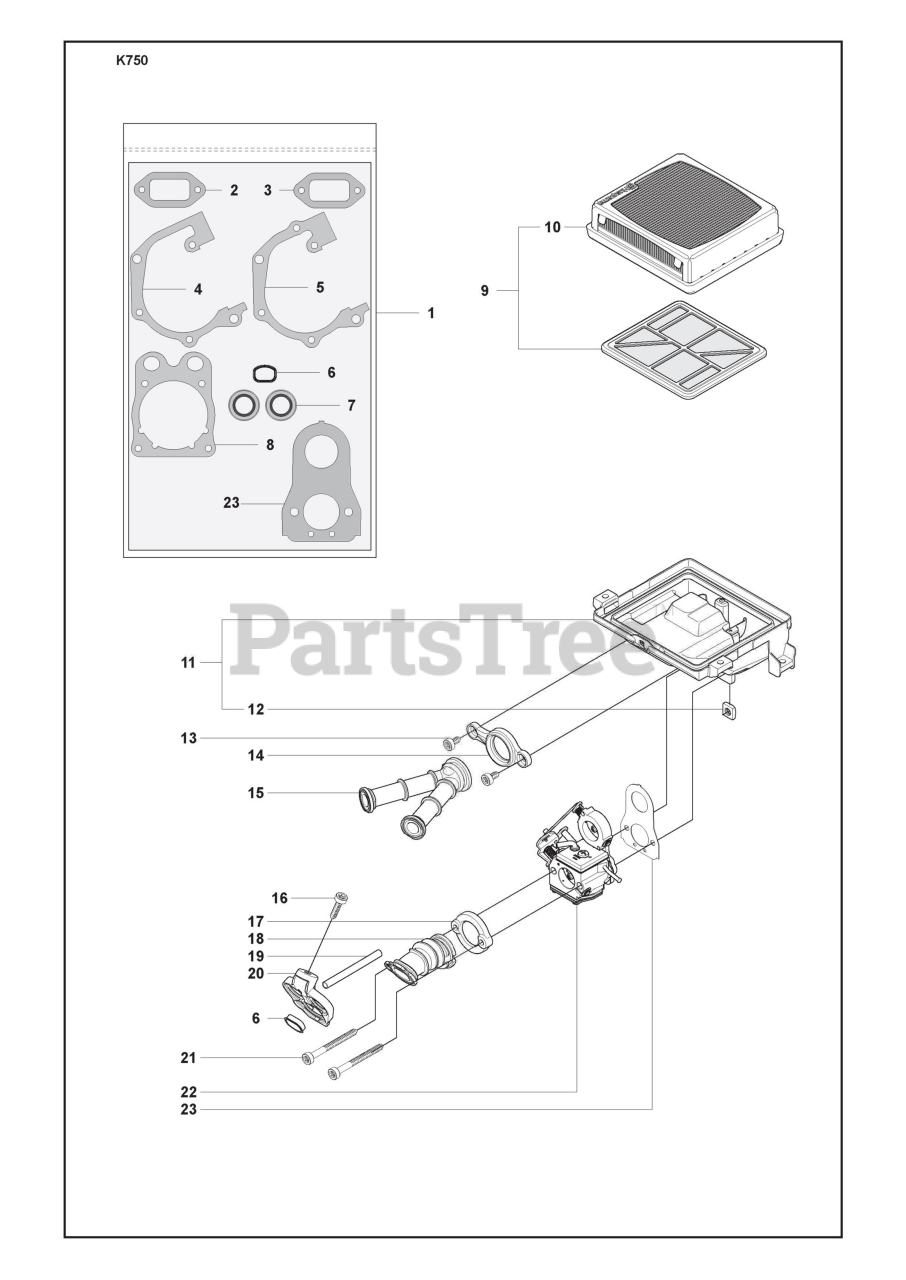

K 750 - Husqvarna Cut-Off Saw (2008-10) Air Filter Paper And Gasket Kit And Carburettor Parts Diagram

Cut-Off Saw

Air Filter Paper And Gasket Kit And Carburettor Parts Diagram

  • Title

1

Husqvarna 506385305

GASKET KIT
(Superseded to 581357401)

Note: Incl. 2 - 8, 23

$34.99

$

In Stock, only 1 left!

0

2

Husqvarna 506412301

GASKET

$9.49

$

In Stock, only 2 left!

0

3

Husqvarna 506376902

GASKET MUFFLER
(Superseded to 588932501)

$10.99

$

In Stock, only 2 left!

0

4

Husqvarna 506377002

GASKET CRANKCASE

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 506377003

GASKET CRANKCASE

$7.99

$

In Stock, only 2 left!

0

6

Husqvarna 544219302

INSERT

$4.99

$

In Stock, Qty 7

0

7

Husqvarna 503260204

SEALING RING

$14.99

$

In Stock, Qty 6

0

8

Husqvarna 506376701

CYLINDER BASE GASKET

$9.49

$

In Stock, only 1 left!

0

9

Husqvarna 544181602

FILTER

Note: Incl. 10

$44.99

$

In Stock, only 1 left!

0

10

Husqvarna 506367203

AIR FILTER PAPER

$37.99

$

In Stock, only 3 left!

0

11

Husqvarna 506393202

CARBURETTOR BRACKET
(Superseded to 575354001)

Note: Incl. 12

$35.99

$

In Stock, only 1 left!

0

12

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 13

0

13

Husqvarna 503215310

SCREW

$4.99

$

In Stock, Qty 13

0

14

Husqvarna 506370601

FLANGE INLET PIPE

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 506369801

INLET PIPE
(Superseded to 525733201)

$59.99

$

In Stock, only 4 left!

0

16

Husqvarna 503215320

SCREW

$4.99

$

In Stock, only 3 left!

0

17

Husqvarna 506370501

FLANGE INLET PIPE
(Superseded to 576890101)

$

$

Not available

18

Husqvarna 506369701

INLET PIPE
(Superseded to 525733101)

$31.99

$

In Stock, only 1 left!

0

19

Husqvarna 503400609

IMPULSE HOSE
(Superseded to 586227701)

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544352601

PLATE

$30.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503215356

SCREW

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 503283209

CARBURETTOR

Note: Zama C3-EL29

$125.99

$

Usually ships in 3-10 days

0

22

Husqvarna 510181201

CARBURETTOR
(Superseded to 578243401)

Note: Japan only

$219.99

$

Usually ships in 3-10 days

0

23

Husqvarna 506376803

GASKET CARBURETTOR
(Superseded to 506376804)

$6.49

$

In Stock, only 2 left!

0
