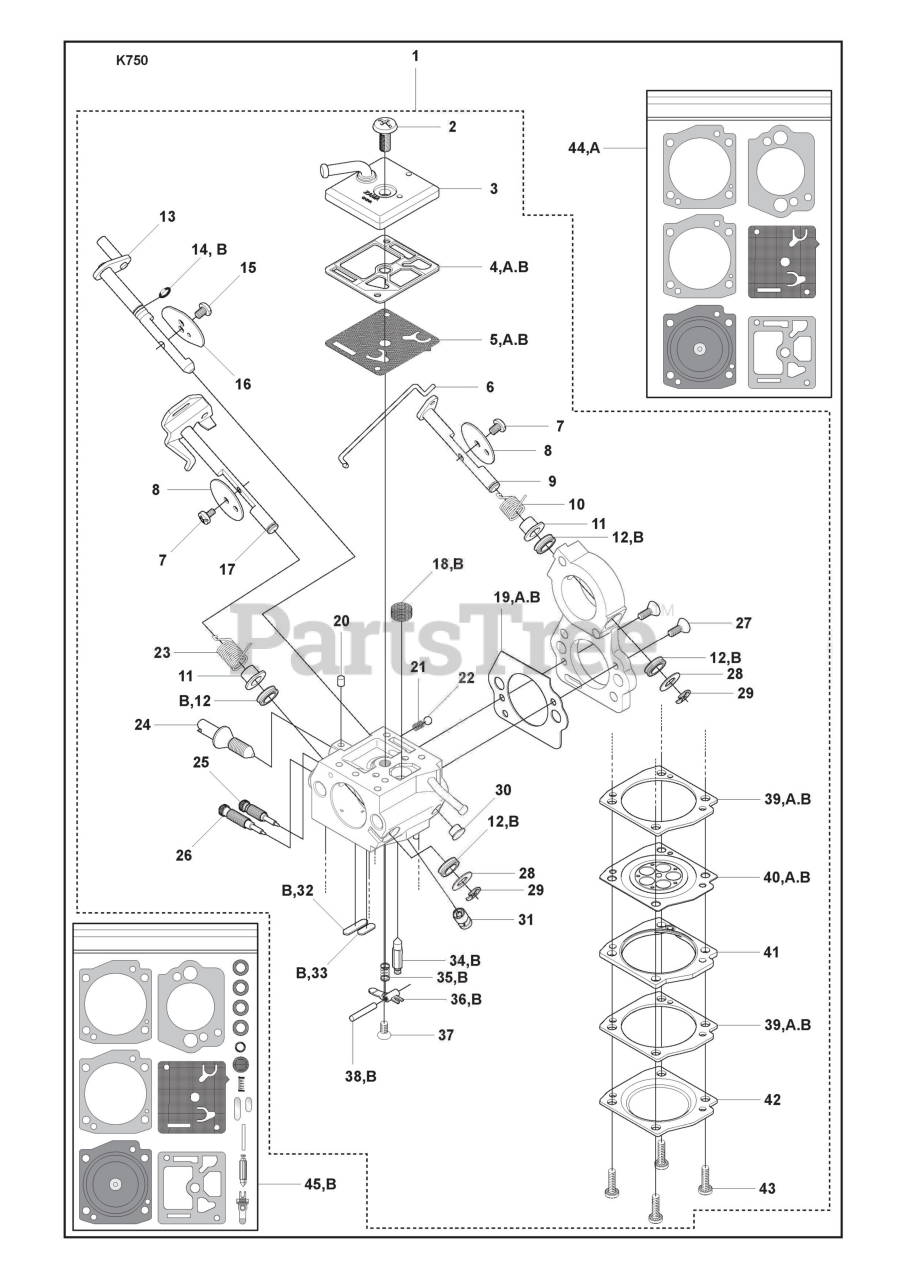

K 750 - Husqvarna Cut-Off Saw (2007-07) Carburetor Parts Diagram

Cut-Off Saw

Carburetor Parts Diagram

  • Title
1

Husqvarna 503283209

CARBURETTOR

Note: Zama C3-EL29, Incl. 2 - 43

$125.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, Qty 5

0

3

Husqvarna 544836401

PUMP COVER

$35.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503616601

GASKET PUMP

$5.49

$

In Stock, Qty 6

0

5

Husqvarna 506396001

DIAPHRAGM PUMP
(Superseded to 537380201)

$24.99

$

In Stock, only 2 left!

0

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

$18.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506397101

SHAFT ASSY

$17.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

12

$

$

Not available

13

Husqvarna 506397301

SHAFT ASSY CHOKE

$

$

Not available

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

17

Husqvarna 506397401

SHAFT ASSY

$17.99

$

Usually ships in 3-10 days

0

18

$4.99

$

In Stock, only 2 left!

0

$10.99

$

Usually ships in 3-10 days

0

$10.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, Qty 6

0

$9.49

$

Usually ships in 3-10 days

0

$9.49

$

Usually ships in 3-10 days

0

$25.99

$

Usually ships in 3-10 days

0

$24.99

$

Usually ships in 3-10 days

0

$5.49

$

Usually ships in 3-10 days

0

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 506396101

NOZZLE ASSY

$31.99

$

In Stock, only 1 left!

0

32

Husqvarna 503535601

PLUG WELCH

$7.49

$

In Stock, Qty 6

0

$4.99

$

In Stock, only 2 left!

0

$27.99

$

In Stock, only 1 left!

0

$

$

Not available

$7.99

$

In Stock, only 3 left!

0

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

$11.99

$

Usually ships in 3-10 days

0

40

Husqvarna 506395701

DIAPHRAGM ASSY

$24.99

$

Usually ships in 3-10 days

0

$9.49

$

Usually ships in 3-10 days

0

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

44

Husqvarna 506409901

GASKET KIT

Note: Incl. 4, 5, 19, 39, 40

$25.99

$

In Stock, only 4 left!

0

45

Husqvarna 506410001

GASKET KIT CARB

Note: Incl. 4, 5, 12, 14, 32 - 36, 38 - 40

$95.99

$

Usually ships in 3-10 days

0
