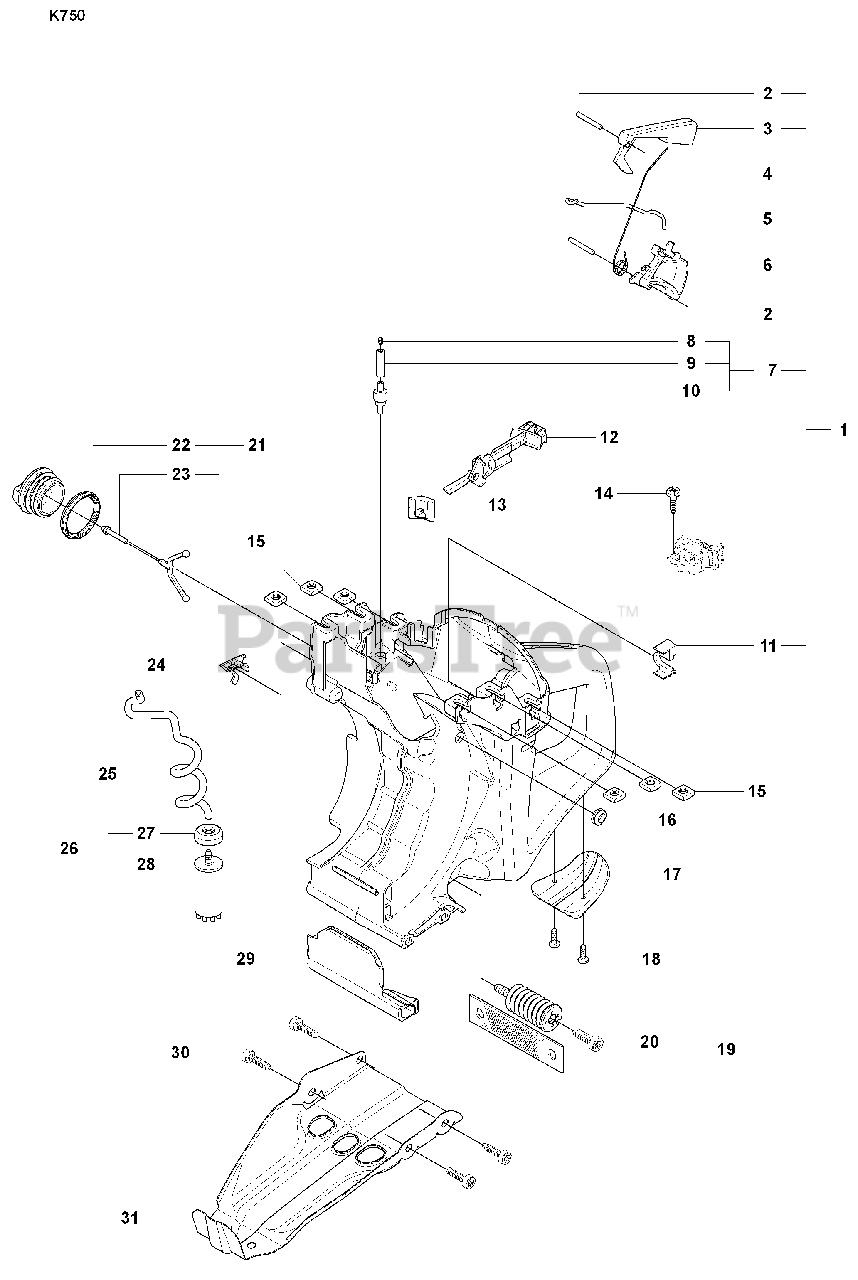

K 750 - Husqvarna Cut-Off Saw (2007-01) Fuel Tank Parts Diagram

Cut-Off Saw

Fuel Tank Parts Diagram

  • Title

1

Husqvarna 506386512

FUEL TANK
(Superseded to 593281802)

Note: Incl. 2, 3, 4, 5, 6, 7, 11

$

$

Not available

2

Husqvarna 720124020

PARALLEL PIN
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

3

Husqvarna 506222802

THROTTLE LOCKOUT
(Superseded to 588086001)

$24.99

$

In Stock, only 4 left!

0

4

Husqvarna 506379501

SPRING
(Superseded to 595835701)

$14.99

$

In Stock, only 3 left!

0

5

Husqvarna 506371301

THROTTLE ROD
(Superseded to 506371302)

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506372003

THROTTLE TRIGGER
(Superseded to 588086201)

$19.99

$

In Stock, Qty 10

0

7

Husqvarna 506386601

TANK VENT ASSY

Note: Incl. 8, 9, 10

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 504357201

FILTER PLUG

$9.99

$

In Stock, Qty 6

0

9

Husqvarna 501768328

FUEL HOSE

$

$

Not available

10

Husqvarna 503164001

TANK VENT

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544393201

HOSE CLIP

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 544229001

CHOKE CONTROL
(Superseded to 544229002)

$19.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506378001

GROMMET

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503212806

SCREW CCRPANT

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 8

0

16

Husqvarna 501271302

CABLE GROMMET

$7.49

$

In Stock, only 1 left!

0

17

Husqvarna 506386702

GROUND SUPPORT

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 503214516

SCREW

$4.99

$

In Stock, Qty 12

0

19

Husqvarna 537210307

AV-ELEMENT

Note: Incl. 20

$24.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544061201

SCREW

$4.99

$

In Stock, only 3 left!

0

21

Husqvarna 506255903

TANK CAP ASSY
(Superseded to 506255906)

Note: Incl. 22, 23

$17.99

$

In Stock, only 3 left!

0

22

Husqvarna 506292101

GASKET

$9.49

$

In Stock, only 2 left!

0

23

Husqvarna 503578901

HOLDER

$9.99

$

In Stock, Qty 15

0

24

Husqvarna 506394601

CAP
(Superseded to 506394602)

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 503577603

FUEL HOSE
(Superseded to 581756203)

$12.99

$

In Stock, only 2 left!

0

26

Husqvarna 506264111

FUEL FILTER

Note: Incl. 27, 28

$14.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506271101

HOSE CLAMP

$6.49

$

In Stock, only 1 left!

0

28

Husqvarna 506264101

FUEL FILTER

$13.99

$

In Stock, Qty 12

0

29

Husqvarna 506381501

HEAT SHIELD

$7.99

$

Usually ships in 3-10 days

0

30

Husqvarna 503215420

SCREW

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 506371902

BASE PLATE

$18.99

$

Usually ships in 3-10 days

0
