K 750 (544936207) - Husqvarna Cut-Off Saw (2010-02) CYLINDER Parts Diagram

Cut-Off Saw

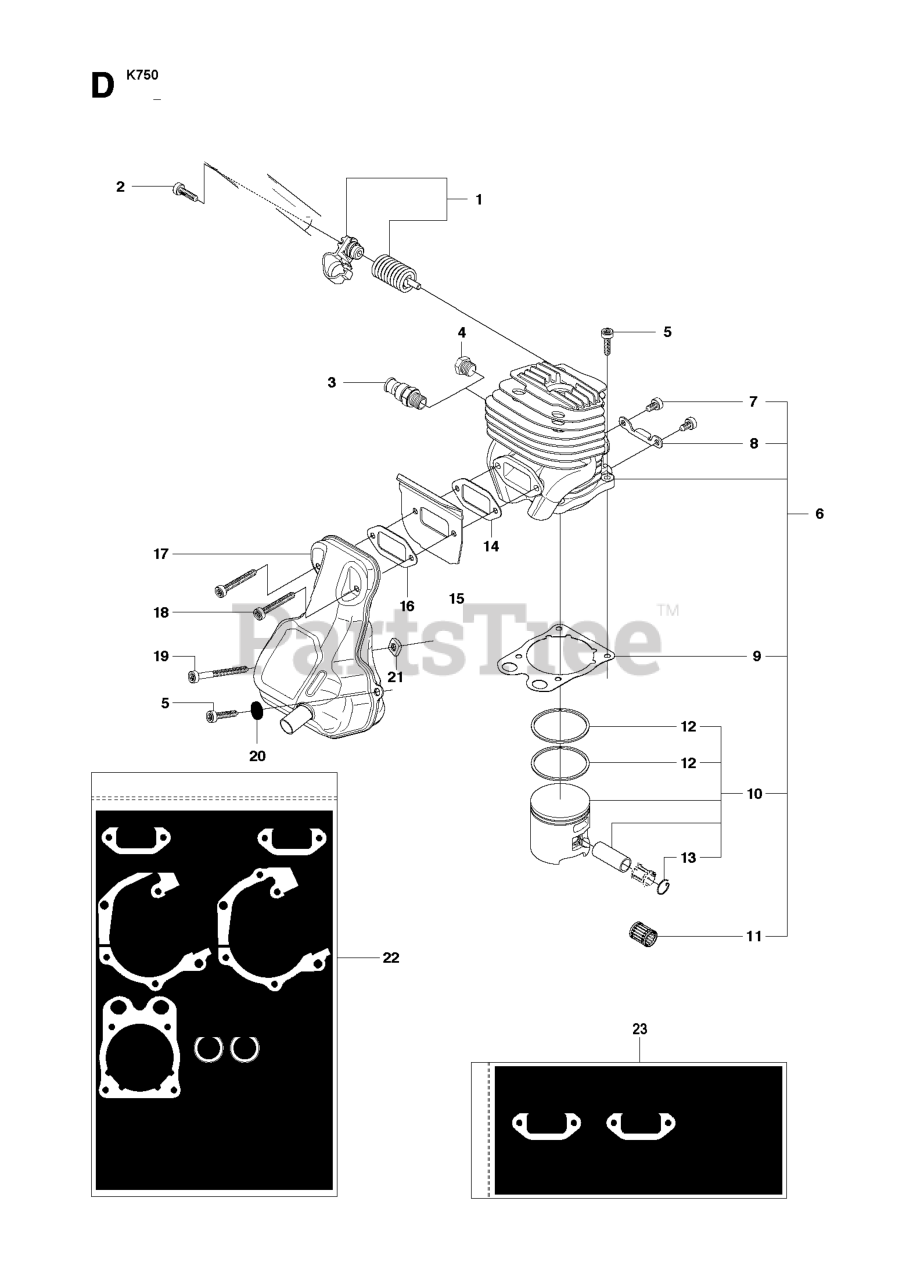

CYLINDER Parts Diagram

  • Title

21

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 8

0

9

Husqvarna 506376701

GASKET

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 503715301

DECOMPRESSION VALVE

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 737431200

WRIST PIN CLIP

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 506364204

MUFFLER - NO MOUNTING KIT
(Superseded to 587668702)

$80.99

$

In Stock, only 4 left!

0

24

Husqvarna 506377002

GASKET

$7.99

$

Usually ships in 3-10 days

0

28

Husqvarna 506376803

RP GASKET CARBURETOR
(Superseded to 506376804)

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 503215316

SCREW

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 503230402

DOUBLE WASHER

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506412301

GASKET

$9.49

$

In Stock, only 2 left!

0

15

Husqvarna 506375802

PLATE

$

$

Not available

8

Husqvarna 506368801

BRACKET

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 503289047

%PISTON RING
(Superseded to 522990101)

$30.99

$

In Stock, only 3 left!

0

6

Husqvarna 520757304

CYLINDER ASSY
(Superseded to 581476103)

$662.99

$

In Stock, only 2 left!

0

26

Husqvarna 544219302

INSERT

$4.99

$

In Stock, Qty 5

0

11

Husqvarna 503255601

SUPPORT BUSHING

$21.99

$

In Stock, only 1 left!

0

18

Husqvarna 503215340

SCREW

$6.49

$

In Stock, Qty 7

0

23

Husqvarna 505259601

MUFFLER, MOUNTING KIT K750
(Superseded to 592778301)

$100.99

$

In Stock, only 1 left!

0

19

Husqvarna 503215356

SCREW

$6.49

$

In Stock, Qty 5

0

27

Husqvarna 503260204

SEALING RING

$14.99

$

In Stock, only 2 left!

0

1

Husqvarna 505424501

SPRING HOLDER

$37.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506377003

GASKET

$7.99

$

Usually ships in 3-10 days

0

22

Husqvarna 506385305

GASKET KIT
(Superseded to 581357401)

$34.99

$

In Stock, only 1 left!

0

10

Husqvarna 506372401

PISTON CPL.
(Superseded to 506372403)

$172.99

$

In Stock, only 2 left!

0

2

Husqvarna 544061201

SCREW

$4.99

$

In Stock, only 3 left!

0

16

Husqvarna 506376902

GASKET
(Superseded to 588932501)

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 2 left!

0

5

Husqvarna 503215325

SCREW

$4.99

$

In Stock, only 3 left!

0
