K 61 - Tuff Torq Transaxle Transaxle Case Assy Parts Diagram

Transaxle

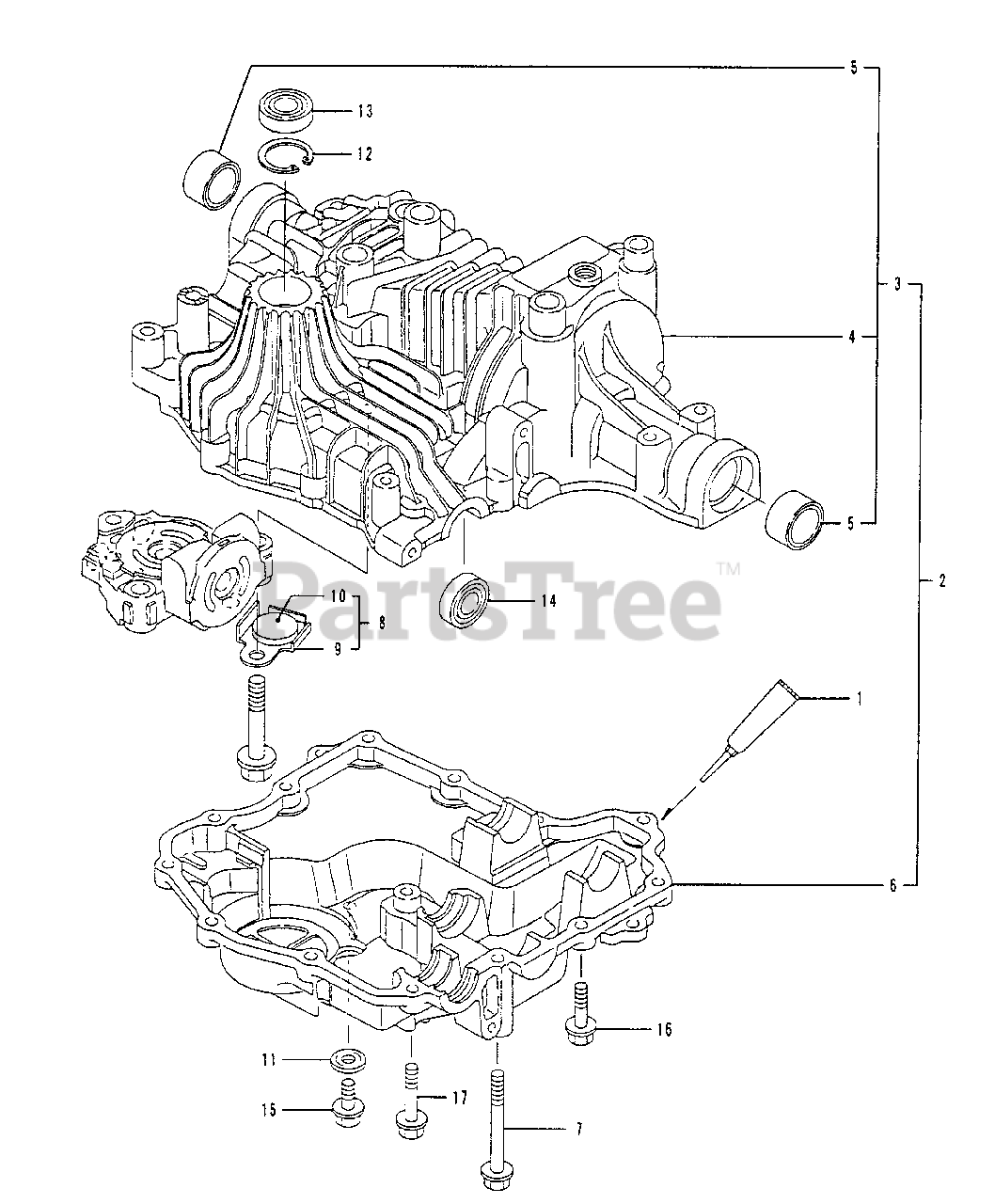

Transaxle Case Assy Parts Diagram

  • Title

$

$

Currently unavailable

2

Husqvarna 19215424090

TRANSAXLE CASE SET

$

$

Currently unavailable

3

Husqvarna 19215424101

UPPER CASE COMP.

$

$

Currently unavailable

4

Husqvarna 19215424121

UPPER CASE

Note: SERVICE: NO

$

$

Currently unavailable

5

Husqvarna 19215434240

BUSHING 25.4

Note: SERVICE: NO

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Husqvarna 19215424310

BOLT 8 X 75

$

$

Currently unavailable

8

Husqvarna 19215424360

MAGNET, CMP

$

$

Currently unavailable

9

Husqvarna 19215424370

HOLDER, MAGNET

Note: SERVICE: NO

$

$

Currently unavailable

10

Husqvarna 19215424380

MAGNET. 30 X 5

Note: SERVICE: NO

$

$

Currently unavailable

11

Husqvarna 22190080000

WASHER, SEAL 8

$

$

Currently unavailable

$

$

Currently unavailable

13

Husqvarna 24421153507

SEAL TC153507

$

$

Currently unavailable

14

Husqvarna 24421173507

SEAL TC173507

$

$

Currently unavailable

15

Husqvarna 26106080122

BOLT 8 X 12

$

$

Currently unavailable

16

Husqvarna 26476080302

TAPPING, SCREW 8 x 30

$

$

Currently unavailable

17

Husqvarna 26476080402

TAPPING, SCREW 8 X 40

$

$

Currently unavailable
