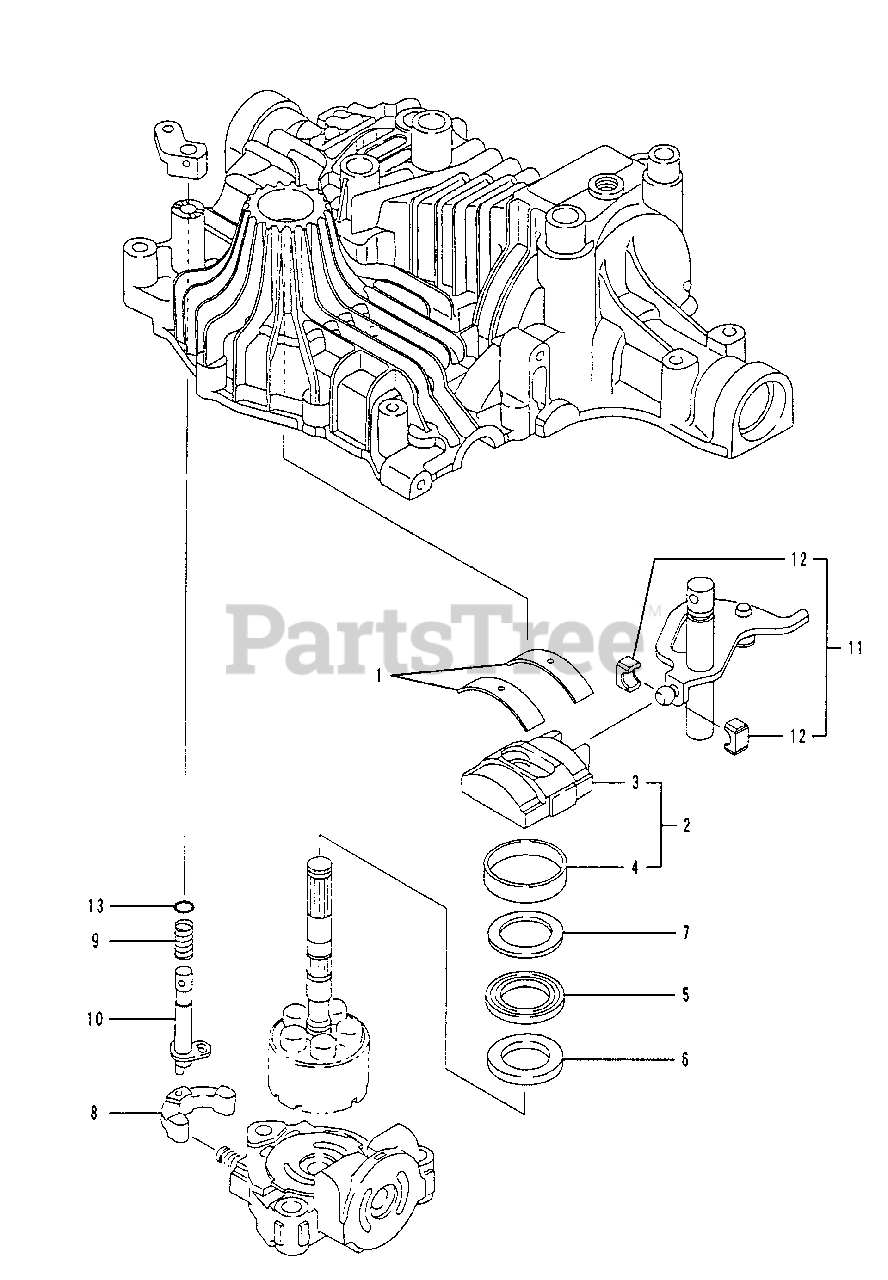

K 61 - Tuff Torq Transaxle Range Shaft Assy Parts Diagram

Transaxle

Range Shaft Assy Parts Diagram

  • Title
1

Husqvarna 19215427051

THRUST METAL

$

$

Currently unavailable

2

Husqvarna 19215427100

SWASH PLATE CMP

$

$

Currently unavailable

3

Husqvarna 19215427120

SWASH PLATE

Note: SERVICE: NO

$

$

Currently unavailable

4

Husqvarna 19215427150

SWASH PLATE BUSHING

Note: SERVICE: NO

$

$

Currently unavailable

5

Husqvarna 19215427190

BEARING K81106

$

$

Currently unavailable

6

Husqvarna 19215427200

THRUST PLATE (A

$

$

Currently unavailable

7

Husqvarna 19215427210

THRUST PLATE (B

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

10

Husqvarna 19215427290

SHAFT (BYPASS

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Husqvarna 19215427301

BLOCK (SHIFT

Note: SERVICE: NO

$

$

Currently unavailable

13

Husqvarna 24311000070

PACKING P 7

$

$

Currently unavailable
