K 61 - Tuff Torq Transaxle Motor Shaft Assy Parts Diagram

Transaxle

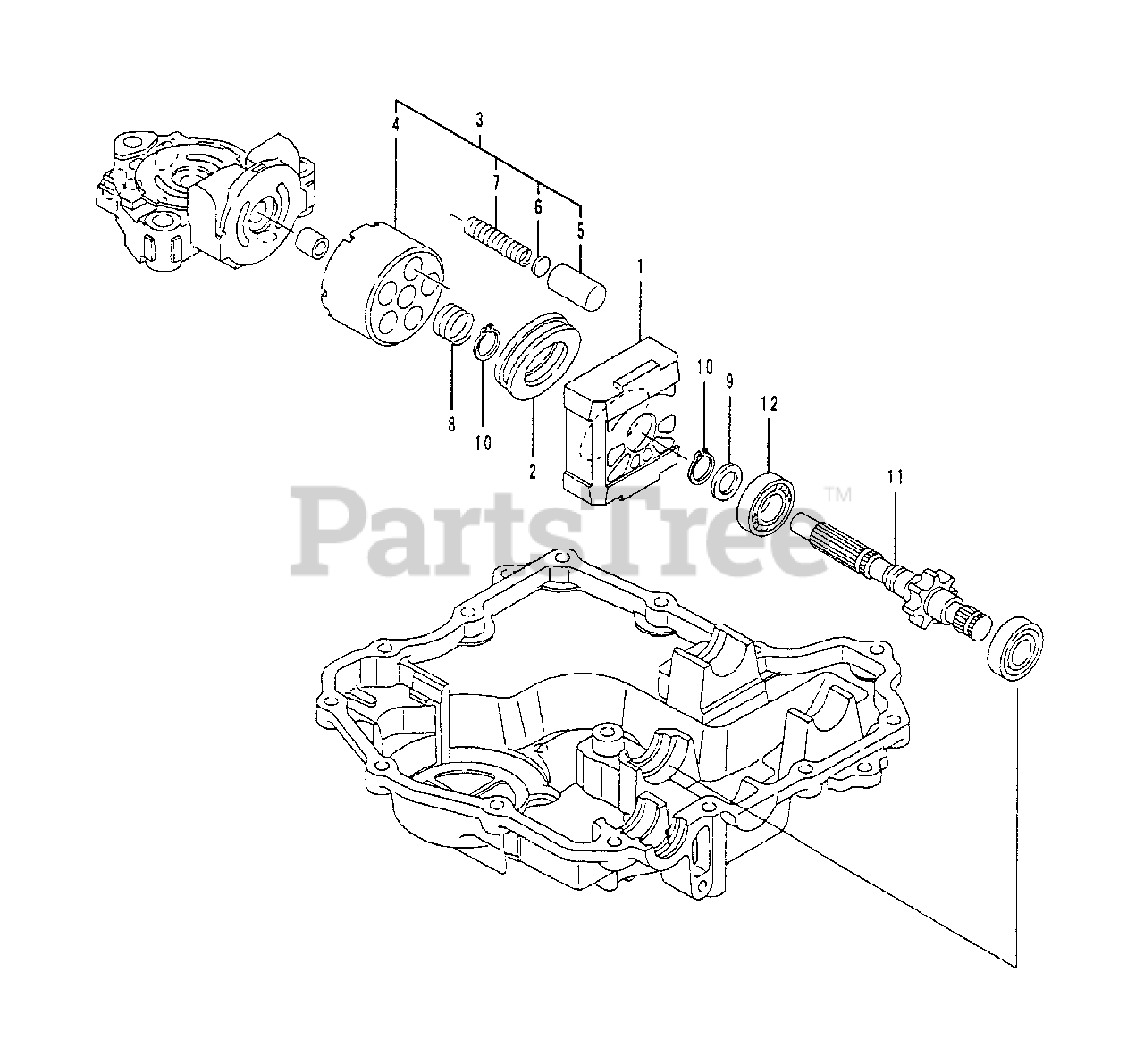

Motor Shaft Assy Parts Diagram

  • Title

$

$

Currently unavailable

2

Husqvarna 19215424240

BEARING (THRUST

$

$

Currently unavailable

3

Husqvarna 19215425140

CYLINDER BLOCK CMP

$

$

Currently unavailable

4

Husqvarna 19215425120

CYLINDER BLOCK

Note: SERVICE: NO

$

$

Currently unavailable

5

Husqvarna 19215425150

PISTON

Note: SERVICE: NO

$

$

Currently unavailable

6

Husqvarna 19215425170

WASHER 11

Note: SERVICE: NO

$

$

Currently unavailable

7

Husqvarna 19215425190

SPRING (PISTON

Note: SERVICE: NO

$

$

Currently unavailable

$

$

Currently unavailable

9

Husqvarna 19215425210

WASHER 15 X 20 X 1

$

$

Currently unavailable

$

$

Currently unavailable

11

Husqvarna 19215425270

SHAFT (MOTOR 13

$

$

Currently unavailable

12

Husqvarna 24101062020

BEARING 6202C3

$

$

Currently unavailable
