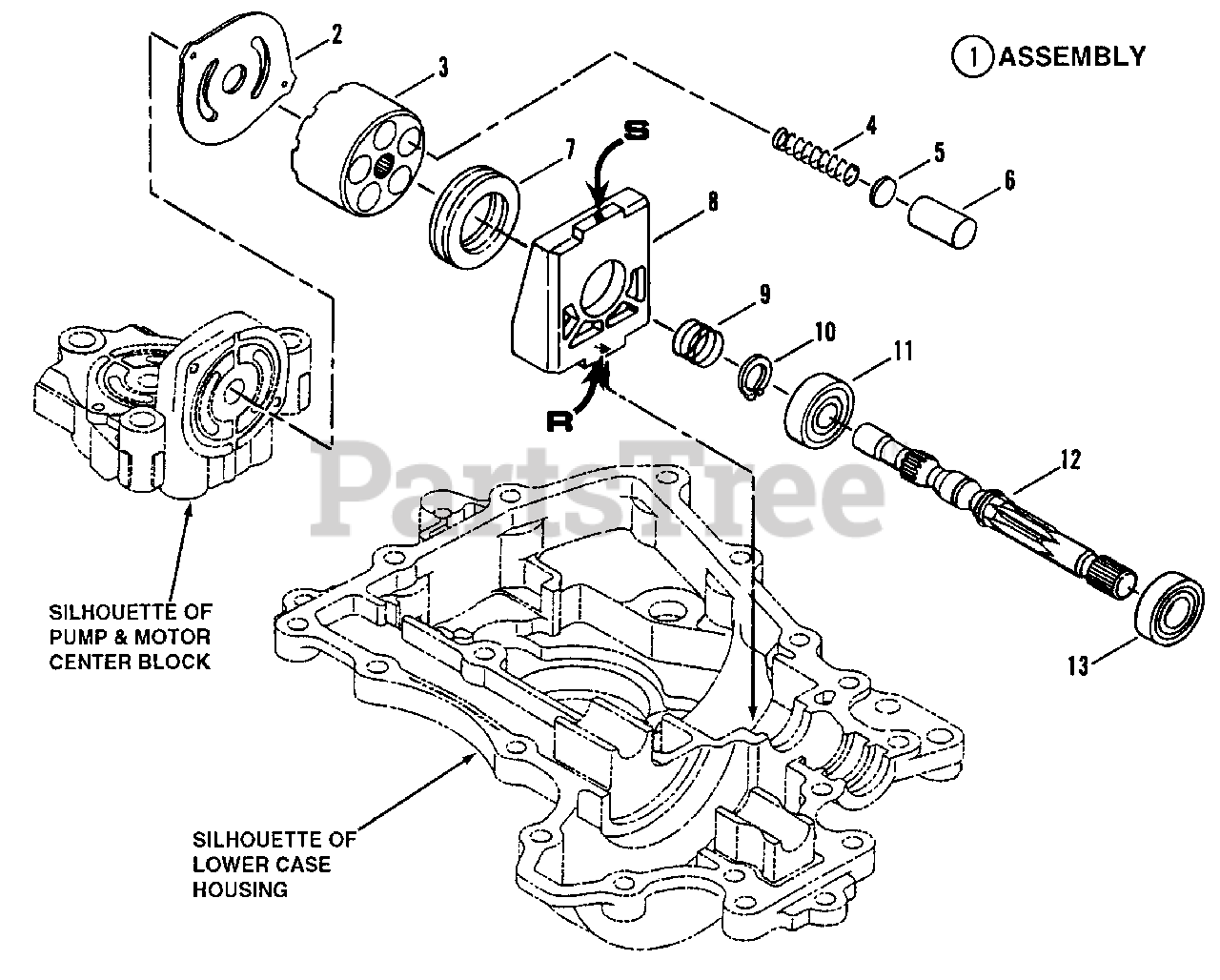

K 55 - Tuff Torq Hydrostatic Transaxle Motor Shaft Assembly Parts Diagram

Hydrostatic Transaxle

Motor Shaft Assembly Parts Diagram

  • Title

1

Snapper 7091462

ASSEMBLY, Cylinder Block

Note: (Includes items 2-6)

$

$

Not available

2

PLATE, Motor (K50)

$

$

Not available

?2A

PLATE, Motor (K55)

$

$

Not available

3

CYLINDER BLOCK, Motor

$

$

Not available

4

SPRING, Piston

$

$

Not available

5

WASHER, Pump Piston

$

$

Not available

6

PISTON, Cylinder Block

$

$

Not available

7

Snapper 7073777

BEARING, Motor Swashplate

Note: Was 91461

$

$

Not available

8

Snapper 7091460

HOUSING, Motor Fixed Swashplate

$

$

Not available

9

Snapper 7091463

SPRING

$

$

Currently unavailable

10

Snapper 7091458

SNAP-RING

$

$

Not available

11

Snapper 7091465

BEARING, Ball

$

$

Not available

12

Snapper 7091464

SHAFT, Motor Output (K50)

$

$

Not available

?12A

Snapper 7091464

SHAFT, Motor Output (K55)

$

$

Not available

13

Snapper 7091466

BEARING, Ball

$

$

Currently unavailable
