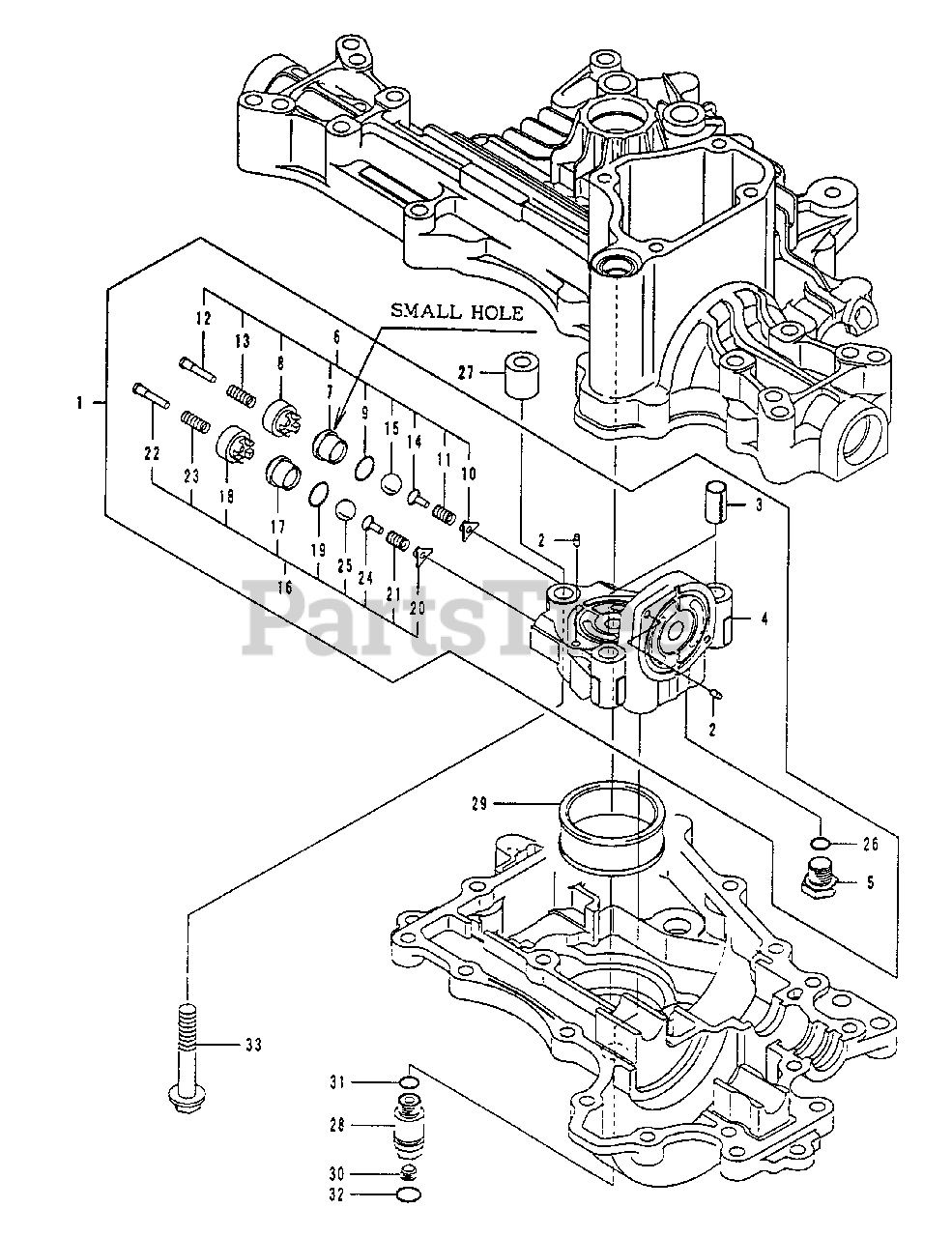

K 55 J - Tuff Torq Transaxle Center Case Assy. Parts Diagram

Transaxle

Center Case Assy. Parts Diagram

  • Title
1

Husqvarna 19216324500

CENTER CASE CMP.

$

$

Currently unavailable

2

Husqvarna 19216324420

KNOCK PIN 3.5

$

$

Currently unavailable

3

Husqvarna 19215424450

KNOCK PIN 12 X 22

$

$

Currently unavailable

4

Husqvarna 19216324510

CENTER CASE

Note: SERVICE: NO

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Husqvarna 19216324610

VALVE(A-1 SET

$

$

Currently unavailable

7

Husqvarna 19216324641

SLEEVE (A1

Note: SERVICE: NO

$

$

Currently unavailable

8

Husqvarna 19215424660

VALVE(B

Note: SERVICE: NO

$

$

Currently unavailable

9

Husqvarna 19215424670

PACKING 1015

$

$

Currently unavailable

10

Husqvarna 19215424690

HOLDER(BYPASS

Note: SERVICE: NO

$

$

Currently unavailable

11

Husqvarna 19215424701

SPRING

Note: SERVICE: NO

$

$

Currently unavailable

12

Husqvarna 19215424710

PUSH PIN

Note: SERVICE: NO

$

$

Currently unavailable

13

Husqvarna 19216324720

SPRING PUSH PIN

Note: SERVICE: NO

$

$

Currently unavailable

14

Husqvarna 19215424730

HOLDER (BALL

$

$

Currently unavailable

15

Husqvarna 24190120001

BALL 3/8

Note: SERVICE: NO

$

$

Currently unavailable

16

Husqvarna 19216324620

VALVE (A-2 SET

$

$

Currently unavailable

17

Husqvarna 19216324650

SLEEVE (A2

Note: SERVICE: NO

$

$

Currently unavailable

18

Husqvarna 19215424660

VALVE (B

Note: SERVICE: NO

$

$

Currently unavailable

19

Husqvarna 19215424670

PACKING 1015

$

$

Currently unavailable

20

Husqvarna 19215424690

HOLDER(BYPASS

Note: SERVICE: NO

$

$

Currently unavailable

21

Husqvarna 19215424701

SPRING

Note: SERVICE: NO

$

$

Currently unavailable

22

Husqvarna 19215424710

PUSH PIN

Note: SERVICE: NO

$

$

Currently unavailable

23

Husqvarna 19216324720

SPRING PUSH PIN

Note: SERVICE: NO

$

$

Currently unavailable

24

Husqvarna 19215424730

HOLDER (BALL

$

$

Currently unavailable

25

Husqvarna 24190120001

BALL 3/8,

Note: SERVICE: NO

$

$

Currently unavailable

26

Husqvarna 24311000110

PACKING P 11

$

$

Currently unavailable

27

Husqvarna 19216324760

COLLAR 10 X 20 X 20

$

$

Currently unavailable

28

$

$

Currently unavailable

$

$

Currently unavailable

30

Husqvarna 23871010000

PLUG PT 1/8

$

$

Currently unavailable

31

Husqvarna 24311000100

PACKING P 11

$

$

Currently unavailable

32

Husqvarna 24311000140

PACKING P 14

$

$

Currently unavailable

33

Husqvarna 26106100602

BOLT 10 X 60

$

$

Currently unavailable
