K 50 - Tuff Torq Hydrostatic Transaxle Transaxle Case Assembly Parts Diagram

Hydrostatic Transaxle

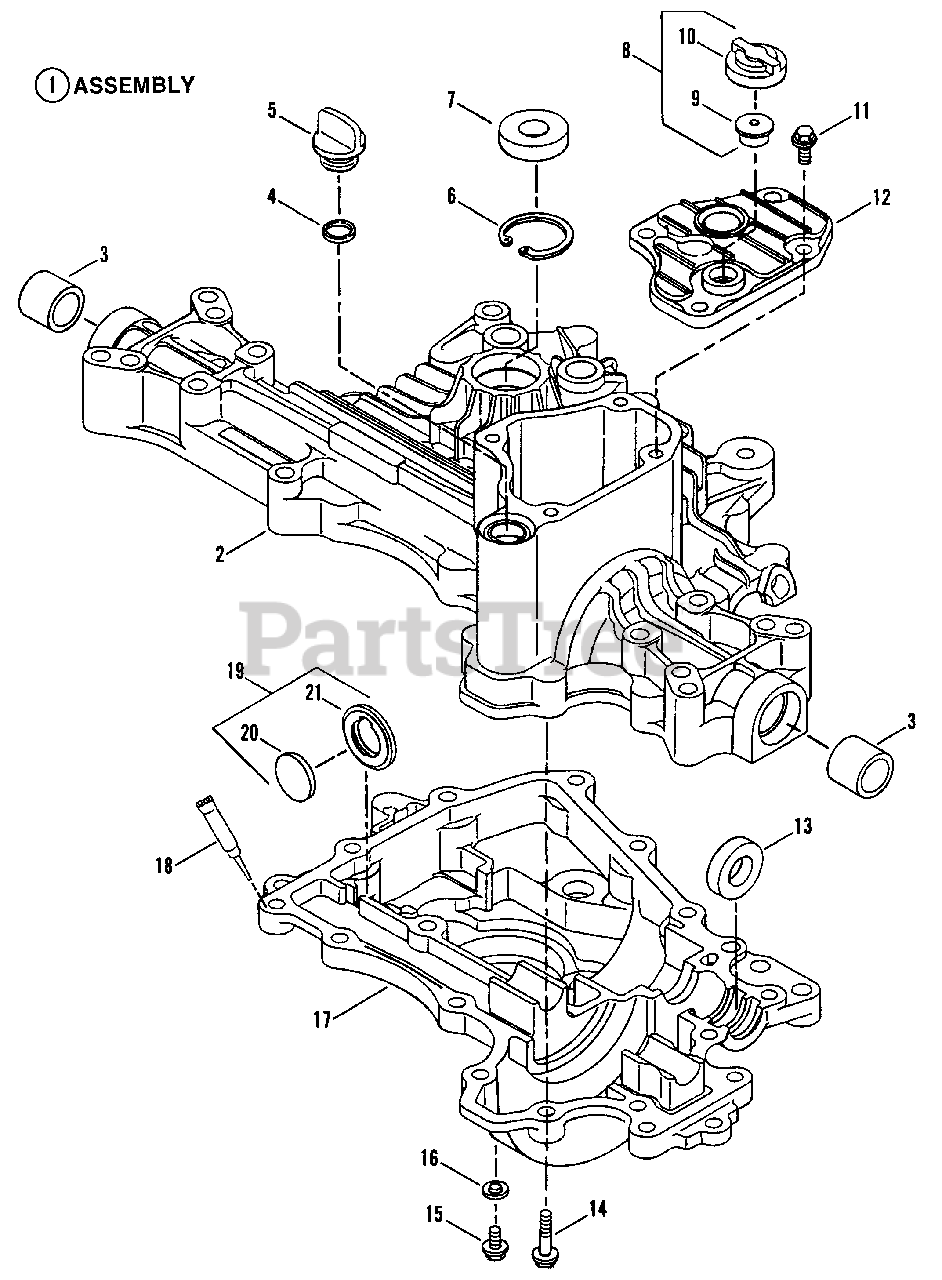

Transaxle Case Assembly Parts Diagram

  • Title

1

Snapper 7091428

ASSEMBLY, Upper Case Housing (K50)

Note: (Includes items 2 & 3)

$

$

Currently unavailable

?1A

Snapper 7091428

ASSEMBLY, Upper Case Housing (K55)

Note: (Includes items 2A & 3)

$

$

Currently unavailable

2

HOUSING, Upper Case (K50)

$

$

Not available

?2A

HOUSING, Upper Case (K55)

$

$

Not available

3

BUSHING, Axle Shaft

$

$

Not available

4

Snapper 7091436

O-RING

$

$

Not available

5

Snapper 7091432

CAP, Oil Fill

$

$

Not available

6

Snapper 7091435

SNAP-RING

$

$

Not available

7

Snapper 7073794

SEAL, Input Shaft
(Superseded to 7073794YP)

Note: Was 91438

$23.99

$

Usually ships in 2-12 days

0

8

Snapper 7091431

ASSEMBLY, Vent Valve

Note: (Includes items 9 & 10)

$

$

Not available

9

BODY, Vent Valve

$

$

Not available

10

CAP, Vent Valve

$

$

Not available

11

Snapper 7091440

CAPSCREW, M8x20mm

$

$

Not available

12

Snapper 7091429

COVER, Oil Reservoir

$

$

Currently unavailable

13

Snapper 7091437

SEAL, Output Shaft

$

$

Not available

14

Snapper 7091441

CAPSCREW, M8x30mm Self-Tapping
(Superseded to 1707789SM)

$6.99

$

Usually ships in 2-12 days

0

15

Snapper 7091439

PLUG, Drain

$

$

Currently unavailable

16

Snapper 7091434

WASHER, Seal

$

$

Not available

17

Snapper 7091430

HOUSING, Lower Case (K50)

$

$

Currently unavailable

?17A

Snapper 7091430

HOUSING, Lower Case (K55)

$

$

Currently unavailable

18

SEALANT, Silicone

$

$

Not available

19

Snapper 7091433

ASSEMBLY, Magnet

Note: (Includes items 20 & 21)

$

$

Not available

20

MAGNET

$

$

Not available

21

SEAL, Magnet

$

$

Not available

Snapper 7028083

ASSEMBLY, Hydrostatic Transaxle, Complete (K50)
(Superseded to 7028668YP)

$1367.99

$

Usually ships in 2-12 days

0

Snapper 7028668

ASSEMBLY, Hydrostatic Transaxle, Complete (K55)
(Superseded to 7028668YP)

$1367.99

$

Usually ships in 2-12 days

0
