K 50 - Tuff Torq Hydrostatic Transaxle Range Shift Assembly Parts Diagram

Hydrostatic Transaxle

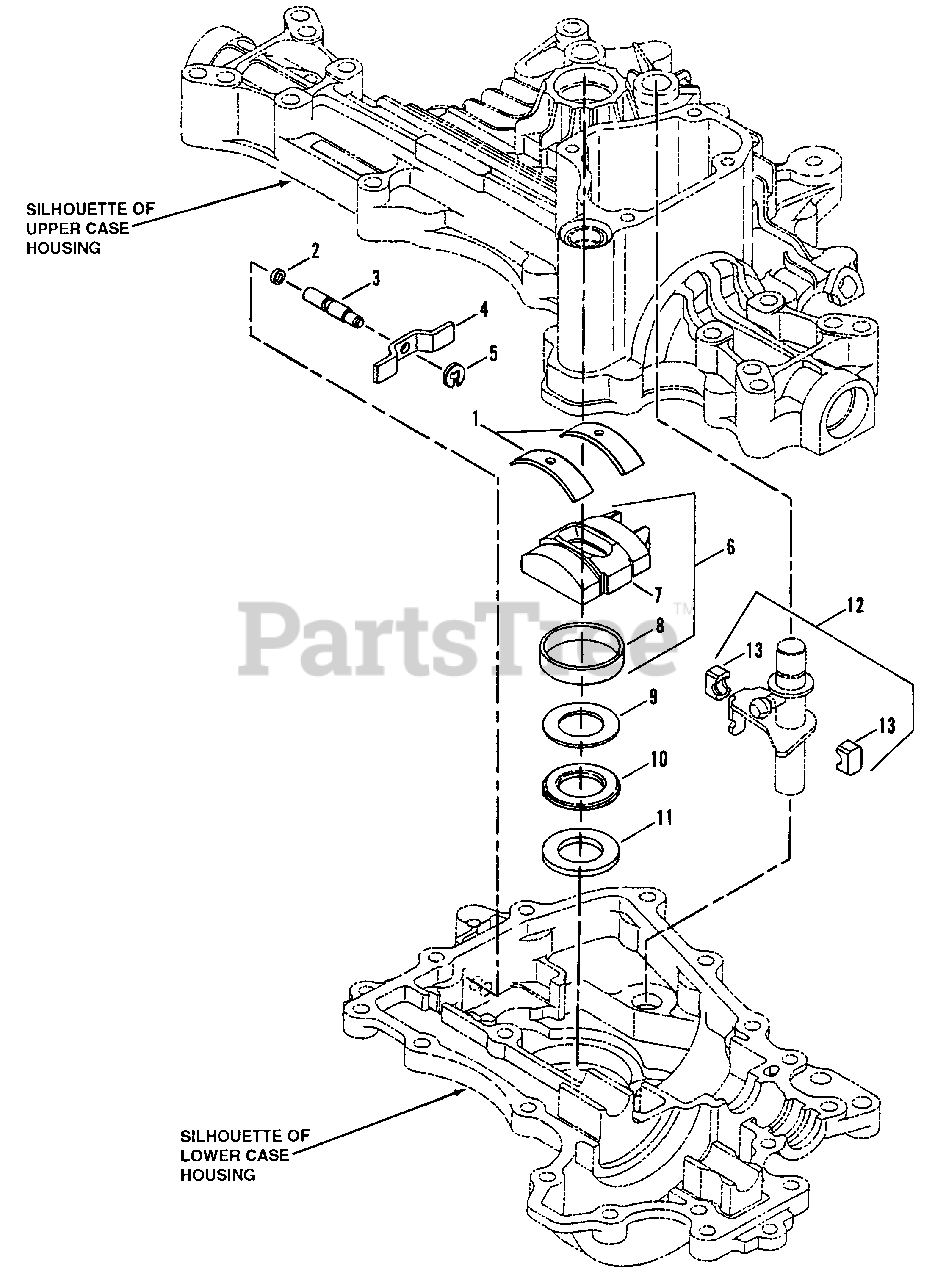

Range Shift Assembly Parts Diagram

  • Title

1

Snapper 7091467

BUSHING, Thrust, Pump Swashplate
(Superseded to 1718089SM)

$16.99

$

Usually ships in 2-12 days

0

2

Snapper 7091476

O-RING

$

$

Not available

3

Snapper 7091473

PIN, Actuating, Transport By-pass Valve

$

$

Not available

4

Snapper 7091472

BRACKET, Actuating Pin

$

$

Not available

5

Snapper 7091475

E-RING

$

$

Not available

6

Snapper 91468

ASSEMBLY, Pump Swashplate

Note: (Includes items 7 & 8)

$4.99

$

Usually ships in 2-12 days

0

7

SWASHPLATE, Pump

$

$

Not available

8

BUSHING, Swashplate

$

$

Not available

9

Snapper 7073783

THRUST-PLATE

Note: Was 91471 (Top of Bearing)

$

$

Not available

10

Snapper 7073781

BEARING, Swashplate

Note: Was 91469

$

$

Not available

11

Snapper 7073782

THRUST-PLATE

Note: Was 91470 (Bottom of Bearing)

$

$

Not available

12

Snapper 91474

ASSEMBLY, Shifter Shaft
(Superseded to 691682)

Note: (Includes 2 of item 13)

$5.49

$

Usually ships in 2-12 days

0

13

BLOCK, Shifter Shaft

$

$

Not available
