K 3000 Wet - Husqvarna Cut-Off Saw (2009-05) GEARS Parts Diagram

Cut-Off Saw

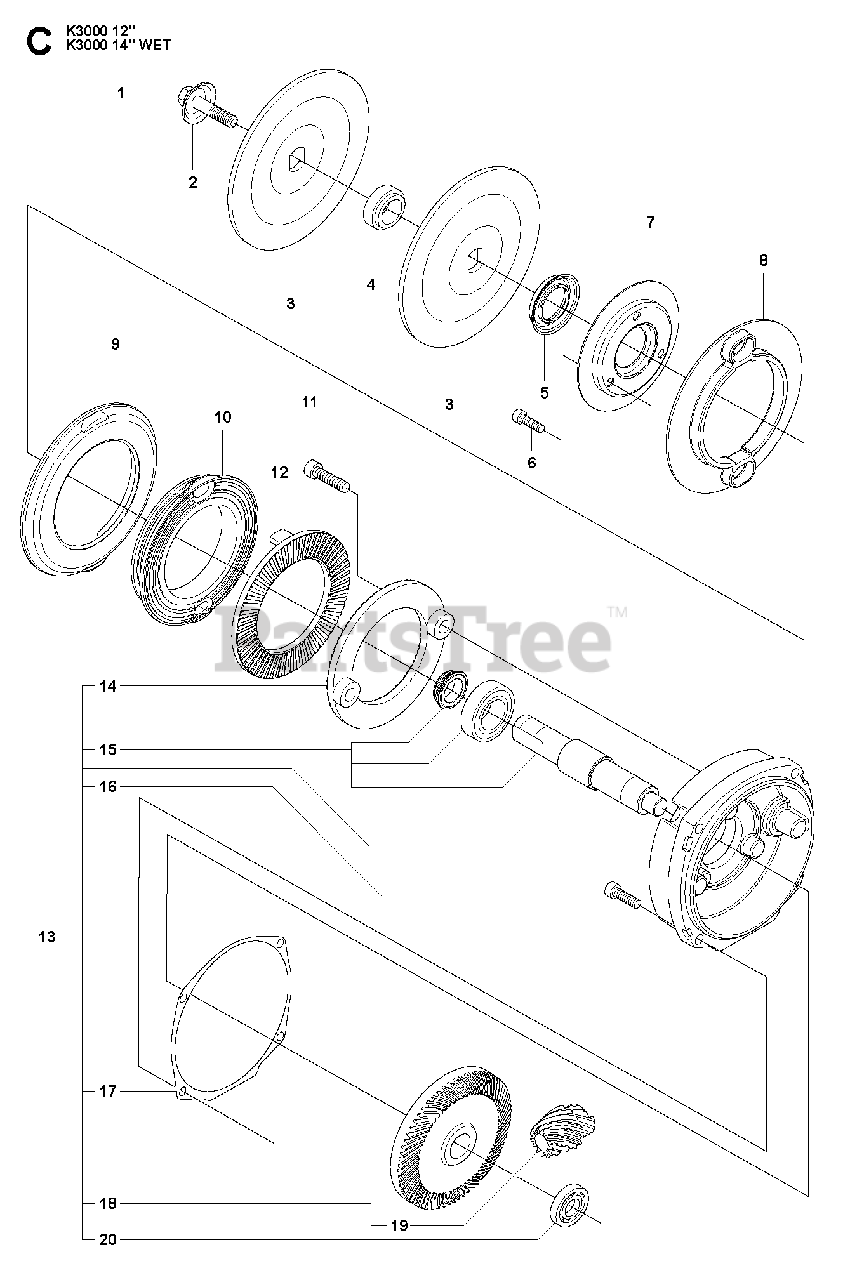

GEARS Parts Diagram

  • Title

1

Husqvarna 506 13 96-01

SCREW EHHFM

$28.99

$

In Stock, only 2 left!

0

2

Husqvarna Construction 506 13 95-11

WASHER

$28.99

$

In Stock, only 2 left!

0

3

Husqvarna 506 02 87-01

FLANGE WASHER

$54.99

$

In Stock, only 3 left!

0

4

Husqvarna 506 37 96-20

KITDiam 20mm

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 506 37 96-22

KITDiam 22,2mm

$20.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506 37 96-25

KITDiam 25,4mm

$22.99

$

In Stock, only 2 left!

0

4

Husqvarna 506 02 88-30

BUSHINGDiam 30,5mm

$27.99

$

In Stock, only 2 left!

0

5

Husqvarna 506 32 06-01

SEALING

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505 57 41-16

SCREW ITXSCM

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 506 26 65-01

FLANGE

$17.99

$

In Stock, Qty 5

0

8

Husqvarna Construction 505 28 18-01

SPACER RING"12"" only"

$

$

Not available

9

Husqvarna Construction 505 28 19-01

SPACER RING"12"" only"

$

$

Not available

10

Husqvarna 506 26 63-02

LINING

$31.99

$

In Stock, only 1 left!

0

12

Husqvarna 506 26 64-01

SCREEN

$10.99

$

In Stock, only 1 left!

0

11

Husqvarna 503 21 53-12

SCREW ITXSCM

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna Construction 544 40 32-01

GEAR SETIncl. 14 - 18, 20

$

$

Not available

14

Husqvarna 506 28 84-01

SCREEN

$9.49

$

In Stock, only 1 left!

0

15

Husqvarna 544 40 33-01

SHAFT
(Superseded to 544403302)

$

$

Not available

16

Husqvarna 505 57 41-20

SCREW ITXSCM

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 505 53 03-10

GASKET
(Superseded to 523056201)

$15.99

$

Usually ships in 3-10 days

0

18

Husqvarna 531 03 18-75

GEAR WHEELIncl. 19

$302.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506 09 86-02

PINION

$121.99

$

Usually ships in 3-10 days

0

20

Husqvarna 738 22 00-15

BALL BEARING

$9.99

$

Usually ships in 3-10 days

0
