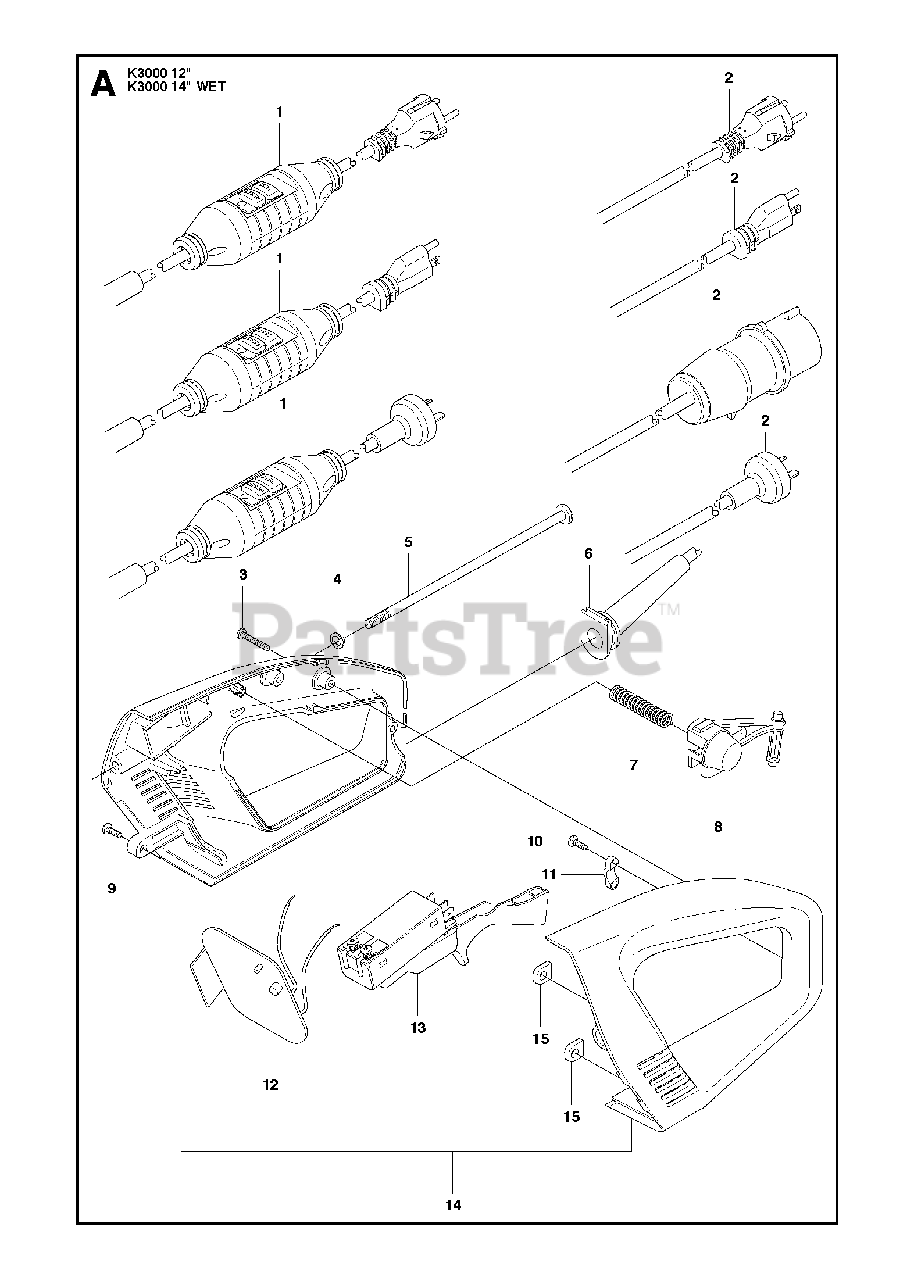

K 3000 - Husqvarna Cut-Off Saw (2009-05) ELECTRICAL Parts Diagram

Cut-Off Saw

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna Construction 505 44 33-03

CABLE230V, Incl. 6

$453.99

$

Usually ships in 3-10 days

0

1

Husqvarna 510 18 13-02

CABLE110V JP, USA

$

$

Not available

1

Husqvarna Construction 521 90 72-03

CABLE110V AU, Incl. 6

$105.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505 52 02-11

CABLE ASSY230V

$123.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505 53 03-56

CABLE110V JP, USA
(Superseded to 510222810)

$

$

Not available

2

Husqvarna Construction 510 18 14-01

CABLE110V UK

$

$

Not available

2

Husqvarna Construction 510 22 28-01

CABLE110V AU

$

$

Not available

3

Husqvarna 531 03 19-02

SCREW

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 735 11 46-50

SPRING WASHER

$2.49

$

In Stock, only 1 left!

0

5

Husqvarna 505 53 03-11

SCREW

$10.99

$

In Stock, only 1 left!

0

6

Husqvarna 544 90 05-01

CABLE SLEEVE230V
(Superseded to 577411801)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 531 03 18-85

SPRING
(Superseded to 577481901)

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 544 90 06-01

LOCKING BUTTON
(Superseded to 589657302)

$24.99

$

In Stock, only 2 left!

0

9

Husqvarna 724 13 27-55

SCREW CRPANM

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 503 21 20-01

SCREW

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 531 03 18-87

CLIP

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 522 63 78-01

PRINTED CIRCUIT ASSY110V
(Superseded to 575890003)

$227.99

$

Usually ships in 3-10 days

0

12

Husqvarna 525 59 24-01

PRINTED CIRCUIT ASSY230V
(Superseded to 525592402)

$413.99

$

Usually ships in 3-10 days

0

13

Husqvarna 531 03 18-83

SWITCH

$157.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544 90 45-01

HANDLE ASSY
(Superseded to 544904502)

$159.99

$

In Stock, only 1 left!

0

15

Husqvarna Construction 577 52 52-01

NUT

$3.49

$

Usually ships in 3-10 days

0
