K 300 (UT-20751) - Homelite String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

String Trimmer

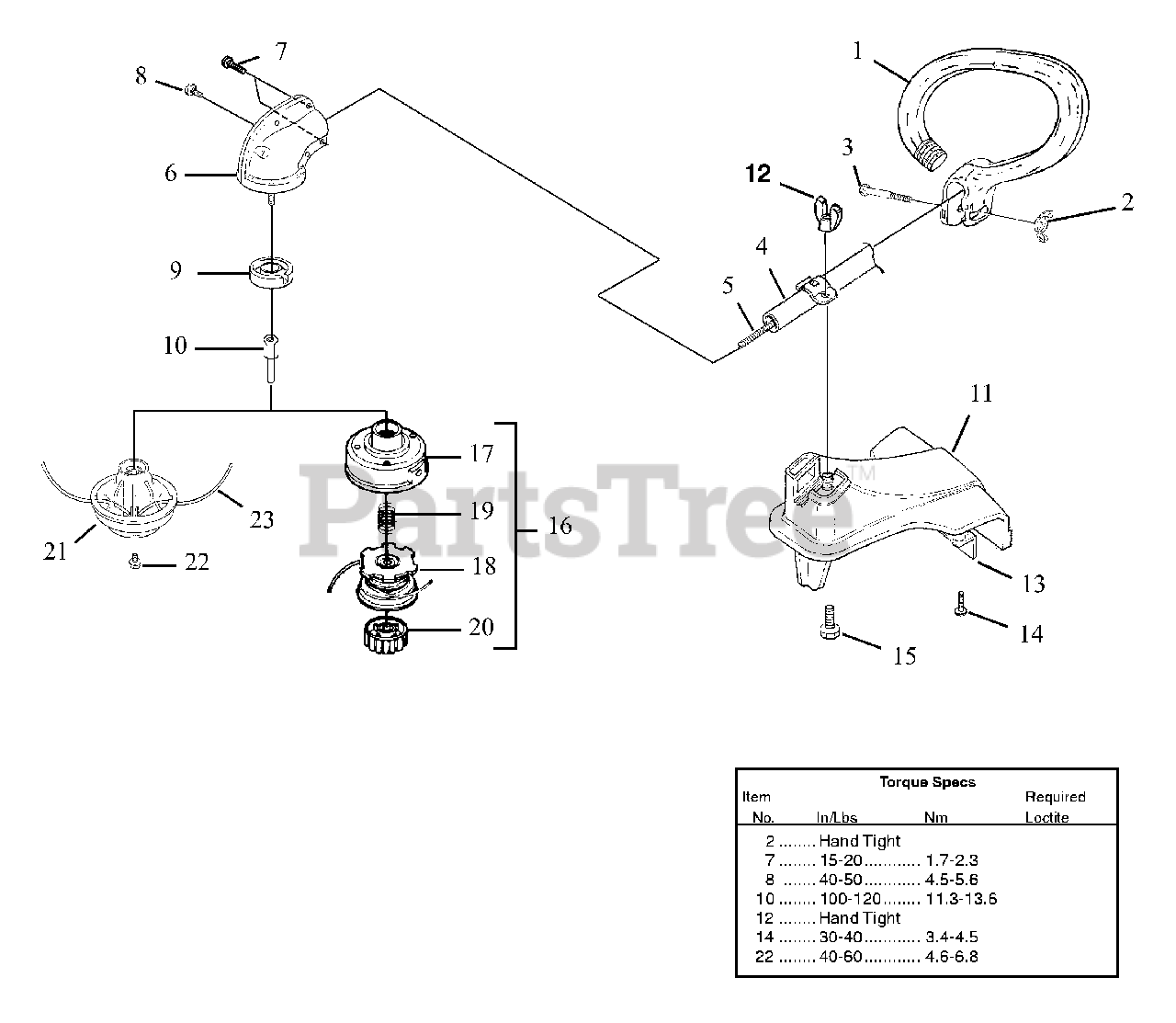

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP06959A

HANDLE-Anti-Vibe
(Superseded to 308472001)

Note: Includes Items 1-3

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 x 2")

$4.99

$

Usually ships in 3-7 days

0

4

Homelite PA00983A

DRIVESHAFT HOUSING ASSY.
(Superseded to UP04891A)

$92.99

$

Usually ships in 3-7 days

0

5

Homelite 98818

SHAFT-Flexible

$

$

Not available

6

Homelite UP06970A

GEARHEAD

Note: Includes Items 6-8

$

$

Not available

7

Homelite 82597

Screw, Truss Hd. (10-24 x 1/2")
(Superseded to 660630001)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite PS01605

Screw, Truss Hd. (10-24 x 5/8")

$

$

Not available

9

Homelite 04168A

WASHER-Flanged
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 04355

ADAPTER-Shaft

$19.99

$

Usually ships in 3-7 days

0

11

Homelite UP04888A

GRASS DEFLECTOR KIT

Note: Includes Items 11-15

$

$

Not available

12

Homelite PS02453

WING NUT

$2.49

$

In Stock, only 1 left!

0

13

Homelite 07129

BLADE-Cut-off

$

$

Not available

14

Homelite 82546

SCREW-Mach.Hex Hd. (10-24 X 3/8")
(Superseded to 660675001)

$1.99

$

In Stock, only 1 left!

0

15

Homelite PS02435

SCREW-Square Head

$3.99

$

In Stock, only 1 left!

0

16

Homelite UP04408

STRINGHEAD-Complete (.080" Line)
(Superseded to UP04408A)

$

$

Not available

17

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

18

Homelite PA0387A

SPOOL & STRING (.080" Line)
(Superseded to 308044002)

$

$

Not available

19

Homelite 06713

SPRING-Compression

$1.99

$

In Stock, only 3 left!

0

20

Homelite A98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to 308042002)

$

$

Not available

21

Homelite DA09364

STRINGHEAD-Pro-Cut w/line (UT20743)
(Superseded to DA09364A)

Note: Includes Item 21

$

$

Not available

22

Homelite PS00082

SCREW (5/16-18 x 5/8")

$

$

Not available

23

Homelite D09365

LINE-Replacement
(Superseded to AC09365)

$

$

Not available
