K 30 - Husqvarna Cut-Off Saw (2009-05) PULLEY Parts Diagram

Cut-Off Saw

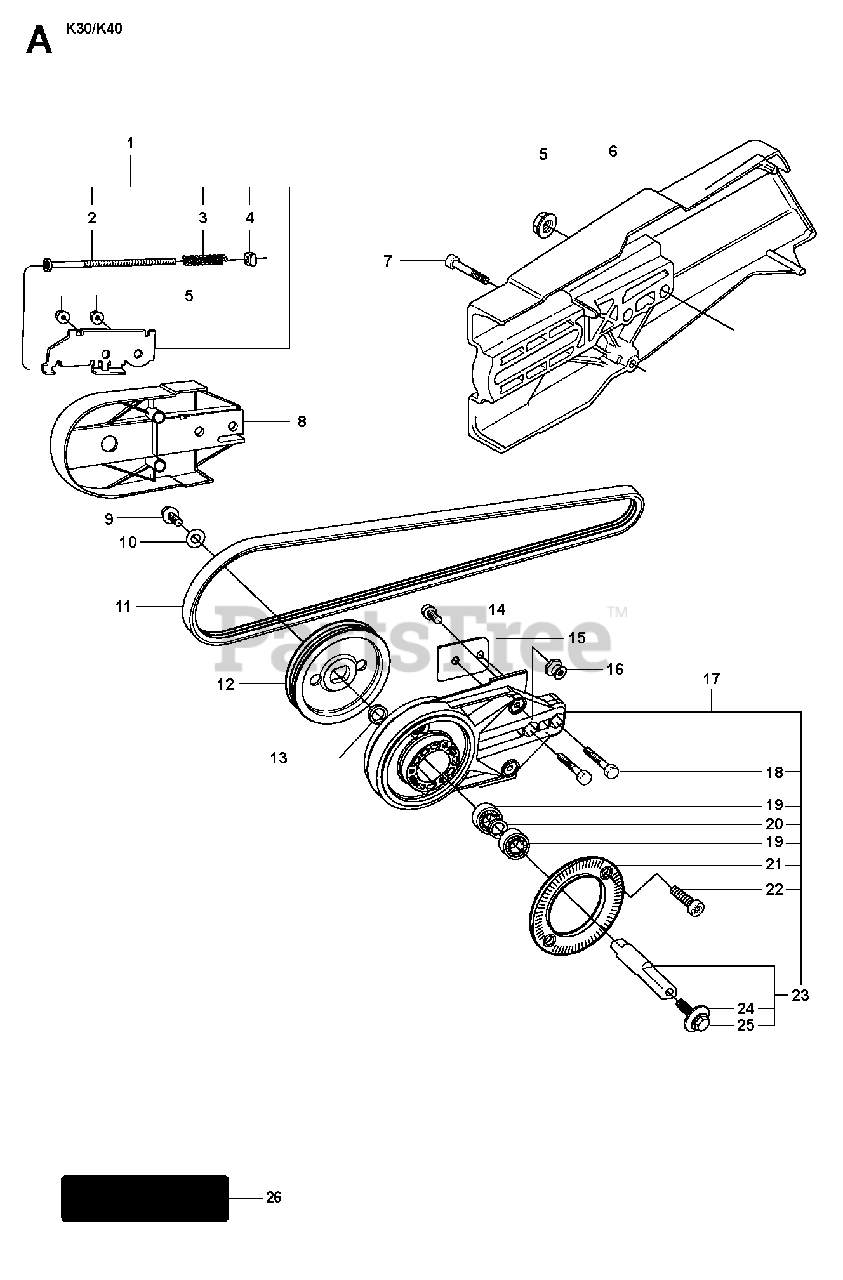

PULLEY Parts Diagram

  • Title

1

Husqvarna 506 03 06-03

BELT TENSIONER ASSYIncl. 2 - 4

$31.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 503 20 72-20

SCREW CITXSCM

$15.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 506 21 95-01

COMPRESSION SPRING

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 503 22 66-01

SQUARE NUT

$5.49

$

In Stock, Qty 8

0

5

Husqvarna 503 22 00-01

HEXAGON NUT

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna Construction 506 02 90-02

CUTTER ARM

$126.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503 21 53-20

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna Construction 506 09 87-02

BELT GUARD

$35.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503 20 00-45

SCREW EHHFM

$6.99

$

In Stock, Qty 6

0

10

Husqvarna 503 23 01-16

WASHER

$3.99

$

In Stock, Qty 6

0

11

Husqvarna Construction 544 97 63-03

BELT

$57.99

$

In Stock, only 2 left!

0

12

Husqvarna Construction 544 98 09-01

PULLEY

$185.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503 23 01-04

WASHER

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 505 57 41-16

SCREW ITXSCM

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna Construction 525 60 65-01

SPACER

$20.07

$

Usually ships in 3-10 days

0

16

Husqvarna 506 14 32-01

TORSION STOP

$12.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 506 41 34-04

BEARING HOUSING ASSYIncl. 18 - 23

$160.99

$

Usually ships in 3-10 days

0

18

Husqvarna 506 03 32-02

SCREW

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 583 95 33-01

BALL BEARING

$31.99

$

In Stock, only 2 left!

0

20

Husqvarna Construction 506 20 18-01

SPACING SLEEVE

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 506 28 84-01

SCREEN

$10.99

$

In Stock, Qty 5

0

22

Husqvarna 503 21 53-10

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna Construction 506 29 83-71

SHAFTIncl. 24 - 25

$123.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 506 13 95-11

WASHER

$33.99

$

In Stock, Qty 10

0

25

Husqvarna 506 13 96-01

SCREW EHHFM
(Superseded to 581855201)

$33.99

$

In Stock, Qty 10

0

26

Husqvarna 506 30 97-05

LABELJapan only

$17.99

$

Usually ships in 3-10 days

0
