K 200 (UT-20781) - Homelite String Trimmer Engine Internal Parts Diagram

String Trimmer

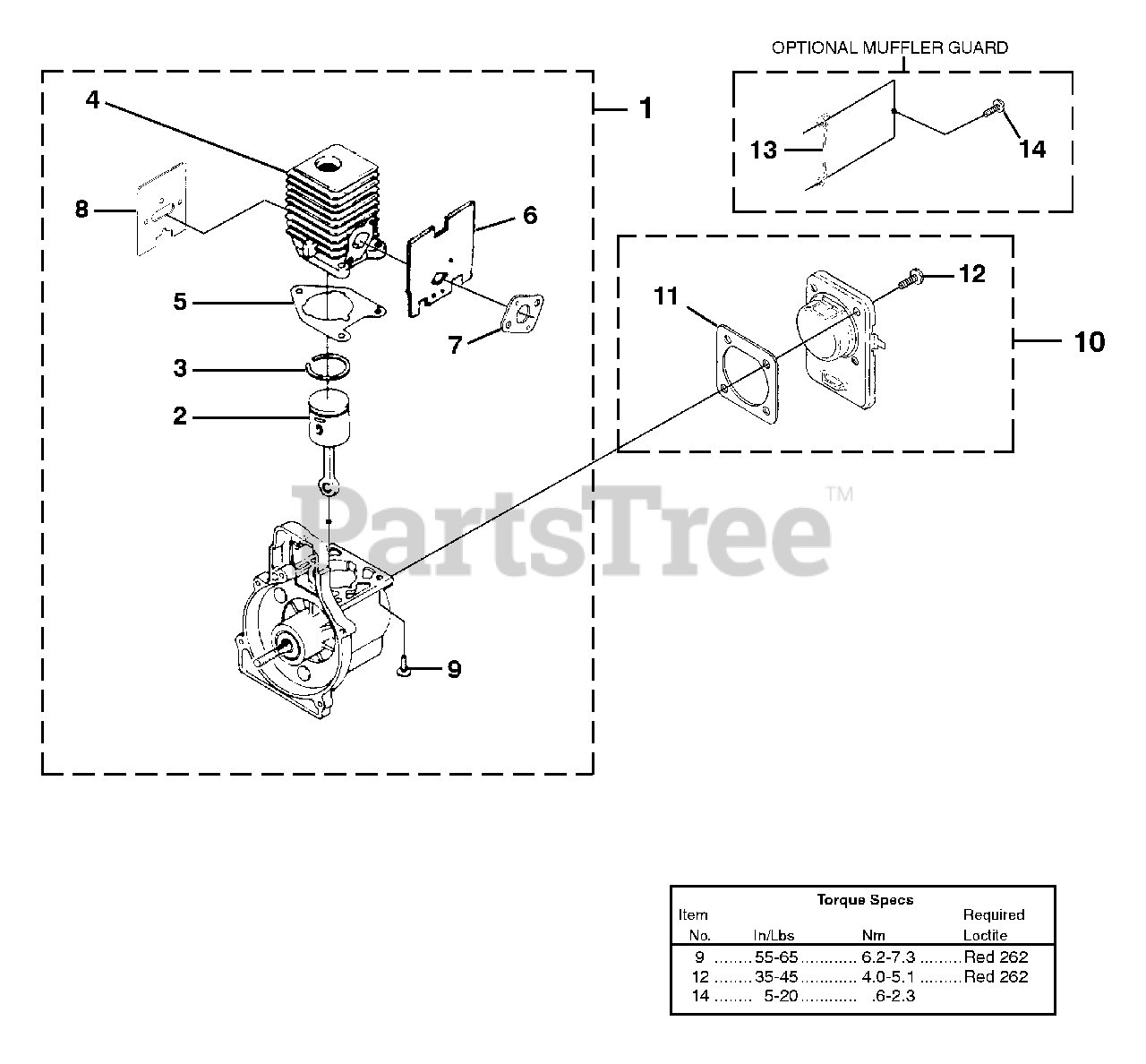

Engine Internal Parts Diagram

  • Title

1

Homelite 984525001

SHORT BLOCK

Note: Includes items 2-9

$225.99

$

In Stock, only 1 left!

0

2

Homelite 984544001

PISTON & ROD ASSY.

Note: Includes item 3

$

$

Not available

3

Homelite PS01359

RING-Piston
(Superseded to 678001002)

$

$

Not available

4

Homelite UP07145A

CYLINDER ASSY.

Note: Inclues items 5-7

$74.99

$

In Stock, only 1 left!

0

5

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

6

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

7

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$

$

Not available

8

Homelite PS04000

GASKET-Muffler

$

$

Not available

9

Homelite PS02807

SCREW-Sems (12-24 X 3/4")

$2.49

$

Usually ships in 3-7 days

0

10

Homelite UP00019A

CRANKCASE COVER ASSEMBLY

Note: Includes items 11-12

$

$

Not available

11

Homelite 08661

GASKET-Crankcase Cover

Note: (Also Included W/Cylinder Assy.)

$

$

Not available

12

Homelite PS01565

SCREW-Sems (10-24 X 1/2")

$2.49

$

Usually ships in 3-7 days

0

13

Homelite UP04099

MUFFLER GUARD

Note: Includes item 14

$

$

Not available

14

Homelite 82541

SCREW-Thread Forming (10-14 X 1/2")

$1.99

$

In Stock, only 3 left!

0
