K 1270 R - Husqvarna Cut-Off Saw (2016-07) CYLINDER Parts Diagram

Cut-Off Saw

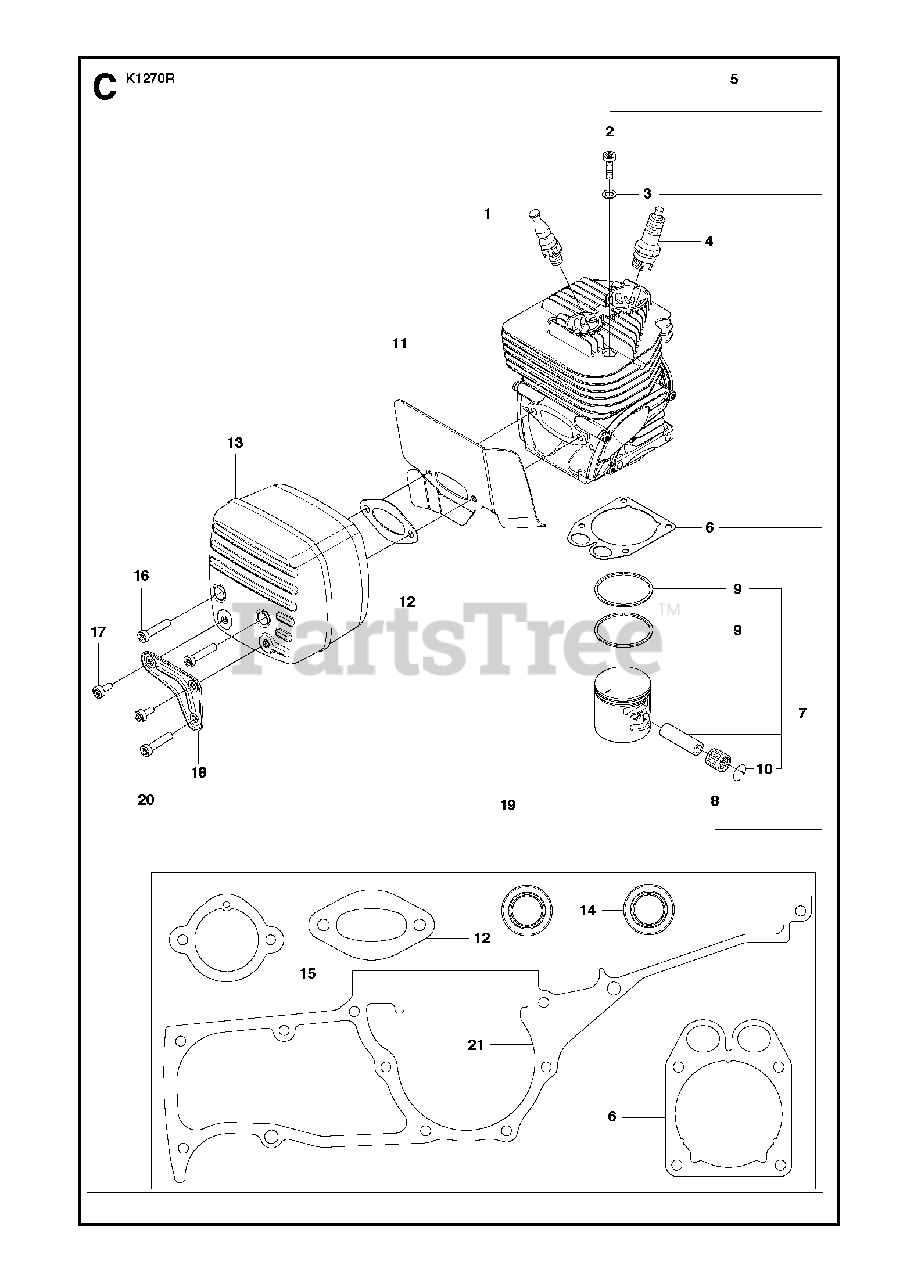

CYLINDER Parts Diagram

  • Title

1

Husqvarna Construction 584 91 22-04

DECOMPRESSION VALVE

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 516 00 24-01

SCREW UNC

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 503 23 00-05

WASHER

$6.49

$

In Stock, only 3 left!

0

4

Husqvarna Construction 503 23 51-09

SPARK PLUGRCJ 6Y

$3.99

$

In Stock, Qty 11

0

5

Husqvarna Construction 582 58 23-01

CYLINDER ASSYIncl. 2, 3, 6 - 8

$

$

Not available

6

Husqvarna Construction 587 53 62-01

GASKET

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna Construction 587 82 98-02

PISTON ASSYIncl. 9 - 10

$206.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503 13 29-01

NEEDLE HOLDER

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 587 83 00-01

PISTON RING

$27.99

$

In Stock, only 2 left!

0

10

Husqvarna 737 44 13-00

CIRCLIP

$2.99

$

In Stock, only 2 left!

0

11

Husqvarna Construction 587 53 63-01

HEAT DEFLECTOR

$112.99

$

Usually ships in 3-10 days

0

12

Husqvarna 585 28 09-01

GASKET

$7.99

$

In Stock, Qty 13

0

13

Husqvarna 505 41 79-05

MUFFLER ASSYIncl. 14 - 15

$79.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503 26 02-05

SEALING RING

$21.99

$

In Stock, only 4 left!

0

15

Husqvarna Construction 579 85 11-01

GASKET

$10.99

$

In Stock, only 1 left!

0

16

Husqvarna Construction 544 21 84-07

SCREW ITXSCM

$

$

Currently unavailable

17

Husqvarna 503 21 53-12

SCREW ITXSCM

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 502 85 08-01

SUPPORT

$22.99

$

In Stock, only 2 left!

0

19

Husqvarna Construction 582 45 48-01

GASKET KIT

$20.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544 21 84-20

SCREW ITXSCM

$6.49

$

In Stock, only 2 left!

0

21

Husqvarna Construction 587 53 61-01

GASKET

$

$

Currently unavailable
