K 1260 Rail - Husqvarna Cut-Off Saw (2010-10) FUEL TANK Parts Diagram

Cut-Off Saw

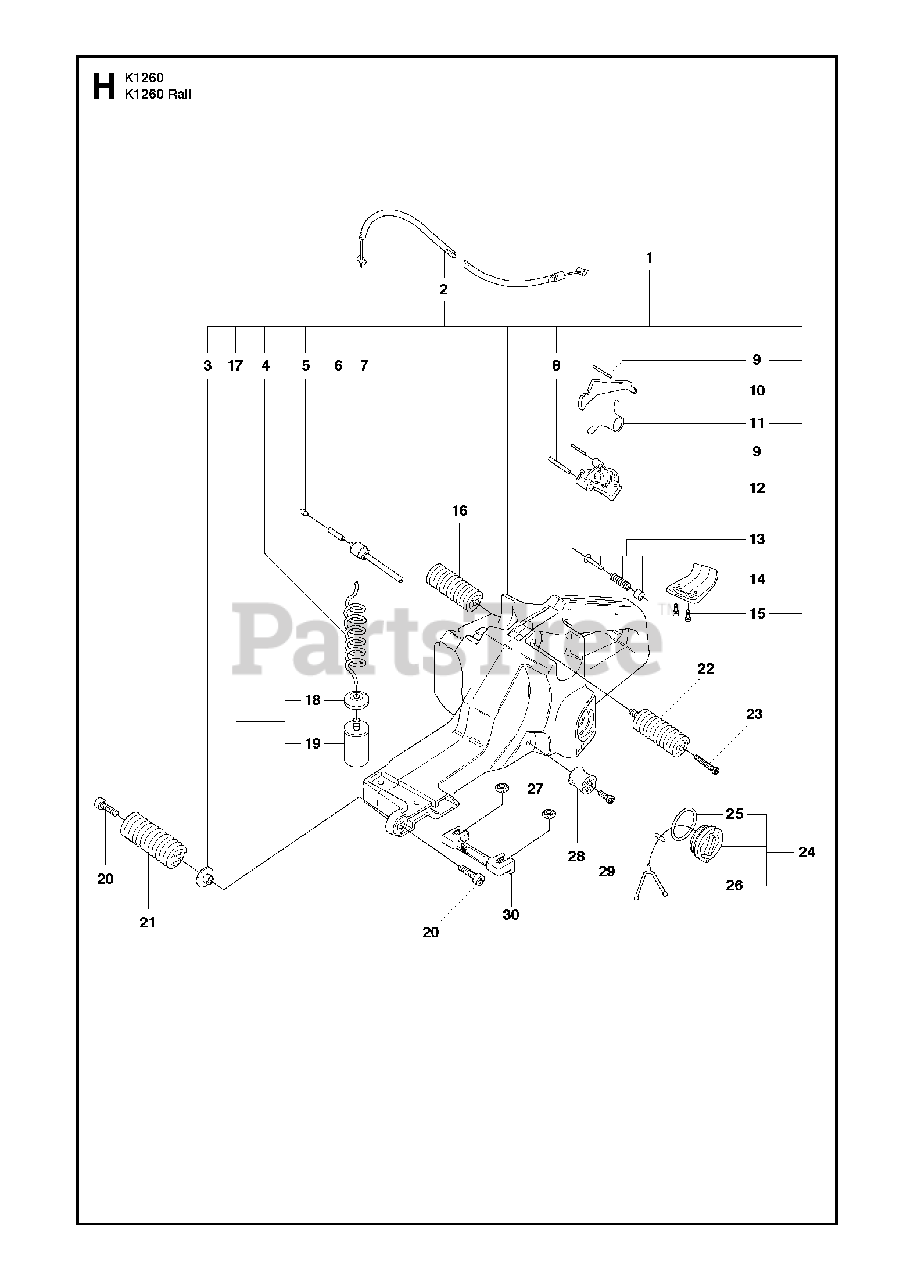

FUEL TANK Parts Diagram

  • Title

1

Husqvarna 503 14 21-06

TANK UNIT ASSYIncl. 1 - 15, 17
(Superseded to 582625804)

$167.99

$

Usually ships in 3-10 days

0

2

Husqvarna 506 28 98-01

THROTTLE CABLE ASSY

$35.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503 14 08-01

BUSHING

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503 57 76-02

FUEL HOSE
(Superseded to 591375201)

$5.99

$

In Stock, Qty 20+

0

5

Husqvarna 504 35 72-01

PLUG

$9.99

$

In Stock, Qty 7

0

6

Husqvarna 501 76 83-04

FUEL HOSE
(Superseded to 581756105)

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 506 29 39-01

TANK VENT
(Superseded to 588992701)

$

$

Not available

8

Husqvarna 720 12 78-06

PARALLEL PIN

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 720 12 40-20

PARALLEL PIN
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

10

Husqvarna 503 13 16-01

THROTTLE LOCKOUT
(Superseded to 503131602)

$13.99

$

In Stock, only 2 left!

0

11

Husqvarna 503 13 18-01

SPRING

$15.99

$

In Stock, Qty 8

0

12

Husqvarna 503 13 36-01

THROTTLE CONTROL ASSY
(Superseded to 503133602)

$25.99

$

In Stock, only 1 left!

0

13

Husqvarna 503 14 23-01

SPÄRRSTIFT RES

$10.99

$

In Stock, only 3 left!

0

14

Husqvarna 506 23 34-01

SUPPORT

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 503 21 45-16

SCREW CRCSFT

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 503 13 26-02

ANTIVIBRATION ELEMENT
(Superseded to 585226301)

$27.99

$

In Stock, only 2 left!

0

17

Husqvarna 506 26 41-11

FUEL FILTERIncl. 18 - 19

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 506 27 11-01

HOSE CLAMP

$6.49

$

In Stock, only 1 left!

0

19

Husqvarna 506 26 41-01

FUEL FILTER

$13.99

$

In Stock, Qty 16

0

20

Husqvarna 503 21 53-25

SCREW ITXSCM

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 503 13 27-02

ANTIVIBRATION ELEMENT

$42.99

$

In Stock, only 1 left!

0

22

Husqvarna 503 13 25-02

ANTIVIBRATION ELEMENT
(Superseded to 585226401)

$24.99

$

In Stock, only 2 left!

0

23

Husqvarna 544 21 84-20

SCREW ITXSCM

$6.49

$

In Stock, only 2 left!

0

24

Husqvarna 506 25 59-03

TANK CAP ASSYIncl. 25 - 26
(Superseded to 506255906)

$17.99

$

In Stock, only 3 left!

0

25

Husqvarna 506 29 21-01

GASKET

$9.49

$

In Stock, only 2 left!

0

26

Husqvarna 503 57 89-01

HOLDER

$9.99

$

In Stock, Qty 15

0

27

Husqvarna 505 42 04-01

NUT
(Superseded to 503226601)

$6.49

$

In Stock, only 2 left!

0

28

Husqvarna 501 81 47-01

ANTIVIBRATION ELEMENT
(Superseded to 501814702)

$11.99

$

Usually ships in 3-10 days

0

29

Husqvarna 503 21 53-12

SCREW ITXSCM

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 574 51 22-01

NUT LOCKING

$10.99

$

Usually ships in 3-10 days

0
