K 1250 Active - Husqvarna Cut-Off Saw (2008-01) Wheel Guard Assembly / Support Flange and Bushing Parts Diagram

Cut-Off Saw

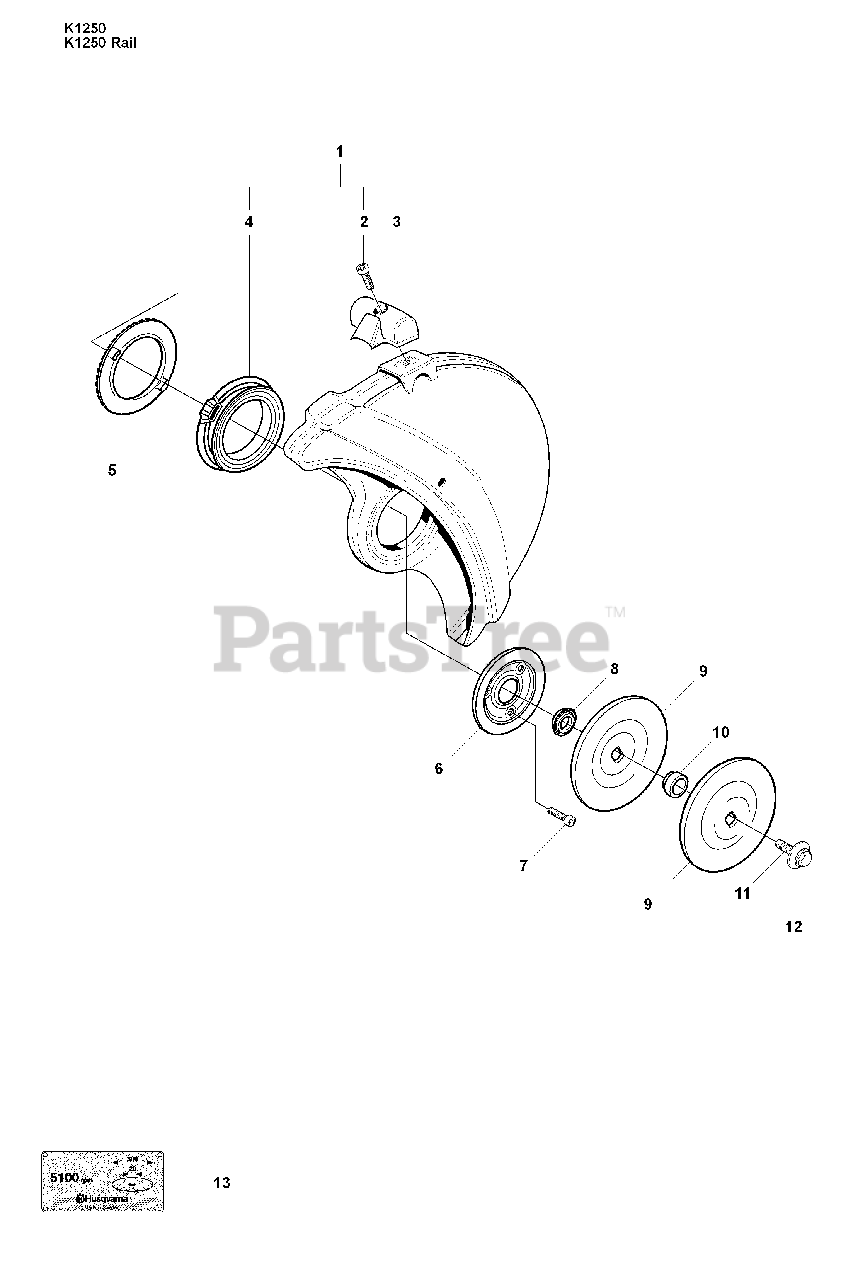

Wheel Guard Assembly / Support Flange and Bushing Parts Diagram

  • Title

1

Husqvarna 506340504

WHEEL GUARD ASSY
(Superseded to 506340544)

Note: 14"

$318.99

$

In Stock, only 1 left!

0

1

Husqvarna 506340506

WHEEL GUARD ASSY
(Superseded to 506340546)

Note: 16"

$352.99

$

Usually ships in 3-10 days

0

1

Husqvarna 506340524

WHEEL GUARD ASSY
(Superseded to 506340554)

Note: Rail 14"

$319.99

$

In Stock, only 1 left!

0

1

Husqvarna 506340526

WHEEL GUARD ASSY
(Superseded to 506340556)

Note: Rail 16"

$319.99

$

Usually ships in 3-10 days

0

2

Husqvarna 725533155

SCREW
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 506344602

HANDLE

$9.49

$

In Stock, only 1 left!

0

4

Husqvarna 506266302

LINING

$31.99

$

In Stock, only 1 left!

0

5

Husqvarna 506266401

SCREEN PATTERN FLANG

$10.99

$

In Stock, only 1 left!

0

6

Husqvarna 506266501

FLANGE

$17.99

$

In Stock, only 4 left!

0

7

Husqvarna 725532955

SCREW

$7.99

$

In Stock, Qty 20+

0

8

Husqvarna 506324801

SUPPORT FLANGE

Note: K1250 A

$18.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506267101

SUPPORT FLANGE
(Superseded to 506324801)

Note: K1250 Rail

$18.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506028701

FLANGE WASHER

Note: Diam 105 mm

$54.99

$

In Stock, only 2 left!

0

9

Husqvarna 506070901

WASHER
(Superseded to 506070903)

Note: Diam 119 mm

$38.99

$

In Stock, only 1 left!

0

10

Husqvarna 506379620

BUSHING

Note: Diam 20 mm

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 506379622

BUSHING

Note: Diam 22,2 mm

$20.99

$

In Stock, only 1 left!

0

10

Husqvarna 506379625

BUSHING

Note: Diam 25 mm

$22.99

$

In Stock, Qty 14

0

10

Husqvarna 506028830

BUSHING

Note: Diam 30,5 mm

$27.99

$

In Stock, only 1 left!

0

11

Husqvarna 506139511

WASHER
(Superseded to 581855201)

$28.99

$

In Stock, only 1 left!

0

12

Husqvarna 506139601

COLLAR SCREW

$28.99

$

In Stock, only 1 left!

0

13

Husqvarna 506284112

LABEL

Note: 14". Diam 20mm

$

$

Not available

13

Husqvarna 506284111

LABEL

Note: 14". Diam 22,2 mm

$

$

Not available

13

Husqvarna 506284114

LABEL

Note: 14". Diam 25,4mm

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506284122

LABEL

Note: 16". Diam 20mm

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506284121

LABEL

Note: 16". Diam 22,2mm

$

$

Not available

13

Husqvarna 506284124

LABEL

Note: 16". Diam 25,4mm

$6.99

$

Usually ships in 3-10 days

0
