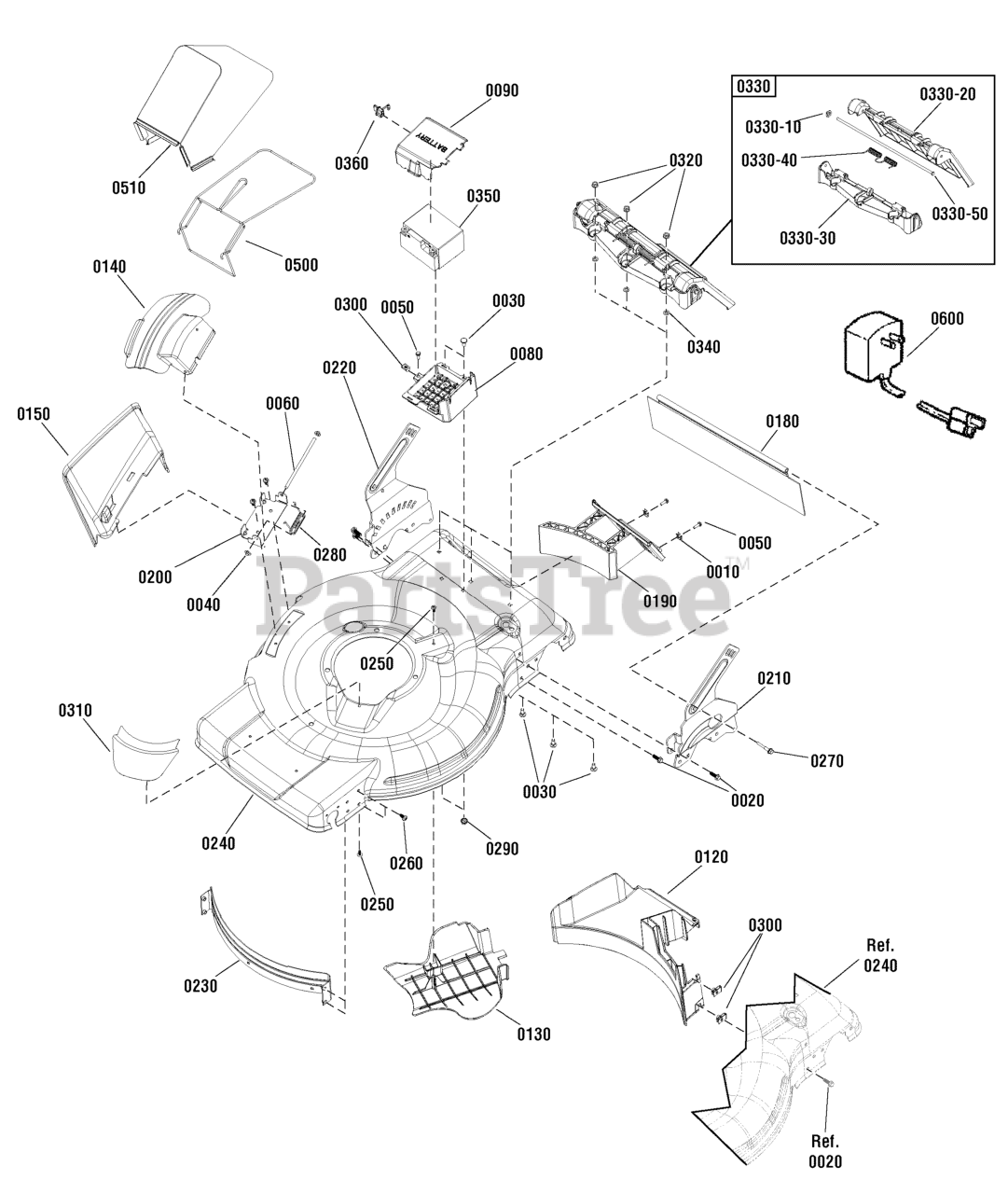

JS 46 S (7800809) - John Deere 22" Walk-Behind Mower (2011) Deck Group (7501605) Parts Diagram

22" Walk-Behind Mower

Deck Group (7501605) Parts Diagram

  • Title

0010

Murray 1960593SM

NUT, Retainer Speed, #10-24

$4.99

$

Usually ships in 2-12 days

0

0020

Murray 7090699YP

BOLT, Hex Flange, 1/4-20 x 3/4, GR 5

$3.99

$

Usually ships in 2-12 days

0

0030

Murray 7090803YP

BOLT, Flat Head Square Neck, 1/4-20 x 5/8, GR 5
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0040

Murray 7091020YP

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 7091075SM

SCREW, Hex Washer Self Tap, #10C x 5/8, GR 5

$4.49

$

In Stock, Qty 5

0

0060

Murray 7101067YP

ROD, Pivot

$6.99

$

Usually ships in 2-12 days

0

0080

Murray 7102917YP

BOTTOM, Battery Box

$13.99

$

In Stock, only 1 left!

0

0090

Murray 7104820YP

TOP, Battery, With Charger

$10.99

$

Usually ships in 2-12 days

0

0120

Murray 7103293YP

BAFFLE, Rear, Rear Wheel Drive WBM

$64.99

$

Usually ships in 2-12 days

0

0130

Murray 7104819YP

COVER, Belt Drive, Rear

$34.99

$

Usually ships in 2-12 days

0

0140

Murray 7103298YP

COVER, Mulching

$

$

Not available

0150

Murray 7103299YP

CHUTE, Side Discharge

$35.99

$

In Stock, only 1 left!

0

0180

Murray 7103323YP

GUARD, Rear

$9.49

$

In Stock, only 1 left!

0

0190

Murray 7103453YP

PLUG, Mulching

$32.99

$

In Stock, only 3 left!

0

0200

Murray 7300855BMYP

BRACKET, Chute

$9.99

$

Usually ships in 2-12 days

0

0210

Murray 7300885AYP

BRACKET, Lower Handle, LH

$19.99

$

Usually ships in 2-12 days

0

0220

Murray 7300915AYP

BRACKET, Lower Handle, RH

$52.99

$

Usually ships in 2-12 days

0

0230

Murray 7301020YP

BAFFLE, Front

$50.99

$

In Stock, only 1 left!

0

0240

Murray 7301081FYP

DECK, 22, RWD, ES

$501.99

$

Usually ships in 2-12 days

0

0250

Murray 7900018YP

SCREW, Round Washer Head Torx, Hi-Lo
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

0260

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0270

Murray 7900073YP

BOLT, Drag Shield, 1/4 - 20 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

0280

Murray 166X38MA

SPRING, Torsion

$4.99

$

In Stock, only 2 left!

0

0290

Murray 780285MA

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

0300

Murray 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0310

Murray 7103296YP

SHIELD, Debris, Front

$8.99

$

In Stock, only 2 left!

0

0320

Murray 15X143MA

NUT, Flange Lock, 1/4-20

$4.99

$

In Stock, Qty 13

0

0330

Murray 7501541YP

ASSEMBLY, Door, 22 WBM

Note: (Includes Ref. Nos. 0330-10, 0330-20, 0330-30, 0330-40 & 0330-50)

$45.99

$

Usually ships in 2-12 days

0

0330-10

Murray 7091020YP

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

0330-20

DOOR, Rear Discharge

Note: (Order Complete Assembly)

$

$

Not available

0330-30

Murray 7103292YP

HINGE, Door

$19.99

$

In Stock, only 1 left!

0

0330-40

Murray 7103309YP

SPRING, Torsion, Rear Door

$5.49

$

In Stock, only 1 left!

0

0330-50

Murray 7103322YP

ROD, Pivot, Rear Door

$3.99

$

Usually ships in 2-12 days

0

0340

Murray 1960518SM

NUT, Push, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0350

Murray 7067012YP

BATTERY, UN2796

$93.99

$

Usually ships in 2-12 days

0

0360

Murray 7104850YP

PLUG, Battery Charger

$9.49

$

Usually ships in 2-12 days

0

0500

Murray 7103305AYP

FRAME, Bagger

$170.99

$

Usually ships in 2-12 days

0

0510

Murray 7103375YP

BAG, Grass

$98.99

$

Usually ships in 2-12 days

0

0600

Murray 7104765YP

CHARGER, Battery

$29.99

$

Usually ships in 2-12 days

0
