JS 46 (7800576) - John Deere 22" Walk-Behind Mower (2010) Group, Deck, RWD, ES, Deere Parts Diagram

22" Walk-Behind Mower

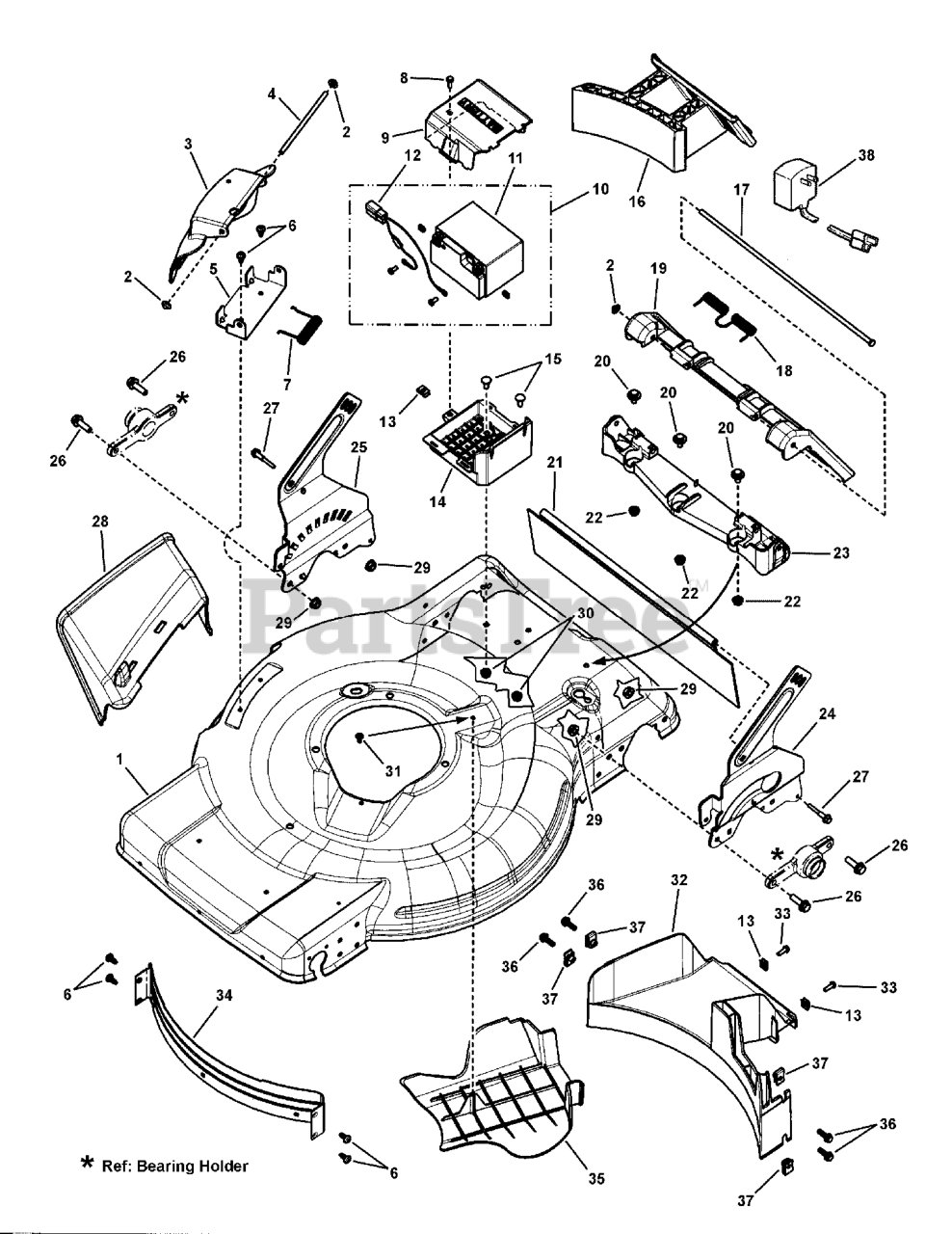

Group, Deck, RWD, ES, Deere Parts Diagram

  • Title

1

Murray 7301081FYP

DECK, 22", RWD, ES, DEERE

$501.99

$

Usually ships in 2-12 days

0

2

Murray 7091020YP

PUSHNUT, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

3

Murray 7103298YP

COVER, MULCHING

$

$

Not available

4

Murray 7101067YP

ROD, PIVOT

$6.99

$

Usually ships in 2-12 days

0

5

Murray 7300855FYP

BRACKET, CHUTE

$7.49

$

Usually ships in 2-12 days

0

6

Murray 7900067YP

TORX ST, 1/4-20 X .550

$4.49

$

In Stock, Qty 20+

0

7

Murray 166X38MA

SPRING, TORSION, CHUTE

$4.99

$

In Stock, only 2 left!

0

8

Murray 7091075SM

SCREW, HWFST,10C X 5/8

$4.49

$

In Stock, Qty 5

0

9

Murray 7102918YP

TOP, BATTERY BOX, WBM

$10.99

$

Usually ships in 2-12 days

0

10

Murray 7101320YP

ASSY, BATTERY W/HARNESS
(Superseded to 7067012YP)

$93.99

$

Usually ships in 2-12 days

0

11

Murray 7067012YP

SEALED LEAD ACID BATTERY, 12V

$93.99

$

Usually ships in 2-12 days

0

12

Murray 7015488YP

HARNESS, BATTERY

$14.99

$

In Stock, only 1 left!

0

13

Murray 1960593SM

NUT, RETAINER SPEED #10C W/EXT

$4.99

$

Usually ships in 2-12 days

0

14

Murray 7102917YP

BOTTOM, BATTERY BOX, WBM

$13.99

$

In Stock, only 1 left!

0

15

Murray 7090803YP

BOLT, FHSNB,1/4-20X5/8
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

16

Murray 7103453YP

PLUG, MULCHING, 22" DECK

$32.99

$

In Stock, only 3 left!

0

17

Murray 7103322YP

ROD, PIVOT, REAR DOOR

$3.99

$

Usually ships in 2-12 days

0

18

Murray 7103309YP

SPRING, TORSION, REAR DOOR

$5.49

$

In Stock, only 1 left!

0

19

Murray 7103291YP

DOOR, REAR DISCHARGE
(Superseded to 7501541YP)

$45.99

$

Usually ships in 2-12 days

0

20

Murray 7091016YP

SCREW, HHSTS, 1/4-20 x 5/8"
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

21

Murray 7103323YP

GUARD, REAR 22"

$9.49

$

In Stock, only 1 left!

0

22

Murray 780285MA

NUT, HFLN, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

23

Murray 7103292YP

REAR DISCHARGE DOOR HINGE

$19.99

$

In Stock, only 1 left!

0

24

Murray 7300885AYP

BRKT, REAR WHEEL, LH, QUICK ADJUST

$19.99

$

Usually ships in 2-12 days

0

25

Murray 7300915AYP

BRKT, REAR WHEEL, RH, QUICK ADJUST

$52.99

$

Usually ships in 2-12 days

0

26

Murray 7091591SM

BOLT, HFLB, 5/16-18 X 1 YZ
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

27

Murray 7900073YP

BOLT, DRAG SHIELD, 1/4 - 20 X 1.5

$3.49

$

Usually ships in 2-12 days

0

28

Murray 7103299YP

CHUTE, SIDE DISCHARGE, WBM, 22"

$35.99

$

In Stock, only 1 left!

0

29

Murray 7091601SM

NUT, FLANGE LOCK, 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

30

Murray 780285MA

NUT, .25-20 HEX FLG WHIZLK
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

31

Murray 7900018YP

SCREW, ROUND WASHER HEAD TORX, HI-LO
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

32

Murray 7103293YP

REAR, BAFFLE REAR WHEEL DRIVE WBM

$64.99

$

Usually ships in 2-12 days

0

33

Murray 7091075SM

SCREW, HWFST, 10C X 5/8

$4.49

$

In Stock, Qty 5

0

34

Murray 7301020FYP

BAFFLE, FRONT
(Superseded to 7301020YP)

$50.99

$

In Stock, only 1 left!

0

35

Murray 7103294YP

COVER, BELT DRIVE, REAR

$20.99

$

Usually ships in 2-12 days

0

36

Murray 7090699YP

BOLT, HFLB,1/4-20X3/4

$3.99

$

Usually ships in 2-12 days

0

37

Murray 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

38

Murray 206838YP

CHARGER, Battery (120 Volt; 60 Hertz)
(Superseded to 770625)

$59.99

$

In Stock, only 2 left!

0
