JS 45 (7800198) - John Deere 21" Walk-Behind Mower (2009) Rear Wheels Parts Diagram

21" Walk-Behind Mower

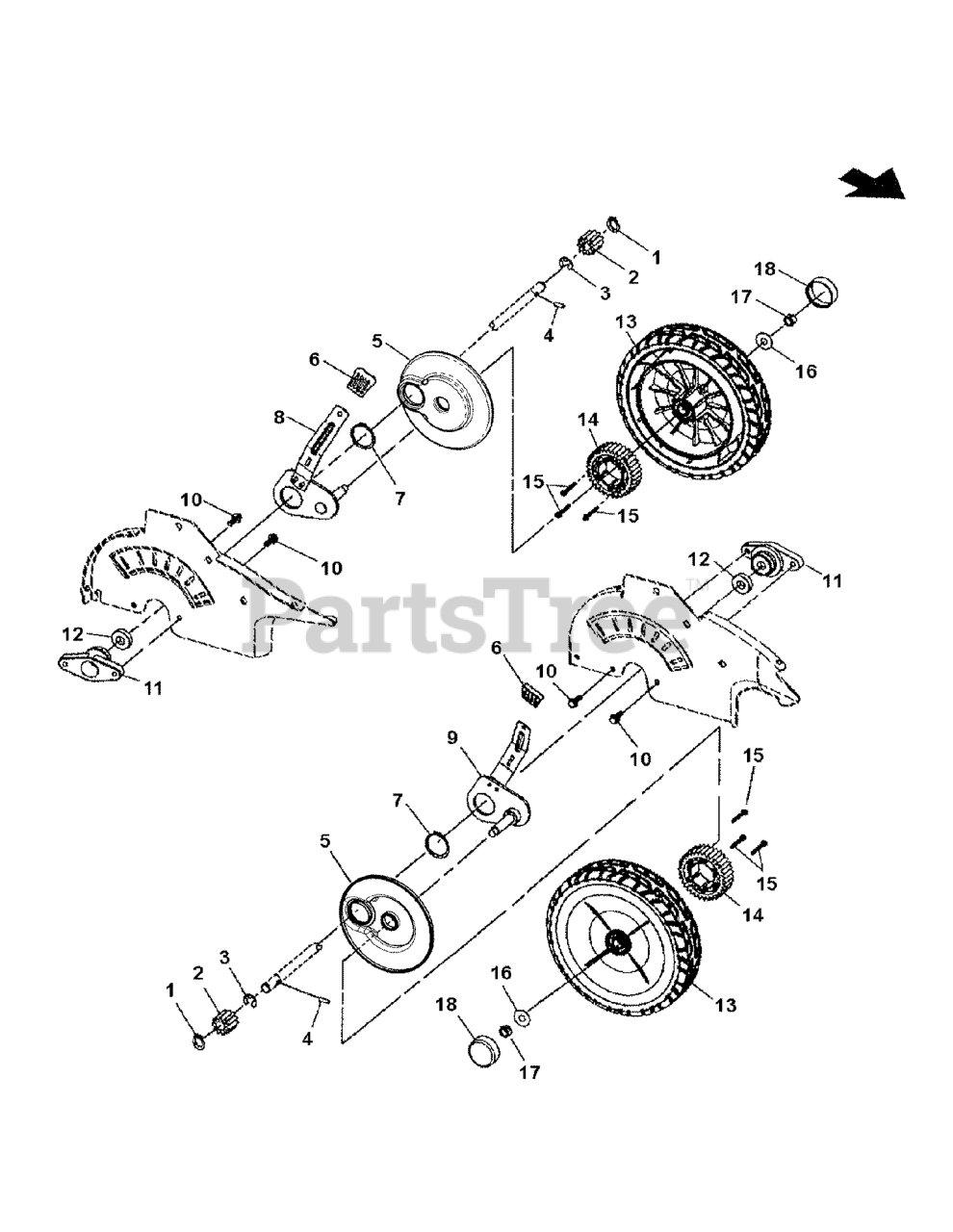

Rear Wheels Parts Diagram

  • Title

1

Murray 7027999

RETAINING RING
(Superseded to 7027999YP)

$4.49

$

In Stock, only 4 left!

0

2

Murray 7100820

GEAR, PINION
(Superseded to 7100820YP)

$

$

Not available

3

Murray 7014341

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

4

Murray 7100861

PIN, AXLE
(Superseded to 7100861YP)

$4.99

$

In Stock, only 1 left!

0

5

Murray 7101367

SHIELD, DUST, 21" WBM, RD
(Superseded to 7101367YP)

$7.49

$

In Stock, only 2 left!

0

6

Murray 7100633

GRIP, HT LATCH
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

7

Murray 7900010

SNAP RING, 1-3/8
(Superseded to 7900010YP)

$4.49

$

Usually ships in 2-12 days

0

8

Murray 7500273

ASSY, AXLE ARM, LEFT REAR
(Superseded to 7500273YP)

$88.99

$

In Stock, only 1 left!

0

9

Murray 7500274

ASSY, AXLE ARM, RIGHT REAR
(Superseded to 7500274YP)

$125.99

$

Usually ships in 2-12 days

0

10

Murray 7090699

HFLB, 1/4-20X3/4
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

11

Murray 7078214

HOUSING, AXLE BEARING
(Superseded to 7078214YP)

$

$

Not available

12

Murray 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 18

0

13

Murray 7500646

ASSY, WHEEL, W/BEARING 9" ST TRD
(Superseded to 7500646YP)

Note: (incl. two ball bearings, part no. 7101380)

$45.99

$

In Stock, Qty 14

0

14

Murray 7100914

GEAR, EXTERNAL WHEEL
(Superseded to 7100914YP)

$10.99

$

Usually ships in 2-12 days

0

15

Murray 7091196

HWST, #8 X 1-1/4, HI-LO
(Superseded to 7091196SM)

$4.99

$

Usually ships in 2-12 days

0

16

Murray M722604

WASHER, FLAT, 1" OD X .387 ID

$

$

Currently unavailable

17

Murray 7091585

HCLN, 3/8-16 YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

18

Murray 7101391

HUBCAP, ROUND, JD YELLOW
(Superseded to 7101391YP)

$4.49

$

In Stock, Qty 20+

0
