JS 45 (7800198) - John Deere 21" Walk-Behind Mower (2009) Front Wheels Parts Diagram

21" Walk-Behind Mower

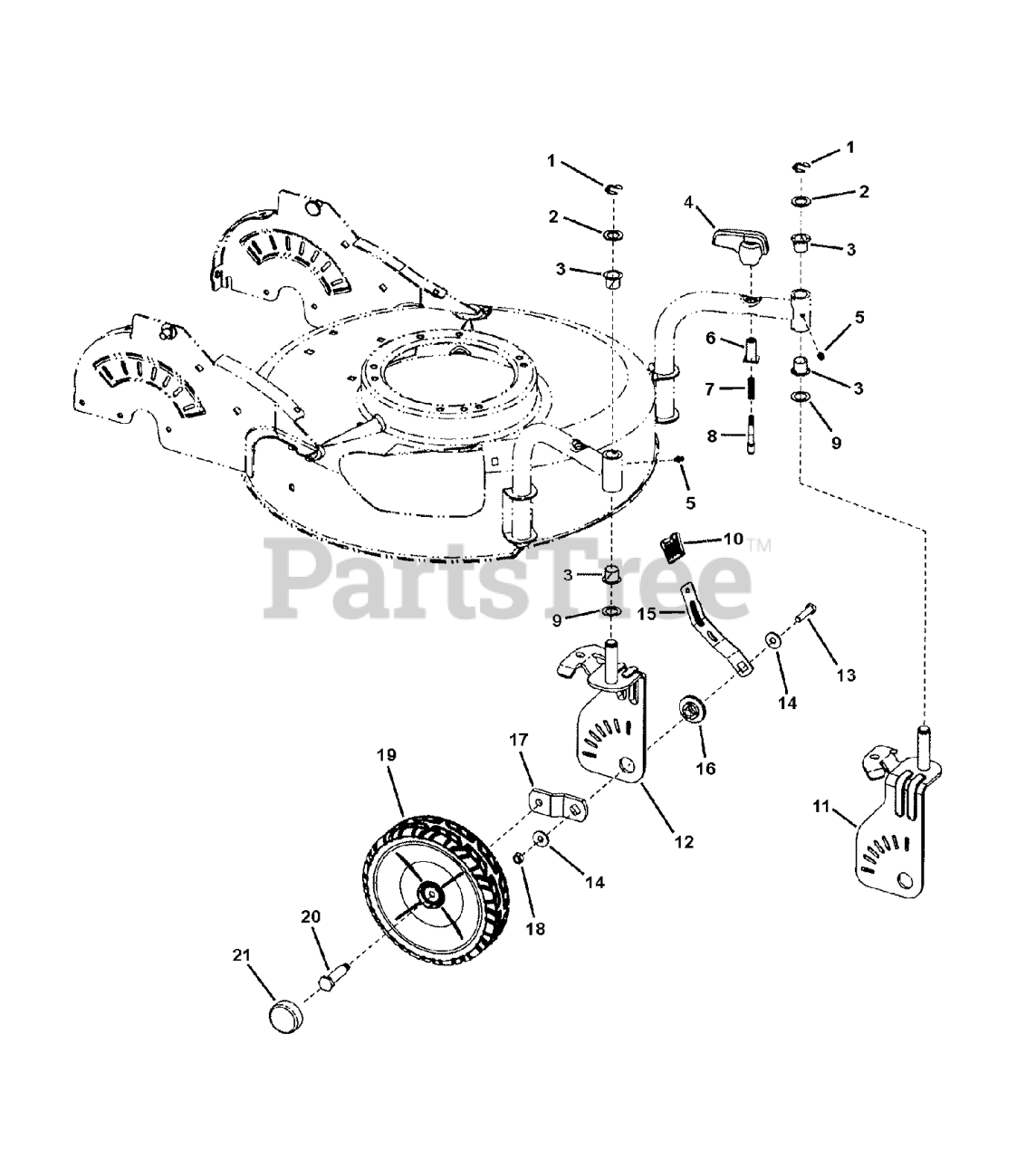

Front Wheels Parts Diagram

  • Title

1

Murray 1704420

RING, Klipring Ext.
(Superseded to 1704420SM)

Note: for .625 dia. Shaft

$4.99

$

In Stock, only 2 left!

0

2

Murray 7092021

WASHER, .64 x .99 x .025, Flat
(Superseded to 7092021YP)

$3.99

$

In Stock, only 1 left!

0

3

Murray 7046628

NYLINER, 5/8
(Superseded to 7046628YP)

$4.99

$

In Stock, only 3 left!

0

4

Murray 7101202

KNOB, Quick Release
(Superseded to 7101202YP)

$6.99

$

Usually ships in 2-12 days

0

5

Murray 7013864

LUBE FITTING, 3/16
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

6

Murray 7101199

BUSHING, Handle Pin
(Superseded to 7101199YP)

$6.99

$

Usually ships in 2-12 days

0

7

Murray 7101200

SPRING, Compression
(Superseded to 7101200YP)

$4.49

$

Usually ships in 2-12 days

0

8

Murray 7101198

PIN, Handle Adjust
(Superseded to 7101198YP)

$5.49

$

Usually ships in 2-12 days

0

9

Murray 7091628

WASHER, .64 x .99 x .05, Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

10

Murray 7100633

GRIP, Height Latch
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

11

Murray 7400293

WELDMENT, Swivel Wheel Brkt, LH
(Superseded to 7400293YP)

$61.99

$

Usually ships in 2-12 days

0

12

Murray 7400294

WELDMENT, Swivel Wheel Brkt, RH
(Superseded to 7400294YP)

$63.99

$

Usually ships in 2-12 days

0

13

Murray 7091527

SCREW, 5/16-18 X 1.25 Hex Head Cap, GR 5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

14

Murray 7900022

WASHER, .875 x .327 x .090, Flat
(Superseded to 7900022YP)

$3.49

$

In Stock, Qty 11

0

15

Murray 7100251

LEVER, Height Adjust, Swivel Wheel
(Superseded to 7100251YP)

$8.49

$

In Stock, only 4 left!

0

16

Murray 7100249

SPACER, Swivel Wheel Pivot
(Superseded to 7100249YP)

$7.99

$

In Stock, only 1 left!

0

17

Murray 7300432

AXLE PLATE, Swivel Wheel
(Superseded to 7300432YP)

$11.99

$

In Stock, only 1 left!

0

18

Murray 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

19

Murray 7500544

ASSY, WHEEL, 8 x 2 Idle, JD Tread, BB, Yellow
(Superseded to 7500544YP)

Note: (incl. 2 ball brgs, p/n 7101380)

$42.99

$

In Stock, Qty 12

0

20

Murray 7101484

AXLE, Swivel Wheel, 1-5/8
(Superseded to 7101484YP)

Note: (3/8-16 thread)

$15.99

$

Usually ships in 2-12 days

0

21

Murray 7101391

HUBCAP, Round, JD Yellow
(Superseded to 7101391YP)

$4.49

$

In Stock, Qty 20+

0
