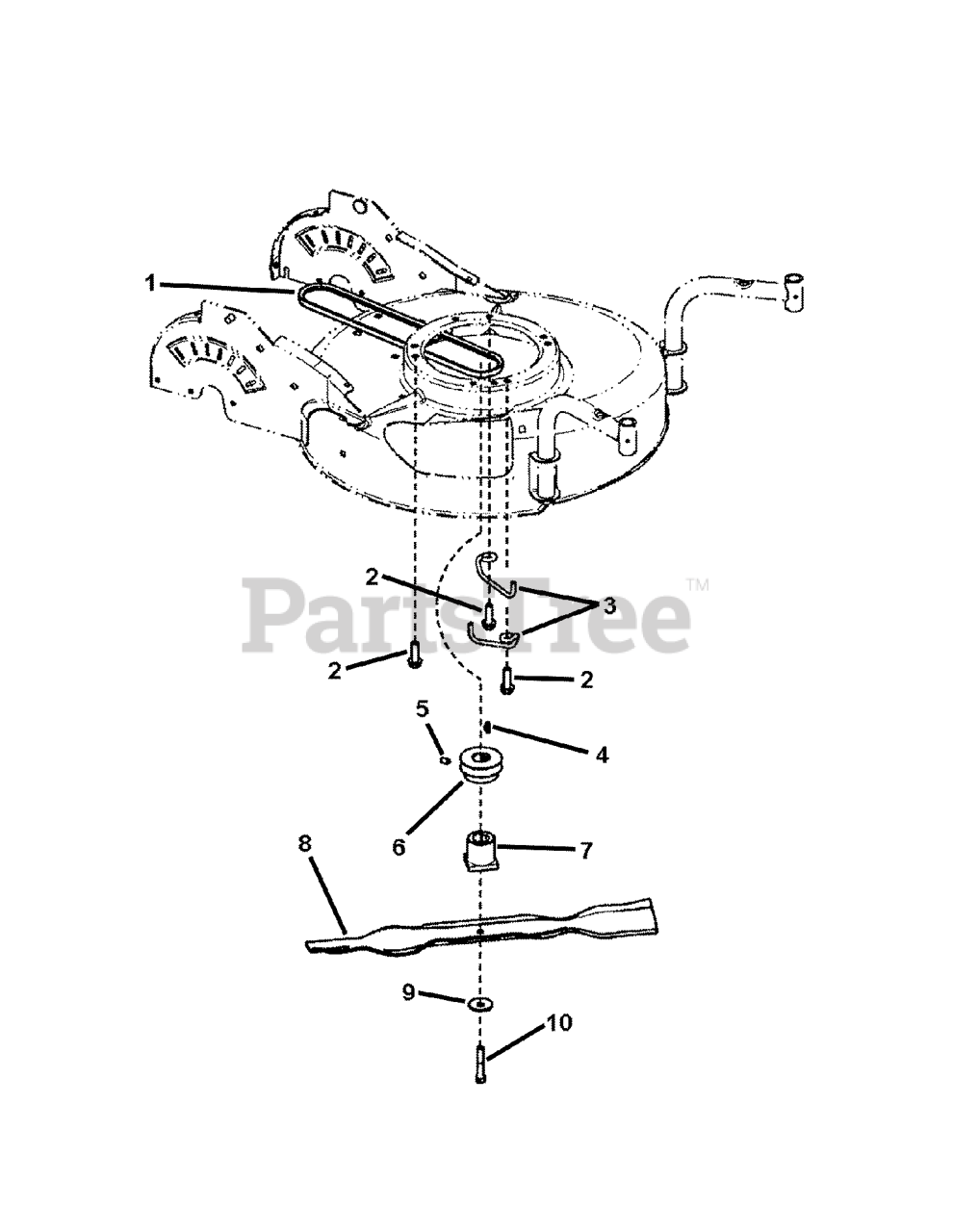

JS 45 (7800198) - John Deere 21" Walk-Behind Mower (2009) Blade and Adapter Parts Diagram

21" Walk-Behind Mower

Blade and Adapter Parts Diagram

  • Title

1

Murray 7100883

BELT, 3L, TRACTION DRIVE, 21" PIVOT HANDLE
(Superseded to 7100883YP)

$20.99

$

In Stock, only 1 left!

0

2

Murray 7900072

SCREW, 3/8-16 x 1-1/4" Hex Washer Self-Tap
(Superseded to 7900072YP)

$3.99

$

Usually ships in 2-12 days

0

3

Murray 7102900

GUIDE, BELT, JS45
(Superseded to 7102900YP)

$2.99

$

Usually ships in 2-12 days

0

4

Murray 7091214

KEY, #HP-506 HI-PRO
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

5

Murray 7092086

HRSS, 5/16-18X1/2
(Superseded to 7092086YP)

$4.99

$

Usually ships in 2-12 days

0

6

Murray 7100437

PULLEY, ENGINE, .9875 ID, 2.5" OD, 1.20" thick
(Superseded to 7100437YP)

$40.99

$

Usually ships in 2-12 days

0

7

Murray 7101414

HUB, BLADE, 21" WBM, RD, 2 POSITION
(Superseded to 7101414YP)

$16.99

$

In Stock, only 1 left!

0

8

Murray 7100242

BLADE, WAVE, 21" STEEL DECK
(Superseded to 7100242AYP)

$28.99

$

In Stock, only 1 left!

0

9

Murray 7012063

WASHER, CONE
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

10

Murray 7090167

HHCS, 3/8-24X2 GR5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0
