JS 28 (7800824) - John Deere 22" Walk-Behind Mower (2012) Wheels & 4-Point Height-Of-Cut Group (7502552) Parts Diagram

22" Walk-Behind Mower

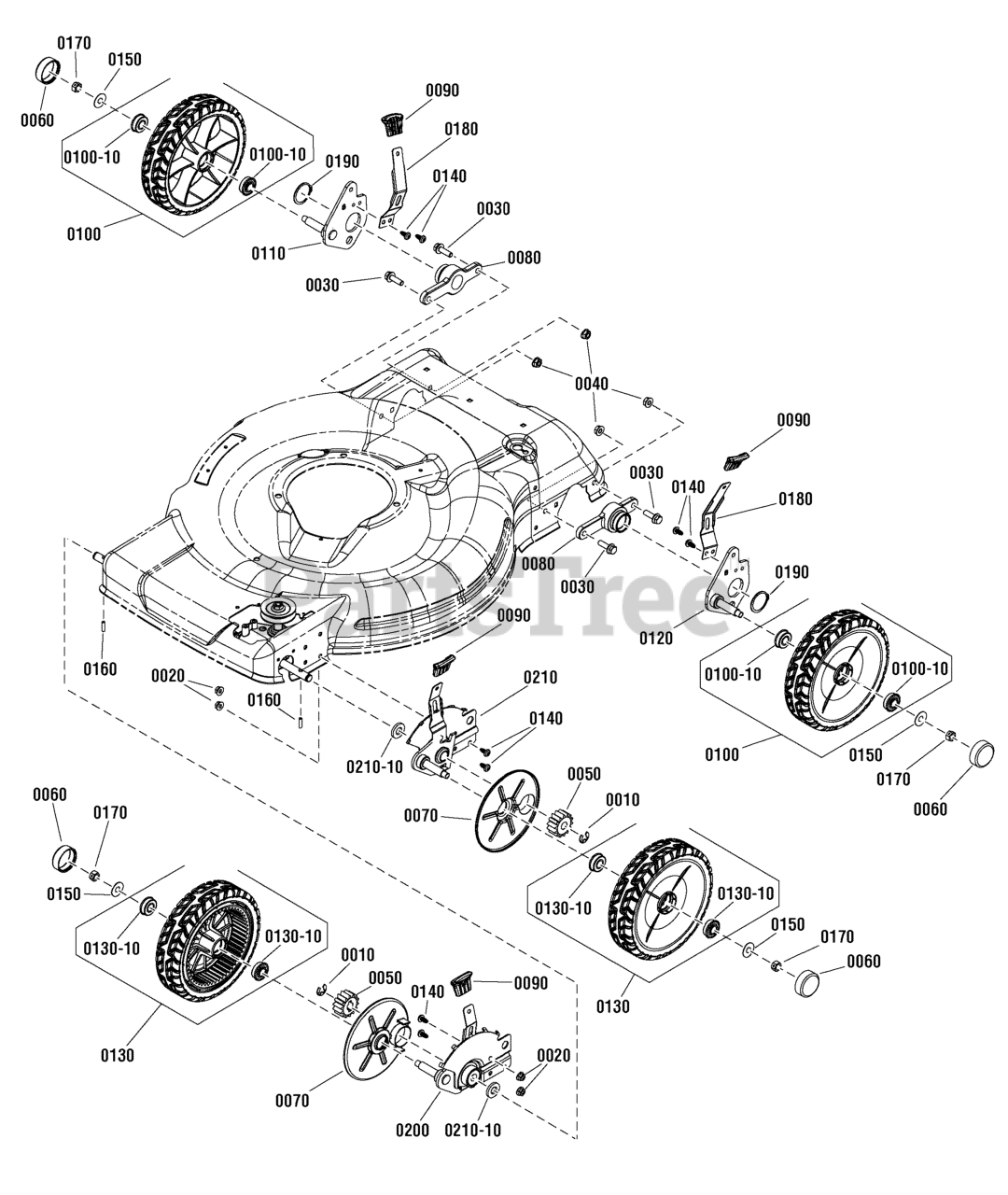

Wheels & 4-Point Height-Of-Cut Group (7502552) Parts Diagram

  • Title

0010

Murray 7014341YP

RETAINING RING, 1/4"
(Superseded to 703976)

Note: (Waldes No. 5133-50 or equivalent)

$4.49

$

In Stock, Qty 10

0

0020

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0030

Murray 7091591SM

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

0040

Murray 7091601SM

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 7101207YP

GEAR, Pinion

$8.49

$

In Stock, only 2 left!

0

0060

Murray 7101391YP

HUBCAP

$4.49

$

In Stock, Qty 20+

0

0070

Murray 7101402YP

SHIELD, Dust

$7.49

$

In Stock, only 2 left!

0

0080

Murray 7103290YP

HOLDER, Bearing

$13.99

$

Usually ships in 2-12 days

0

0090

Murray 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 9

0

0100

Murray 7500544YP

ASSEMBLY, Wheel, 8 x 2 Idle JD Tread

Note: (Incl. Ref. 0100-10)

$42.99

$

In Stock, Qty 12

0

0100-10

Murray 7101380YP

BEARING, Ball, 1-1/8 OD, Flange
(Superseded to 071579MA)

Note: (Included with Ref. No. 0100)

$40.99

$

In Stock, only 1 left!

0

0110

Murray 7501516YP

WELDMENT, Axle Plate, RR, 8"

$12.99

$

Usually ships in 2-12 days

0

0120

Murray 7501518YP

WELDMENT, Axle Plate, LR, 8"

$13.99

$

Usually ships in 2-12 days

0

0130

Murray 7501540YP

ASSEMBLY, Wheel, 8 x 2 Drive JD Tread

$39.99

$

In Stock, only 2 left!

0

0130-10

Murray 7101380YP

BEARING, Ball, 1-1/8 OD, Flange
(Superseded to 071579MA)

Note: (Incl. Ref. 0130-10)

$40.99

$

In Stock, only 1 left!

0

0140

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

Note: (Included with Ref. No. 0130)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0160

Murray 7101270YP

DRIVE PIN, .187 Dia. X 3/4"

$5.49

$

In Stock, only 2 left!

0

0170

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, GR 5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0180

Murray 7103550YP

LEVER, 4-point HOC

$8.49

$

Usually ships in 2-12 days

0

0190

Murray 7900010YP

RETAINING RING, 3/4"

$4.49

$

Usually ships in 2-12 days

0

0200

Murray 7600104YP

ASSEMBLY, HOC, RF, Propelled

Note: (Incl. Ref. 0210-10)

$

$

Not available

0210

Murray 7600105YP

ASSEMBLY, HOC, LF

Note: (Incl. Ref. 0210-10)

$82.99

$

In Stock, only 1 left!

0

0210-10

Murray 7078243YP

BEARING, Ball

Note: (Included with Ref. No. 0200 & 0210)

$10.99

$

In Stock, Qty 18

0
